EH2720ETTS-6.250M Overview

CMOS, Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 2.5Vdc 4 Pad 5.0mm x 7.0mm Ceramic Surface Mount (SMD) Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 2.5Vdc 4 Pad 5.0mm x 7.0mm Ceramic Surface Mount (SMD)

EH2720ETTS-6.250M Parametric

Parameter Name	Attribute value
Brand Name	Ecliptek
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	7039793991
Parts packaging code	SMD 5.0mm x 7.0mm
Contacts	4
Manufacturer packaging code	SMD 5.0mm x 7.0mm
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; BULK; TAPE
maximum descent time	6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	6.25 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
physical size	7.0mm x 5.0mm x 1.6mm
longest rise time	6 ns
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	60/40 %
Terminal surface	Nickel/Gold (Ni/Au)

EH2720ETTS-6.250M Preview

Ecliptek | EH27 Series Oscillator

http://www.ecliptek.com/oscillators/EH27/

Log On

| 714-433-1200 |

Email Customer Support

Home

Products

Quick Quote

My Parts List

Site Map

EH27 Series Oscillator

Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 2.5Vdc 4 Pad 5.0mm x 7.0mm Ceramic Surface Mount (SMD)

2011/65 +

2015/863

168 SVHC

Revision D 06/08/2012

Electrical Specifications

Nominal Frequency

1.000MHz to 200.000MHz

Some frequencies within this range may not be available.

Frequency Tolerance/Stability

(Inclusive of all conditions: Calibration Tolerance at 25°C, Frequency

Stability over the Operating Temperature Range, Supply Voltage

Change, Output Load Change, First Year Aging at 25°C, Shock, and

Vibration)

±100ppm Maximum

±50ppm Maximum

±25ppm Maximum

±20ppm Maximum

±5ppm/year Maximum

0°C to +70°C

-40°C to +85°C

2.5V

±5%

No Load

6mA Maximum

7mA Maximum

8mA Maximum

9mA Maximum

Aging at 25°C

Operating Temperature Range

Supply Voltage

Input Current (No Load)

from

1MHz to 25MHz

25.000001MHz to 75MHz

75.000001MHz to 100MHz

100.000001Hz to 200MHz

Output Voltage Logic High (V

)

= -8mA

90% of V

Minimum

= +8mA

10% of V

Maximum

Measured at 50% of Waveform

50 ±10(%)

50 ±5(%)

Measured at 20% to 80% of Waveform

6nSec Maximum from 1MHz to 50MHz

4nSec Maximum from 50.000001MHz to 75MHz

2nSec Maximum from 75.000001MHz to 200MHz

15pF Maximum

CMOS

Tri-State (High Impedance)

90% of V

Minimum or No Connect to Enable Output

10% of V

Maximum to Disable Output (High Impedance)

10 A Maximum (Pin 1 = Ground)

Fj=12kHz to 20MHz

20pSec Typical, 30pSec Maximum

Output Voltage Logic Low (V

)

Duty Cycle

Rise Time/Fall Time

Load Drive Capability

Output Logic Type

Pin 1 Connection

Tri-State Input Voltage (Vih and Vil)

Standby Current

RMS Phase Jitter

1 of 10

28-Jan-2016 1:03 PM

Ecliptek | EH27 Series Oscillator

http://www.ecliptek.com/oscillators/EH27/

Period Jitter (RMS)

Period Jitter (pk-pk)

Start Up Time

Storage Temperature

13pSec Typical

85pSec Typical, 100pSec Maximum

10mSec Maximum

-55°C to +125°C

2 of 10

28-Jan-2016 1:03 PM

Ecliptek | EH27 Series Oscillator

http://www.ecliptek.com/oscillators/EH27/

Mechanical Dimensions

All Dimensions in Millimeters

Pin 1: Tri-State

Pin 2: Case/Ground

Pin 3: Output

Pin 4: Supply Voltage

Marking Specifications

Line 1:

Line 2:

ECLIPTEK

XXXXXXM

XXXXXX = Nominal Frequency (5 Digits + Decimal)

M = Frequency unit of measure (MHz)

XXXXX

XXXXX = Ecliptek Manufacturing Identifier

Line 3:

3 of 10

28-Jan-2016 1:03 PM

Ecliptek | EH27 Series Oscillator

http://www.ecliptek.com/oscillators/EH27/

Environmental and Mechanical Specifications

ESD Susceptibility

Fine Leak Test

Flammability

Gross Leak Test

Mechanical Shock

Moisture Resistance

Moisture Sensitivity

Resistance to Soldering Heat

Resistance to Solvents

Solderability

Temperature Cycling

Vibration

Thermal Resistance (θ

)

Thermal Resistance (θ

)

MIL-STD-883, Method 3015, Class 1, HBM:1500V

MIL-STD-883, Method 1014, Condition A

UL94-V0

MIL-STD-883, Method 1014, Condition C

MIL-STD-883, Method 2002, Condition B

MIL-STD-883, Method 1004

J-STD-020, MSL 1

MIL-STD-202, Method 210, Condition K

MIL-STD-202, Method 215

MIL-STD-883, Method 2003

MIL-STD-883, Method 1010, Condition B

MIL-STD-883, Method 2007, Condition A

42°C/W (degrees Celsius per Watt)

15°C/W (degrees Celsius per Watt)

4 of 10

28-Jan-2016 1:03 PM

Ecliptek | EH27 Series Oscillator

http://www.ecliptek.com/oscillators/EH27/

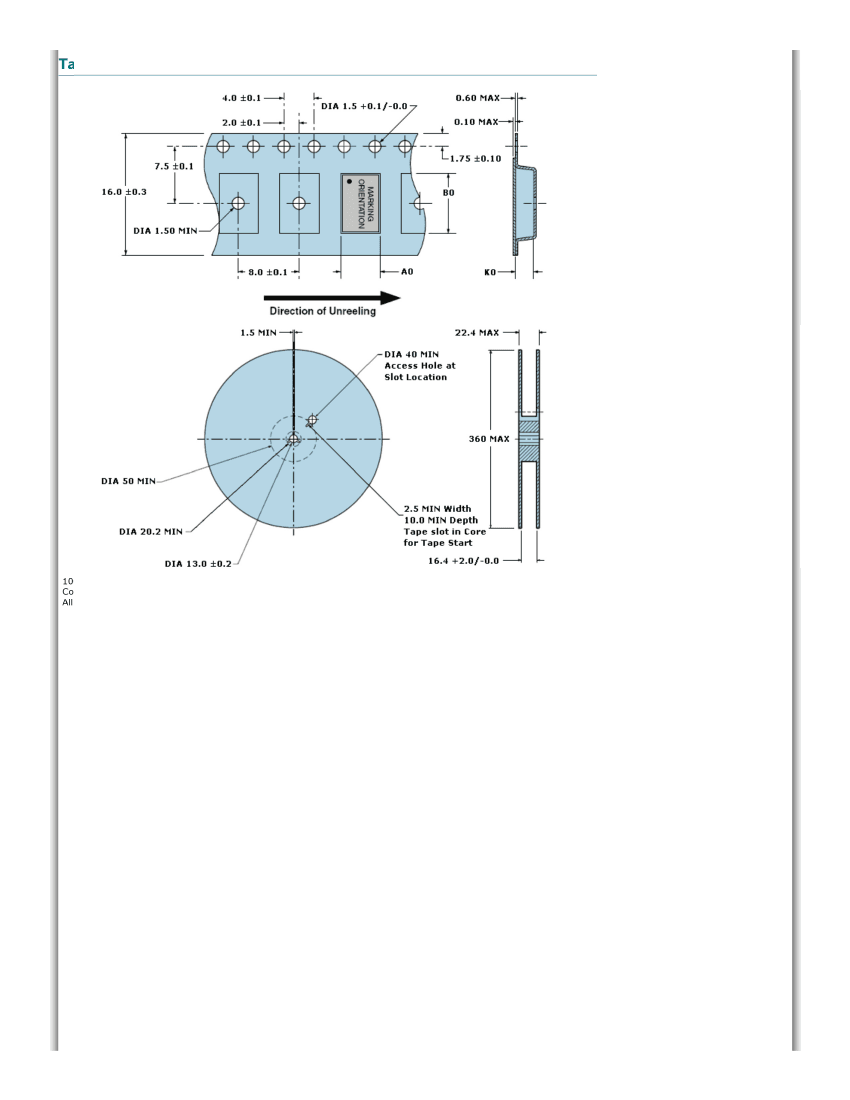

Tape & Reel Dimensions

1000 pieces per reel

Compliant to EIA-481

All Dimensions in Millimeters

5 of 10

28-Jan-2016 1:03 PM
