EH5620ETTTS-92.000MTR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EH5620ETTTS-92.000MTR

EH5620ETTTS-92.000MTR: DescriptionCRYSTAL OSCILLATOR, CLOCK, 92MHz, LVCMOS OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN; CategoryPassive components oscillator; File Size99KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EH5620ETTTS-92.000MTR Overview

CRYSTAL OSCILLATOR, CLOCK, 92MHz, LVCMOS OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

EH5620ETTTS-92.000MTR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1251964559
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	2 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	92 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVCMOS
Output load	15 pF
physical size	2.5mm x 2.0mm x 0.9mm
longest rise time	2 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

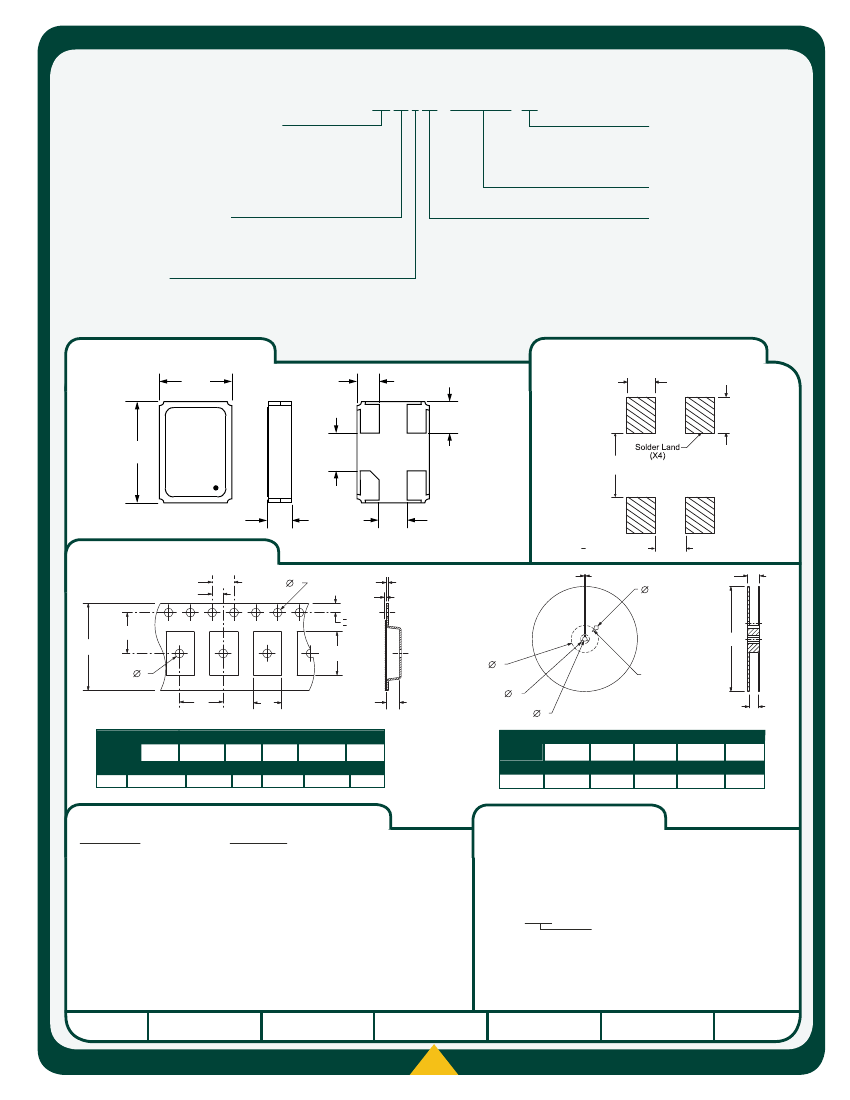

EH56

Series

• Crystal Clock Oscillators

• LVCMOS Output

• +3.3V Supply Voltage

• Tri-State Output Function

• 4 Pad Ceramic SMD Package

• Low Stand-by Current

• RoHS Compliant (Pb-Free)

EH56

H 0.9

L 2.5

W 2.0

OSCILLATOR

ELECTRICAL SPECIFICATIONS

Frequency Range

Some frequencies within this

range may not be available

Operating Temperature Range

Storage Temperature Range

Supply Voltage (V

)

Input Current (No Load)

2.600MHz to 200.000MHz

Frequency Tolerance / Stability

Some tolerance stability options

may not be available

Output Voltage Logic High (V

)

Output Voltage Logic Low (V

)

Rise Time / Fall Time

2.6000MHz to 25.000MHz

25.001MHz to 50.000MHz

50.001MHz to 166.000MHz

166.001MHz to 200.000MHz

Inclusive of all conditions: Calibration Tolerance at 25°C,

Frequency Stability over the Operating Temperature Range,

Supply Voltage Change, Output Load Change, First Year Aging

at 25°C, 260°C Reflow, Shock, and Vibration

Load Drive Capability

Output Logic Type

Duty Cycle

Tri-State Input Voltage

Standby Current

Aging (at 25°C)

Start Up Time

RMS Phase Jitter

Period Jitter (RMS)

Period Jitter (pk-pk)
