EH59 Series Oscillator
Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 1.8Vdc 4 Pad 2.0mm x 2.5mm Ceramic Surface Mount (SMD)
2011/65 +
2015/863
168 SVHC
Revision H 04/28/2014
Electrical Specifications
Nominal Frequency
2.600MHz to 133.000MHz
Some frequencies within this range may not be available.
Frequency Tolerance/Stability
(Inclusive of all conditions: Calibration Tolerance at 25°C, Frequency
Stability over the Operating Temperature Range, Supply Voltage
Change, Output Load Change, First Year Aging at 25°C, 260°C Reflow,
Shock, and Vibration)
±100ppm Maximum
±50ppm Maximum
±25ppm Maximum
±20ppm Maximum
±5ppm/year Maximum
0°C to +70°C
-40°C to +85°C
1.8V
DC
±5%
No Load
3.5mA Maximum over Nominal Frequency of 2.6MHz to 25MHz
4mA Maximum over Nominal Frequency of 25.000001MHz to 75MHz
5mA Maximum over Nominal Frequency of 75.000001MHz to 100MHz
8mA Maximum over Nominal Frequency of 100.000001MHz to 133MHz
I
OH
= -8mA
90% of V
DD
Minimum
I
OL
= +8mA
10% of V
DD
Maximum
Measured at 50% of Waveform
50 ±10(%)
50 ±5(%)
Measured at 20% to 80% of Waveform
6nSec Maximum from 2.6MHz to 50MHz
4nSec Maximum from 50.000001MHz to 75MHz
2nSec Maximum from 75.000001MHz to 133MHz
15pF Maximum
CMOS
Tri-State (High Impedance)
90% of V
DD
Minimum or No Connect to Enable Output
10% of V
DD
Maximum Disable Output (High Impedance)
10 A Maximum (Pin 1 = Ground)
Fj=12kHz to 20MHz
20pSec Typical, 30pSec Maximum
Aging at 25°C
Operating Temperature Range
Supply Voltage
Input Current
Output Voltage Logic High (V
OH
)
Output Voltage Logic Low (V
OL
)
Duty Cycle
Rise Time/Fall Time
Load Drive Capability
Output Logic Type
Pin 1 Connection
Tri-State Input Voltage (Vih and Vil)
Standby Current
RMS Phase Jitter
1 of 10
28-Jan-2016 1:54 PM
Ecliptek | EH59 Series Oscillator
http://www.ecliptek.com/oscillators/EH59/

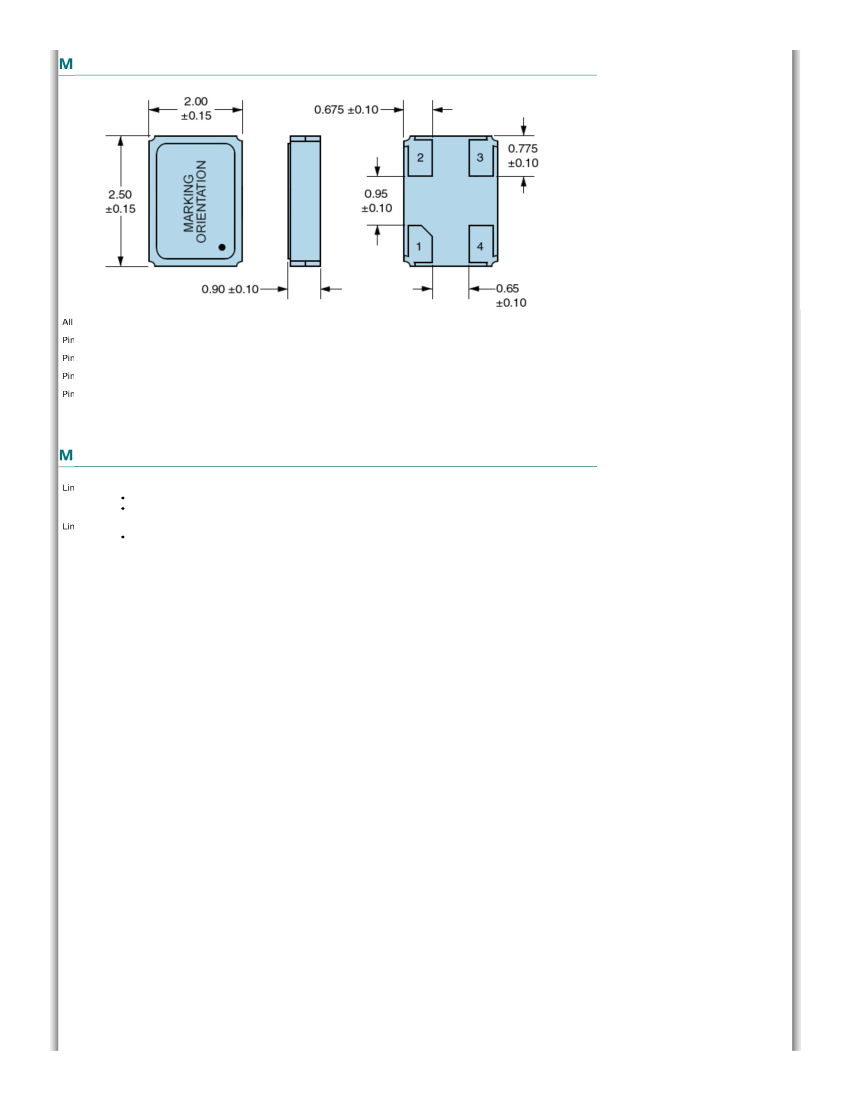

Mechanical Dimensions
All Dimensions in Millimeters
Pin 1: Tri-State
Pin 2: Case Ground
Pin 3: Output
Pin 4: Supply Voltage
Marking Specifications
Line 1:
E XXXXXX
E = Ecliptek Designator
XXXXXX = Nominal Frequency in MHz (5 digits + Decimal)
XXXXX
XXXXX = Ecliptek Manufacturing Code
Line 2:
3 of 10
28-Jan-2016 1:54 PM
Ecliptek | EH59 Series Oscillator
http://www.ecliptek.com/oscillators/EH59/
Environmental and Mechanical Specifications
ESD Susceptibility
Fine Leak Test
Flammability
Gross Leak Test
Mechanical Shock
Moisture Resistance
Moisture Sensitivity
Resistance to Soldering Heat
Resistance to Solvents
Solderability
Temperature Cycling
Vibration
Thermal Resistance (θ
JA
)
Thermal Resistance (θ
JC
)
MIL-STD-883, Method 3015, Class 1, HBM:1500V
MIL-STD-883, Method 1014, Condition A
UL94-V0
MIL-STD-883, Method 1014, Condition C
MIL-STD-883, Method 2002, Condition B
MIL-STD-883, Method 1004
J-STD-020, MSL 1
MIL-STD-202, Method 210, Condition K
MIL-STD-202, Method 215
MIL-STD-883, Method 2003
MIL-STD-883, Method 1010, Condition B
MIL-STD-883, Method 2007, Condition A
39°C/W (degrees Celsius per Watt)
13°C/W (degrees Celsius per Watt)
4 of 10
28-Jan-2016 1:54 PM
