1-1971776-3 datasheet, PDF - EEWORLD Datasheet

1-1971776-3: DescriptionPTL 2X3 PLUG HSG STD TEMP KEY A NAT; CategoryThe connector; File Size350KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1-1971776-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-1971776-3	-	-	View	Buy Now

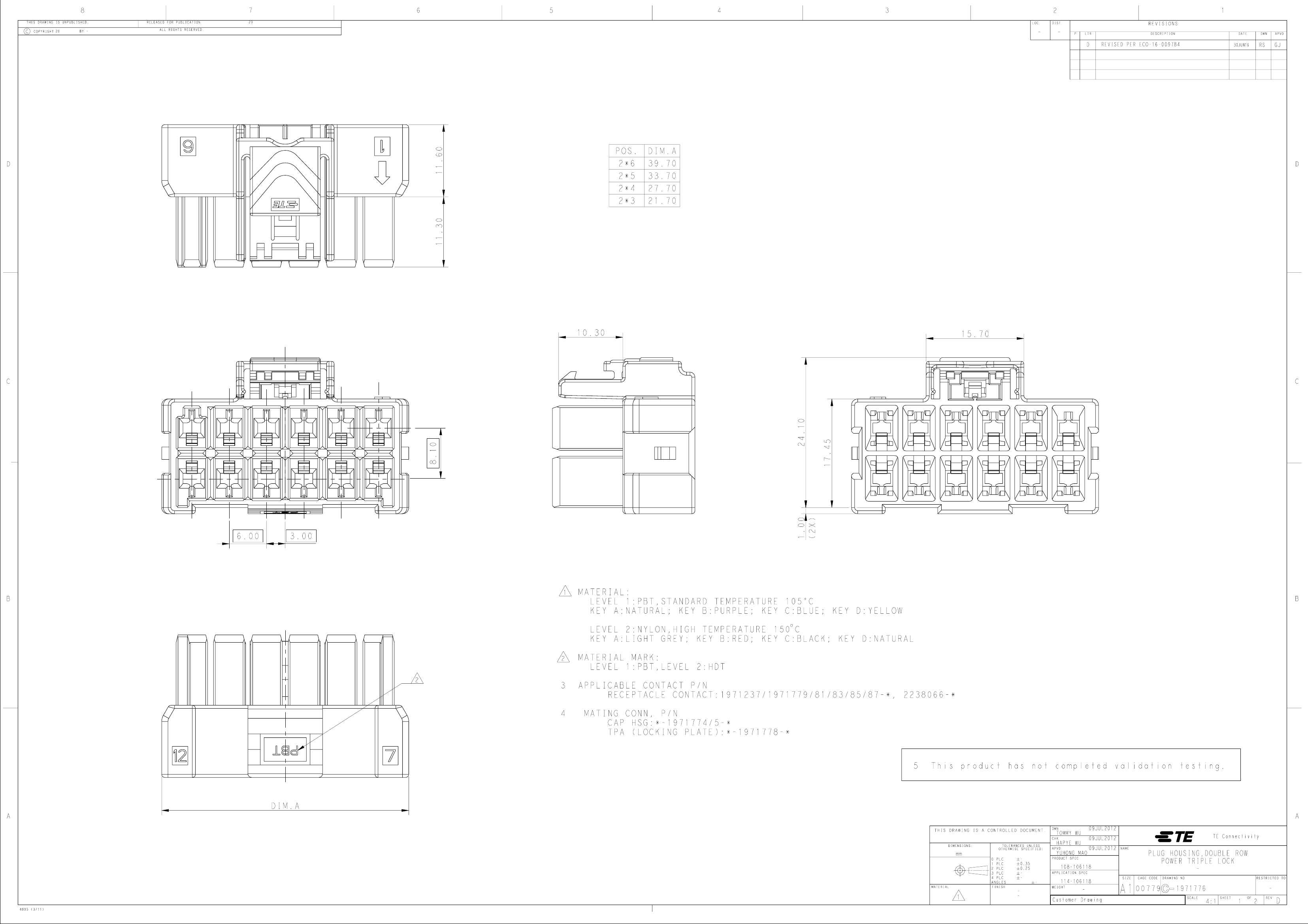

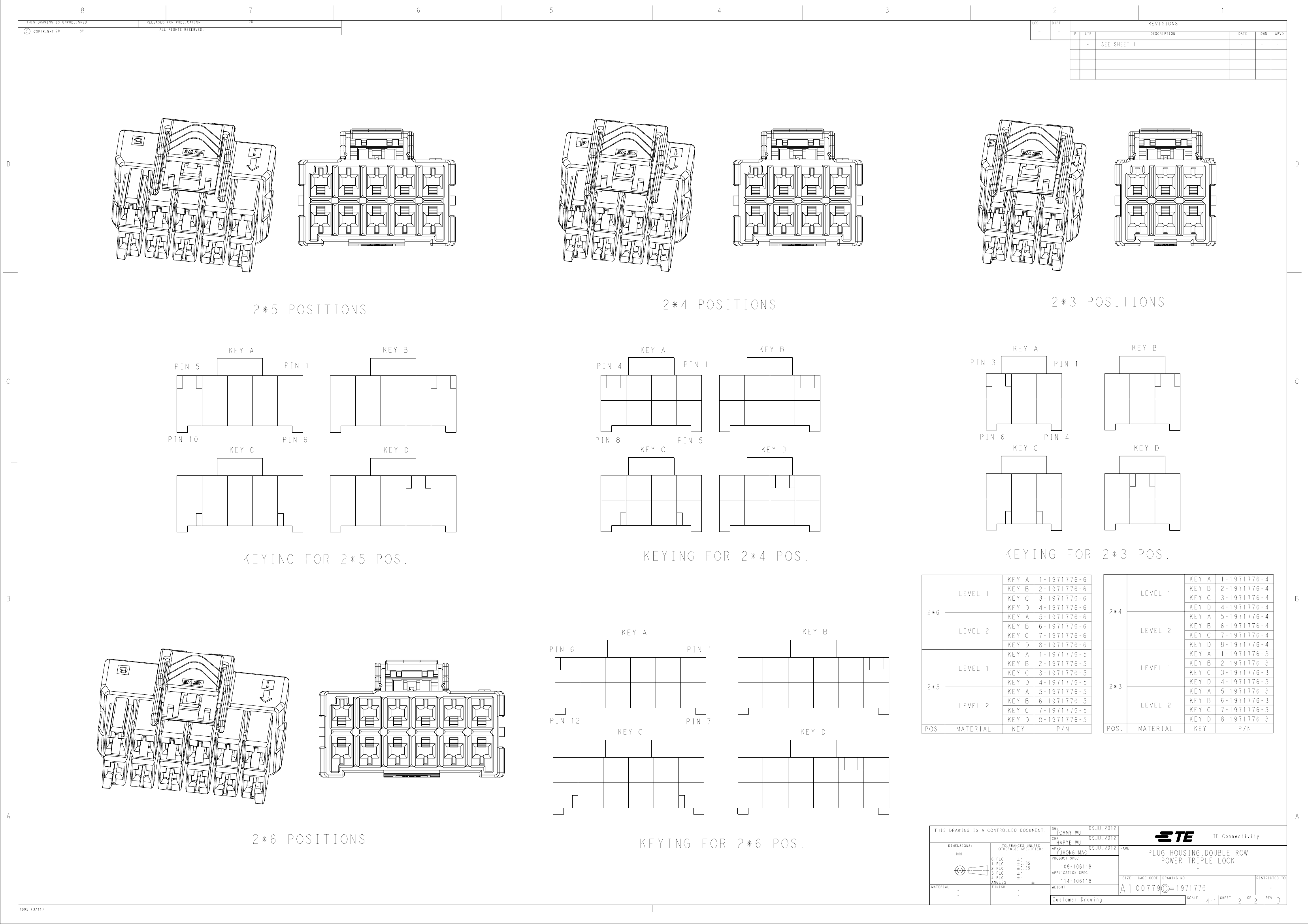

PTL 2X3 PLUG HSG STD TEMP KEY A NAT

Parameter Name	Attribute value
Housing type	plug
Connector System	line to line
Sealable	no
Connectors and terminals terminate to	Wires and cables
Terminal type	female end
Number of Positions	6
Number of power supply locations	6
Rows	2
Line spacing	8.1 mm [ .319 in ]
keying	A
Operating voltage (VAC)	600
Operating voltage (VDC)	600
Terminal retention	Withou
Terminal layout	matrix
Cable termination method	crimp
Panel mount features	Without
Connector mounting type	Cable installation
Centerline (Pitch)	6 mm [ .236 in ]
UL fire rating	UL 94V-0
Shell color	Natural
Shell material	PBT GF
Outgoing angle	Straight
Working group temperature range	-55 – 105 °C [ -67 – 221 °F ]
Circuit Application	Powe
Circuit identification characteristics	with
Glow Wire Ratings	Standard parts - non-glow wire
Agencies/Standards	UL
Organization/Standard Number	E28476
UL rating	Recognized
Encapsulation method	carton
Applicable to	CPA, receptacle housing, receptacle (socket) terminal, terminal locking tab

	1-1971776-3	1-1971776-4
Description	PTL 2X3 PLUG HSG STD TEMP KEY A NAT	PTL 2X4 PLUG HSG STD TEMP KEY A NAT
Housing type	plug	plug
Connector System	line to line	line to line
Sealable	no	no
Connectors and terminals terminate to	Wires and cables	Wires and cables
Terminal type	female end	female end
Number of Positions	6	8
Number of power supply locations	6	8
Rows	2	2
Line spacing	8.1 mm [ .319 in ]	8.1 mm [ .319 in ]
keying	A	A
Operating voltage (VAC)	600	600
Operating voltage (VDC)	600	600
Terminal retention	Withou	Withou
Terminal layout	matrix	matrix
Cable termination method	crimp	crimp
Panel mount features	Without	Without
Connector mounting type	Cable installation	Cable installation
Centerline (Pitch)	6 mm [ .236 in ]	6 mm [ .236 in ]
UL fire rating	UL 94V-0	UL 94V-0
Shell color	Natural	Natural
Shell material	PBT GF	PBT GF
Outgoing angle	Straight	Straight
Working group temperature range	-55 – 105 °C [ -67 – 221 °F ]	-55 – 105 °C [ -67 – 221 °F ]
Circuit Application	Powe	Powe
Circuit identification characteristics	with	with
Glow Wire Ratings	Standard parts - non-glow wire	Standard parts - non-glow wire
Agencies/Standards	UL	UL
Organization/Standard Number	E28476	E28476
UL rating	Recognized	Recognized
Encapsulation method	carton	carton
Applicable to	CPA, receptacle housing, receptacle (socket) terminal, terminal locking tab	CPA, receptacle housing, receptacle (socket) terminal, terminal locking tab
