662-009-664-036 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 662-009-664-036

662-009-664-036: DescriptionD Subminiature Connector,; CategoryThe connector The connector; File Size397KB，3 Pages; ManufacturerEDAC

Download Datasheet Parametric View All

662-009-664-036 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	662-009-664-036	-	-	View	Buy Now

662-009-664-036 Overview

D Subminiature Connector,

662-009-664-036 Parametric

Parameter Name	Attribute value
Objectid	8366987698
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8
Board mount options	SPLIT BOARD LOCK
body width	1.244 inch
subject depth	0.772 inch
body length	1.213 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
maximum insertion force	4.45 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE POLYESTER
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Plug information	MULTILE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2+2
Number of rows loaded	2+2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.84/3.92 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	MIL; UL
Shell surface	NICKEL
Shell material	STEEL
Housing size	1/E
Terminal length	0.122 inch
Terminal pitch	2.77 mm
Termination type	SOLDER
Total number of contacts	18
UL Flammability Code	94V-0
Evacuation force-minimum value	0.28 N

Preview

Download Datasheet

View All

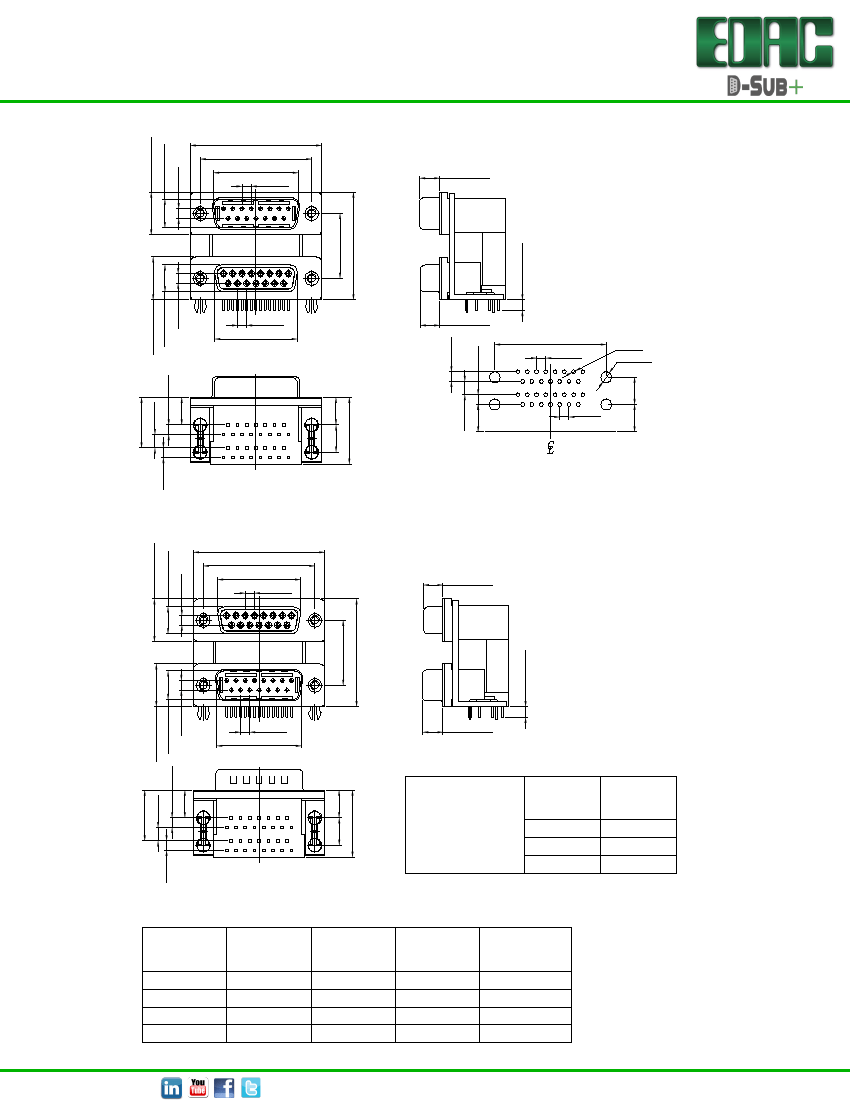

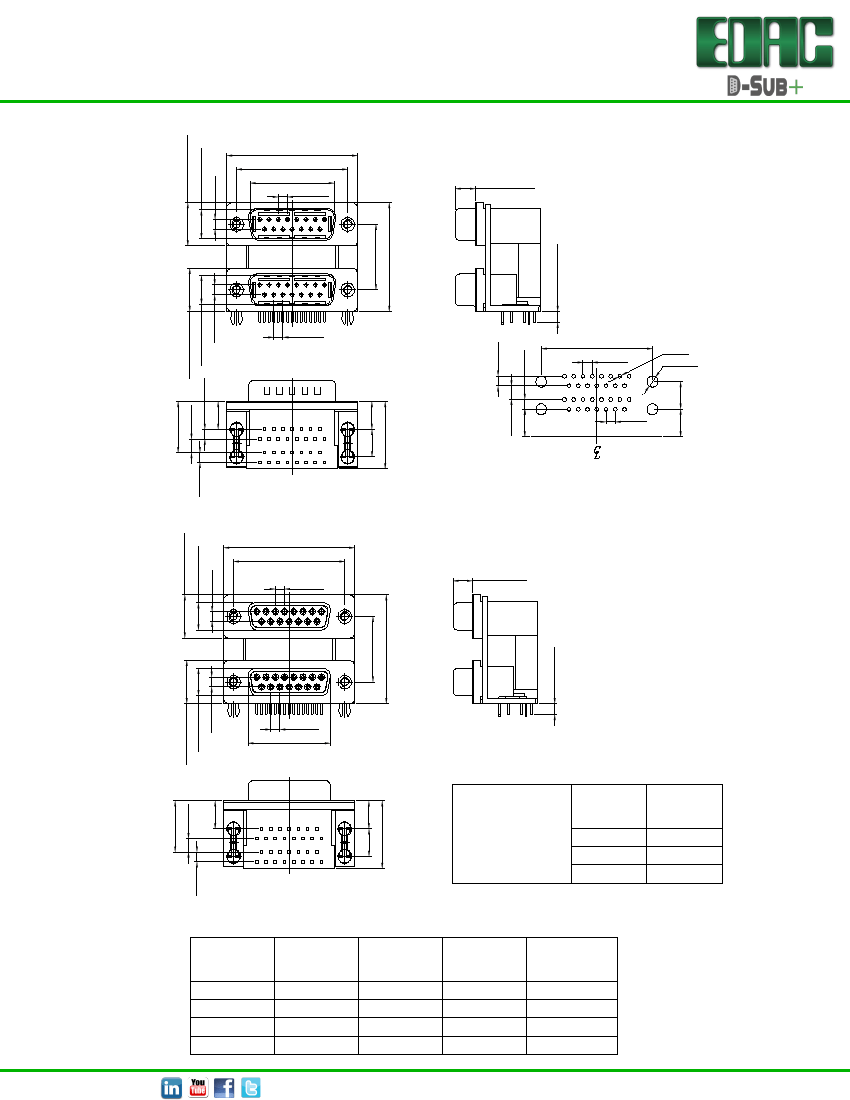

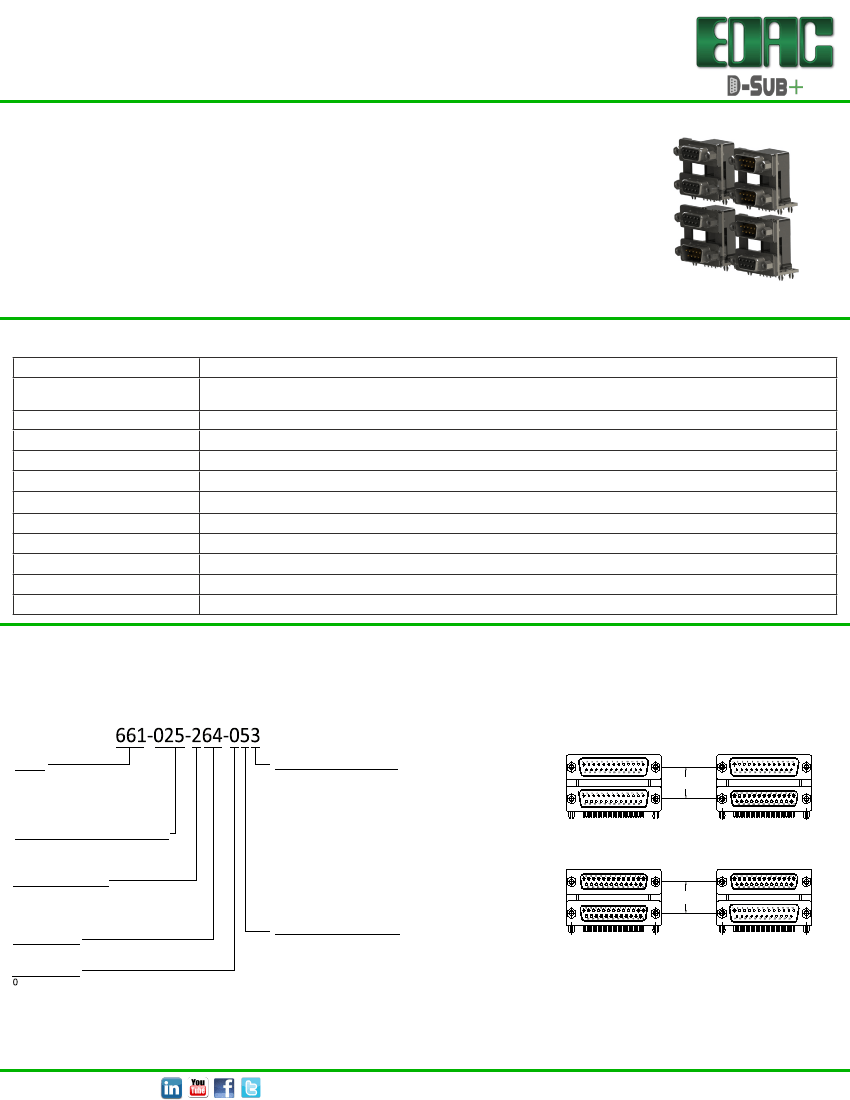

661/662/663/664

SERIES

D-Sub Connectors: Dual Port, Right Angle

Features:

•

Two contact rows per connector with right angle bend

0.109”(2.77mm) contact spacing x 0.112”(2.84mm) row spacing

Plug and receptacle in 9, 15, 25 or 37 contact sizes

Pin and socket contact mating design with P.C. tail termination

Metal shell provides EMI/RFI shielding, plug shell indents provide grounding and additional mating retention

Board mounting features include grounding bracket with threaded hole or boardlocks for exceptional retention to

P.C. board

Flange mounting options for panel mount or connector mating include through hole, threaded inserts and

threaded standoffs

D-shaped connector mating outline provides polarization

Design based on requirements of MIL-C-24038, EIA RS-232 and RS-449

Additional grounding features or mounting options - contact customer service at customerservice@edac.net

Specifications:

Insulator Material

Contact Material

Contact Plating

Ferrite Specs:

Shell Material

Current Rating

Contact Resistance

Insulation Resistance

Dielectric Withstanding Voltage

Operating Temperature

Insertion Force

Withdrawal Force

Thermoplastic Polyester, UL 94V-0, Chemical Resistant, Color: Black

Plug (Pins): Brass

Receptacle (Socket): Brass or Phosphor Bronze

Selective Gold (See Ordering Code) over Nickel for the Mating Area, Tin Plating for Tail Area

20dB MIN @30 MHz, 30dB MIN @50 MHz, and 50dB MIN @100 MHz

Nickel Plated Steel

3 amps

25 Milliohms maximum

5000 megaohms minimum

1000 V AC rms at Sea Level

-55°C To +85°C

16 oz (4.45 N) Maximum Per Contact Position

1 oz (0.28 N) Minimum Per Contact Position

Ordering Code:

661 SERIES

PLUG OVER PLUG

663 SERIES

PLUG OVER RECEPTACLE

SERIES:

661: PLUG OVER PLUG

662: RECEPTACLE OVER RECEPTACLE

663: PLUG OVER RECEPTACLE

664: RECEPTACLE OVER PLUG

NO. OF CONTACTS (PER CONNECTOR):

009 - 9 CONTACTS 025 - 25 CONTACTS

015 - 15 CONTACTS 037 - 37 CONTACTS

CONTACT FINISH CODE:

2 - GOLD FLASH PLATING

3 - 15 MICROINCHES OF GOLD PLATING

6 - 30 MICROINCHES OF GOLD PLATING

CONTACT CODE:

64 - DUAL PORT RIGHT ANGLE BEND CONTACT

EDAC INTERNAL:

FLANGE MOUNTING OPTIONS:

1- .625"(15.88MM) M3 THREADED INSERT

2 - .625"(15.88MM) #4-40 UNC THREADED INSERT

3 - .625"(15.88MM) #4-40 UNC THREADED HEX STANDOFF

4 - .625"(15.88MM) .125" CLEAR HOLE INSERT

A - .750"(19.05MM) M3 THREADED INSERT

5 - .750"(19.05MM) #4-40 UNC THREADED INSERT

6 - .750"(19.05MM) #4-40 UNC THREADED HEX STANDOFF

7 - .750"(19.05MM) .125" CLEAR HOLE INSERT

C - .900"(22.86MM) M3 THREADED INSERT

8 - .900"(22.86MM) #4-40 UNC THREADED INSERT

9 - .900"(22.86MM) #4-40 UNC THREADED HEX STANDOF

0 - .900"(22.86MM) .125" CLEAR HOLE INSERT

BOARD GROUNDING FEATURE:

0 - NONE

3 - TWO PRONG BOARDLOCKS

4 - FOUR PRONG BOARDLOCKS

5 - #4-40 THREADED HOLE

VERTICAL SPACING

662 SERIES

RECEPTACLE OVER RECEPTACLE

664 SERIES

RECEPTACLE OVER PLUG

VERTICAL SPACING

www.edac.net

customerservice@edac.net
