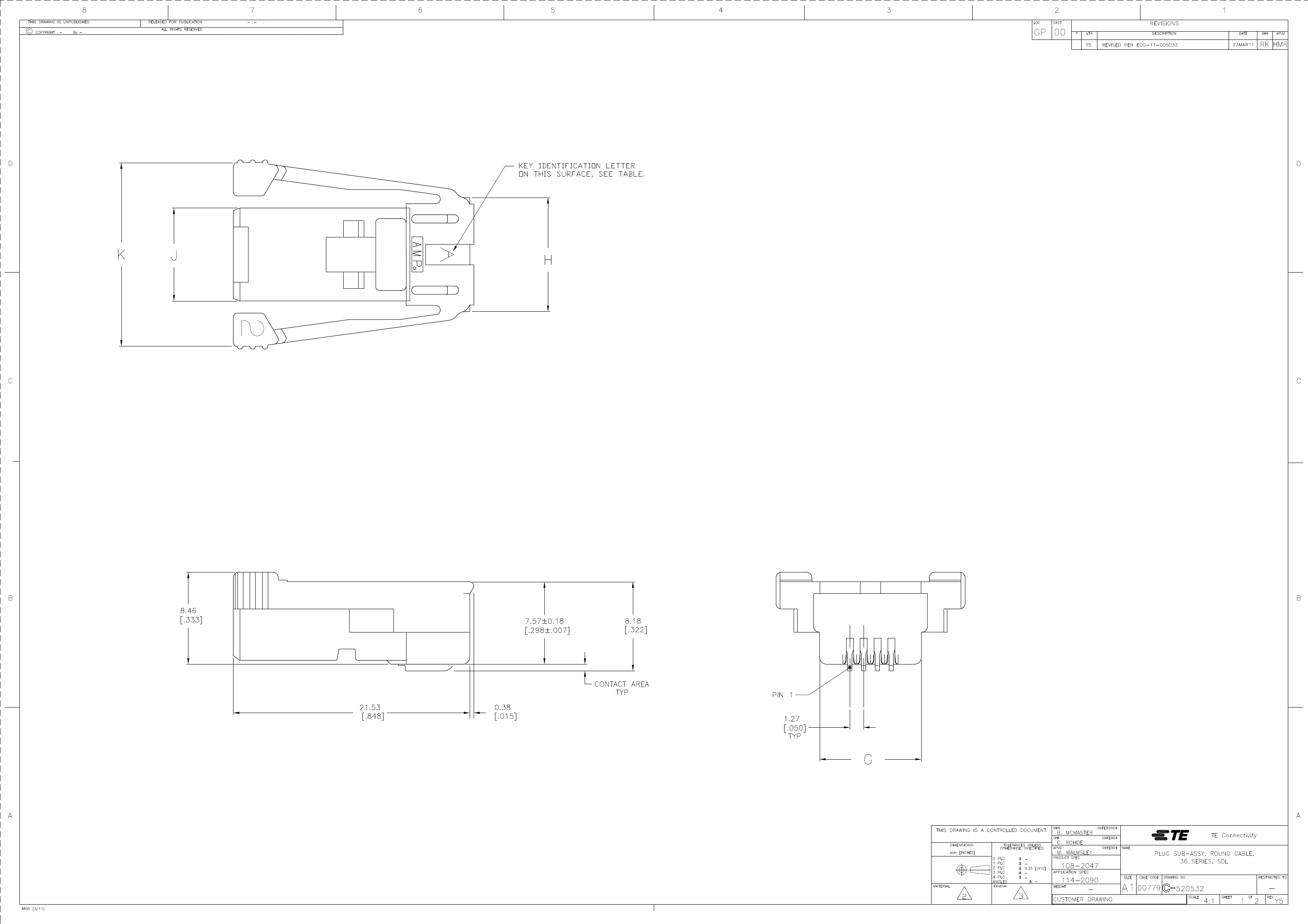

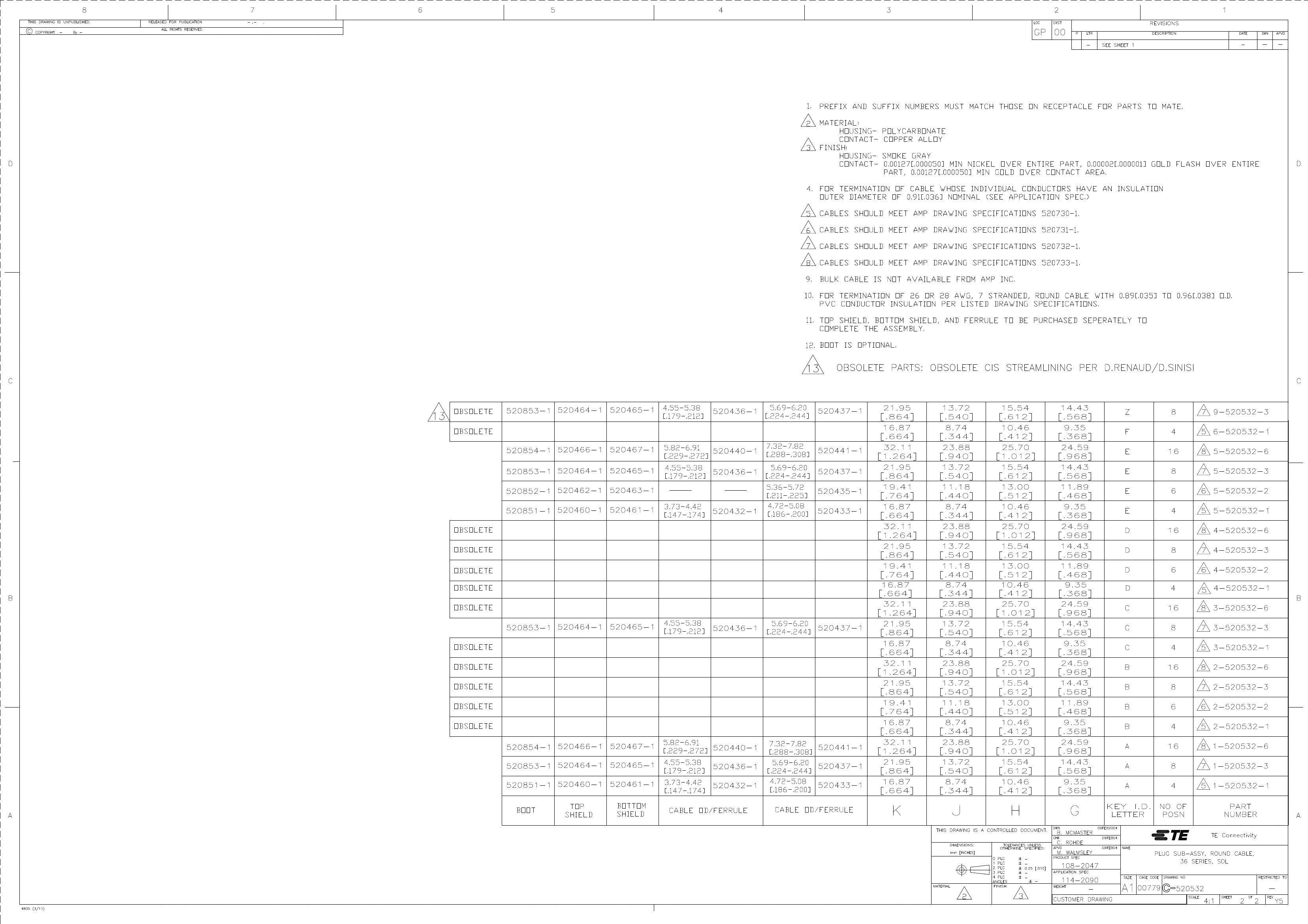

5-520532-3: Description8 SDL RND PLUG ASSY 36 SERIES; CategoryThe connector The connector; File Size213KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5-520532-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-520532-3	-	-	View	Buy Now

5-520532-3 Overview

8 SDL RND PLUG ASSY 36 SERIES

5-520532-3 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Factory Lead Time	9 weeks 2 days
body width	0.298 inch
subject depth	0.848 inch
body length	0.612 inch
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact point gender	MALE
contact mode	RECTANGULAR
empty shell	NO
Filter function	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of connectors	ONE
Number of ports	1
Number of rows loaded	1
Options	GENERAL PURPOSE
Shell material	POLYCARBONATE
Termination type	IDC
Total number of contacts	8
UL Flammability Code	94V-2
Base Number Matches	1

Preview

Download Datasheet

View All

5-520532-3 Related Products

	5-520532-3	5-520532-1	1-520532-6	5-520532-2	1-520532-1
Description	8 SDL RND PLUG ASSY 36 SERIES	4 SDL RND PLUG ASSY 36 SERIES	16 SDL RND PLUG ASSY 36 SERIES	6 SDL RND PLUG ASSY 36 SERIES	4 SDL RND PLUG ASSY 36 SERIES
Brand Name	AMP	AMP	AMP	AMP	AMP
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compli	compliant	compli	compliant
Factory Lead Time	9 weeks 2 days	9 weeks 2 days	20 weeks	14 weeks	17 weeks 5 days
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE
empty shell	NO	NO	YES	NO	YES
Filter function	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYCARBONATE	STEEL	STEEL	POLYCARBONATE	STEEL
Termination type	IDC	IDC	IDC	IDC	IDC
Total number of contacts	8	4	16	6	4
UL Flammability Code	94V-2	94V-2	94V-2	94V-2	94V-2
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-
Number of connectors	ONE	ONE	ONE	-	ONE
Number of ports	1	1	1	-	1
Base Number Matches	1	1	-	1	-
Insulator color	-	GRAY	SMOKE-GRAY	-	SMOKE-GRAY
insulator material	-	GLASS FILLED POLYCARBONATE	GLASS FILLED POLYCARBONATE	COPPER ALLOY	GLASS FILLED POLYCARBONATE
Plating thickness	-	50u inch	50u inch	-	50u inch
Guideline	-	CSA, UL	CSA, UL	-	CSA, UL
Shell surface	-	TIN	TIN	-	TIN
Contact to complete cooperation	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact material	-	-	NOT SPECIFIED	COPPER ALLOY	NOT SPECIFIED
DIN compliance	-	-	NO	NO	NO
IEC compliance	-	-	NO	NO	NO
MIL compliance	-	-	NO	NO	NO
