0.156MHZXO32100UCT datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 0.156MHZXO32100UCT

0.156MHZXO32100UCT: DescriptionHCMOS/LSTTL Output Clock Oscillator,; CategoryPassive components oscillator; File Size187KB，2 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

0.156MHZXO32100UCT Overview

HCMOS/LSTTL Output Clock Oscillator,

0.156MHZXO32100UCT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7079598346
Reach Compliance Code	compliant
YTEOL	2
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TR, 7 INCH
maximum descent time	7 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	0.156 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	HCMOS/LSTTL
Output load	15 pF
physical size	3.2mm x 2.5mm x 1.0mm
longest rise time	7 ns
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

EURO

QUARTZ

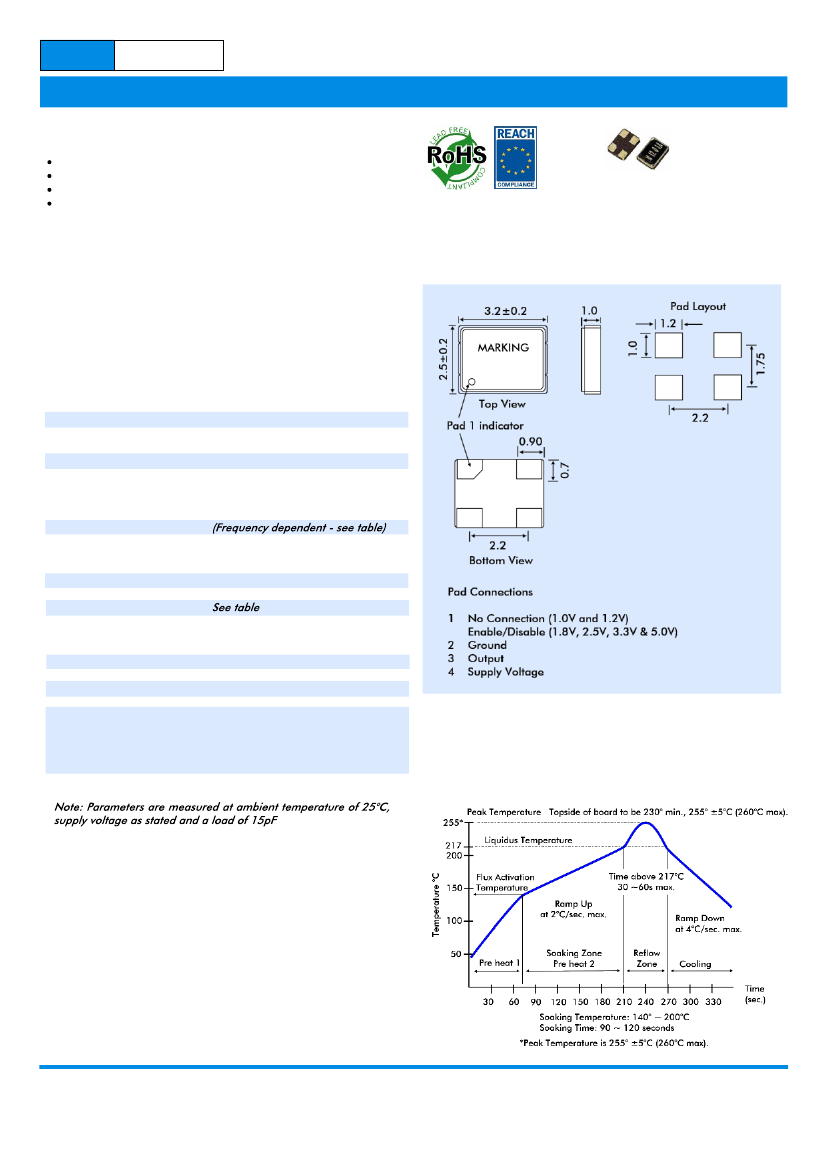

3.2 x 2.5 x 1.0mm SMD HCMOS

FEATURES

Ultra-miniature 3.2 x 2.5 x 1.0mm package

Frequency Range 312kHz to 160MHz

Tristate (Enable/Disable) function as standard

Supply voltage 1.0, 1.2, 1.5, 1.8, 2.5, 3.3 or 5.0 Volts

XO32 Series Oscillators

312kHz to 160MHz

Page

1 of 2

DESCRIPTION

XO32 ultra-miniature oscillators consist of a TTL/CMOS-compatible

hybrid circuit and a miniature quartz crystal packaged in a low-profile,

industry-standard ceramic package. The package provides a fully

specified clock oscillator with a very small footprint.

OUTLINE & DIMENSIONS

SPECIFICATION

Frequency Range:

Supply Voltage:

Output Logic:

Frequency Stability

0° to +50°C:

-20° to +70°C:

-40 to +85°C:

Rise/Fall Time:

Output Voltage:

HIGH ‘1’:

LOW ‘0’:

Output Load

Duty Cycle:

Supply Current:

Operating Temperature

Commercial:

Industrial:

Storage Temperature:

Start-up Time:

Ageing:

Phase Jitter RMS:

Tristate Function (Pad 1):

312kHz to 160.0MHz

1.0, 1.2, 1.5, 1.8, 2.5, 3.3 Volts±5%

or 5.0 Volts ±10%

HCMOS/LSTTL

from ±10ppm

from ±15ppm

from ±25ppm

90%Vdd minimum

10%Vdd maximum

15pF

50%±5% typical

Packaging:

-10° to +70°C

-40° to +85°C

-55 to +105°C

10ms max.

±5ppm max. in first year at 25°C

10ps typical

Enable/Disable function is standard for

XO32. Output (Pad 3) is active if Pad 1

is not connected or Pad 1 is 'HIGH'.

Output is high impedance when 'LOW'

or GROUND is applied to Pad 1.

8mm tape, 178mm reel, 1k pieces

SOLDER TEMPERATURE PROFILE

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
