RK73B1ELTD910J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RK73B1ELTD910J

RK73B1ELTD910J: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.063W, 91ohm, 50V, 5% +/-Tol, -200,200ppm/Cel, 0402,; CategoryPassive components The resistor; File Size83KB，2 Pages; ManufacturerKOA

Download Datasheet Parametric View All

RK73B1ELTD910J Overview

Fixed Resistor, Metal Glaze/thick Film, 0.063W, 91ohm, 50V, 5% +/-Tol, -200,200ppm/Cel, 0402,

RK73B1ELTD910J Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	831483552
Reach Compliance Code	not_compliant
ECCN code	EAR99
YTEOL	5.81
structure	Chip
JESD-609 code	e0
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.35 mm
Package length	1 mm
Package form	SMT
Package width	0.5 mm
method of packing	Tape, Paper
Rated power dissipation(P)	0.063 W
Guideline	MIL-R-55342F
resistance	91 Ω
Resistor type	FIXED RESISTOR
series	RK73B1E(5% TOL)
size code	0402
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Tin/Lead (Sn90Pb10) - with Nickel (Ni) barrier
Tolerance	5%
Operating Voltage	50 V

Preview

Download Datasheet

View All

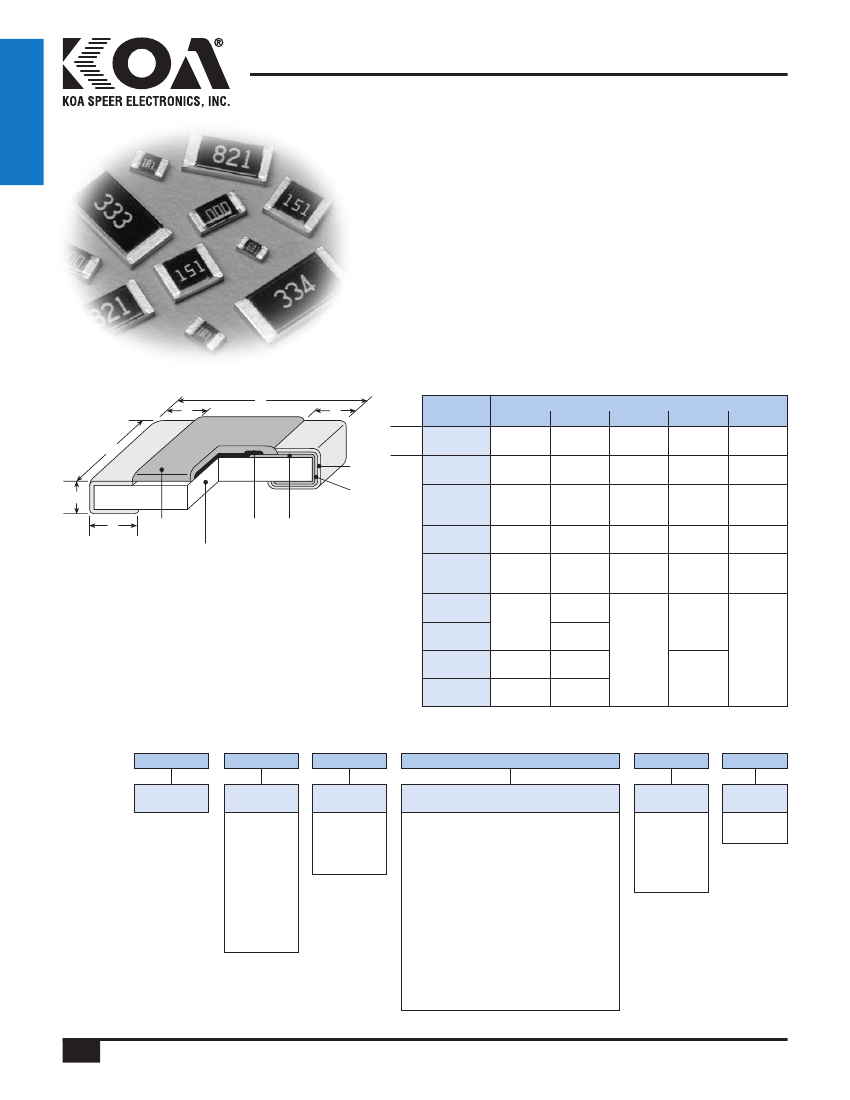

RK73B

resistors

general purpose 2%, 5% tolerance

thick film chip resistor

features

•

RuO

thick film resistor element

•

Anti-leaching nickel barrier terminations

•

Also available with epoxy bondable palladium

silver terminations in 1J, 2A and 2B sizes.

•

Meets or exceeds EIA 575, EIAJ RC 2690A,

EIA PDP-100, MIL-R-55342F

•

Marking: White three-digit on black protective coat

No marking on 1F, 1H and 1E sizes

dimensions and construction

Type

(Inch Size Code)

Dimensions

inches

(mm)

Solder

Plating

Protective

Coating

Resistive Inner

Film

Electrode

Plating

NEW

(01005)

(0201)

(0402)

(0603)

(0805)

(1206)

(1210)

(2010)

(2512)

.015±.001 .007±.001 .004±.001 .004±.001 .005±.001

(0.4±0.02) (0.2±0.02) (0.1±0.03) (0.1±0.03) (0.12±0.02)

.024±.001 .012±.001 .004±.002 .006±.002 .009±.001

(0.6±0.03) (0.3±0.03) (0.1±0.05) (0.15±0.05) (0.23±0.03)

.039

(1.0

+.004

-.002

+0.1

)

-0.05

+.002

.02±.002 .008±.004 .01

-.004

.014±.002

(0.5±0.05) (0.2±0.1) (0.25

+0.05

) (0.35±0.05)

-0.1

Ceramic

Substrate

.063±.008 .031±.004 .012±.004 .012±.004 .018±.004

(1.6±0.2)

(0.3±0.1) (0.45±0.1)

(0.8±0.1)

(0.3±0.1)

.079±.008 .049±.004 .016±.008

(2.0±0.2) (1.25±0.1) (0.4±0.2)

.063±.008

.126±.008

(1.6±0.2)

(3.2±0.2)

.102±.008

(2.6±0.2)

.197±.008 .098±.008

(5.0±0.2)

(2.5±0.2)

.248±.008 .122±.008

(6.3±0.2)

(3.1±0.2)

.012

(0.3

.016

(0.4

.02±.012

(0.5±0.3)

+.008

-.004

+0.2

-0.1

)

+.008

-.004

+0.2

)

-0.1

.02±.004

(0.5±0.1)

.024±.004

(0.6±0.1)

.025±.005

(0.65±0.15)

ordering information

New Part #

RK73B

Type

Size

Termination

Material

T: Sn

X: AgPd**

G: Au*

L: SnPb

Packaging

TC: 2mm pitch punched pressed paper

(01005 & 0201 only)

TB: 2mm pitch pressed paper

(0201 only)

TP: 2mm pitch punched paper

(0402 & 0603)

TD: 7" paper tape

(0603, 0805, 1206 &1210)

TDD: 10" paper tape

(0603, 0805, 1206 &1210)

TE: 7" punched plastic

(0805, 1206, 1210, 2010 & 2512)

TED: 10" punched plastic

(0805, 1206, 1210, 2010 & 2512)

102

Nominal

Resistance

2 significant

figures + 1

multiplier

“R” indicates

decimal on

value <10Ω

Tolerance

G: ±2%

J: ±5%

* Available ONLY in 1E, 1J

and 2A (10Ω - 1MΩ) chip sizes

** Available ONLY in 1J, 2A and 2B (10Ω ~ 22MΩ) chip sizes

For further information on packaging, please refer to Appendix A.

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

4/20/05

KOA Speer Electronics, Inc.

• Bolivar Drive • P Box 547 • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
