5-1761199-3 datasheet, PDF - EEWORLD Datasheet

5-1761199-3: Description8 POSN SE SDL RCPT W/BDLK; CategoryThe connector The connector; File Size112KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5-1761199-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-1761199-3	-	-	View	Buy Now

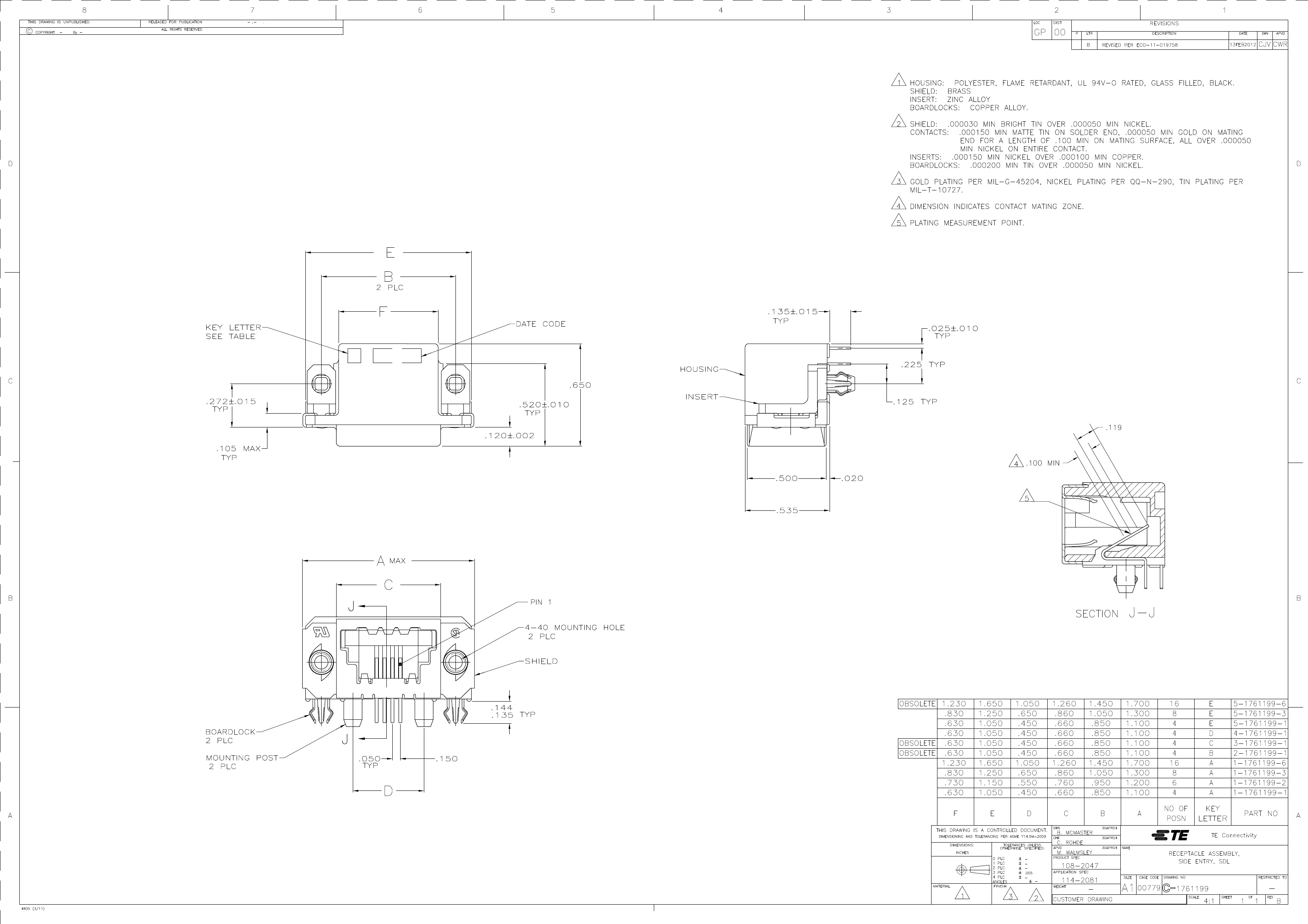

8 POSN SE SDL RCPT W/BDLK

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	18 weeks
Other features	POLARIZED
Board mount options	SPLIT BOARD LOCK
body width	0.535 inch
subject depth	0.65 inch
body length	1.3 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	30 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Durability	3000 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	7.1168 N
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
Number of ports	1
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	BRASS
Terminal length	0.16 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0
Base Number Matches	1

	5-1761199-3	10121750-2636108LF	10121750-2636114LF	5-1761199-1	10121750-2637048LF	4-1761199-1
Description	8 POSN SE SDL RCPT W/BDLK	Board Connector	Board Connector	4 POSN SE SDL RCPT W/BDLK	Board Connector	4 POSN SE SDL RCPT W/BDLK
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compliant	compliant	compliant	compliant	compli
Connector type	TELECOM AND DATACOM CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	TELECOM AND DATACOM CONNECTOR	BOARD CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	GOLD (50) OVER NICKEL
Contact material	PHOSPHOR BRONZE	COPPER ALLOY	COPPER ALLOY	PHOSPHOR BRONZE	COPPER ALLOY	PHOSPHOR BRONZE
ECCN code	EAR99	EAR99	EAR99	-	EAR99	-
