THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
7
20
6
5
4
3
LOC
2
DIST
1
REVISIONS
P
LTR
DESCRIPTION
DATE
DWN
APVD
C
COPYRIGHT
20
-
-
D
REVISED PER ECO-16-009784
30JUN16
RS
GJ
2.00
11.60
POS.
1*5
1*4
1*3
1*2
DIM.A
33.70
27.70
21.70
15.70
DIM.B
28.00
22.00
16.00
10.00
D
D
11.30
15.70
10.30
C
C
15.90
3.00
6.00
B
1.00
(2X)
9.25
1
MATERIAL:
LEVEL 1: PBT,STANDARD TEMPERATURE 105°C
KEY A: NATURAL; KEY B: PURPLE; KEY C: BLUE; KEY D: YELLOW
LEVEL 2: NYLON,HIGH TEMPERATURE 150 $ C
KEY A: LIGHT GREY; KEY B: RED; KEY C: BLACK; KEY D:NATURAL
B
2
2
MATERIAL MARK:
LEVEL 1: PBT,LEVEL 2:HDT
APPLICABLE CONTACT P/N
RECEPTACLE CONTACT: 1971237/1971779/81/83/85/87-* , 2238066-*
MATING CONN, P/N
CAP HSG: *-1971771/2-* AND HEADER: *-1969688-*
TPA (LOCKING PLATE): *-1971777-*
5
This product has not completed validation testing.
3
4
A
DIM.B
DIM.A
A
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DWN
CHK
TOMMY WU
HAPYE WU
YUHONG MAO
108-106118
114-106118
09JUL2012
09JUL2012
09JUL2012
NAME
TE Connectivity
mm
APVD
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
0.35
0.25
-
-
PRODUCT SPEC
APPLICATION SPEC
-
1
4805 (3/11)
-
-
WEIGHT
-
Customer Drawing
A1
00779
SIZE
CAGE CODE

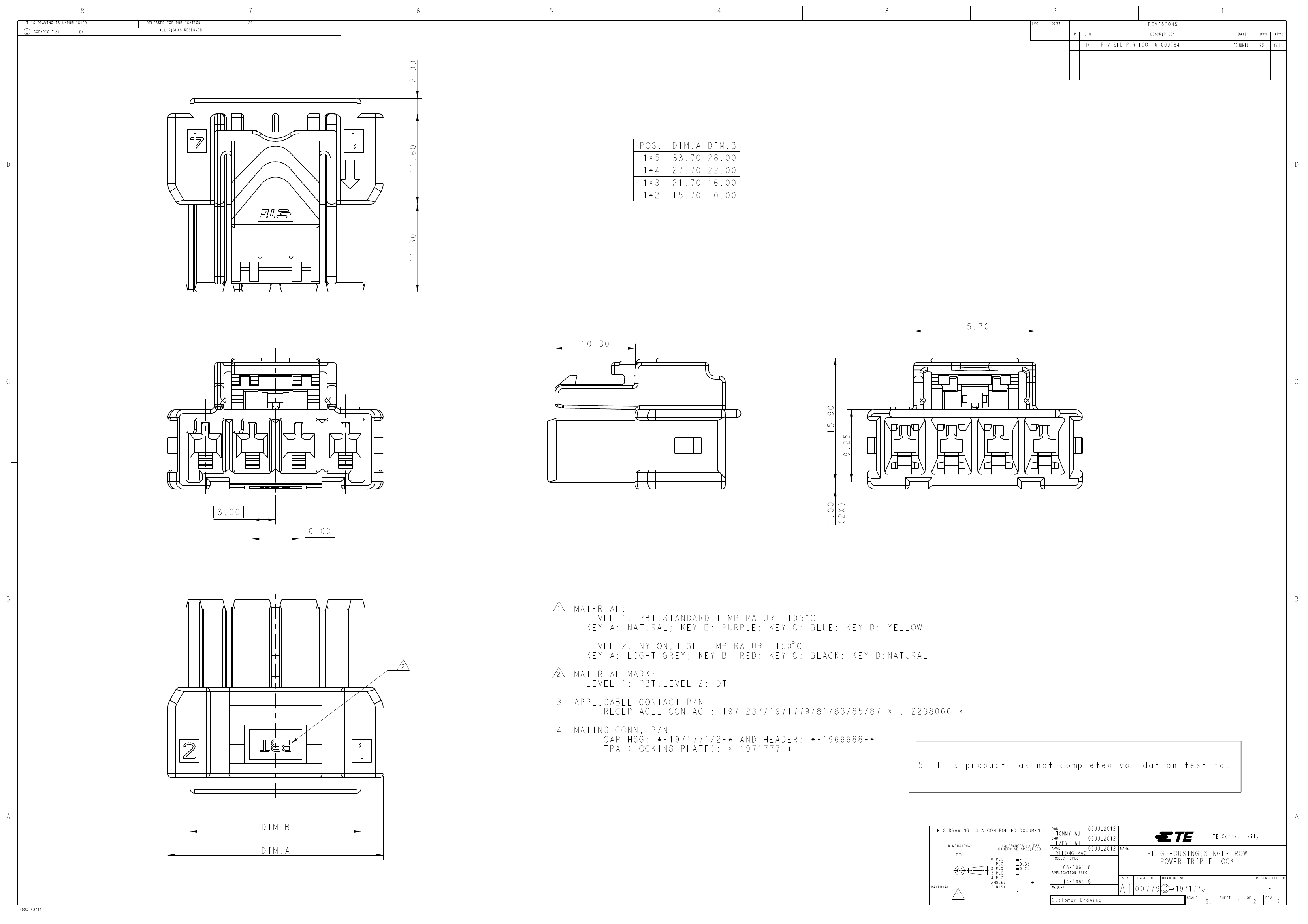

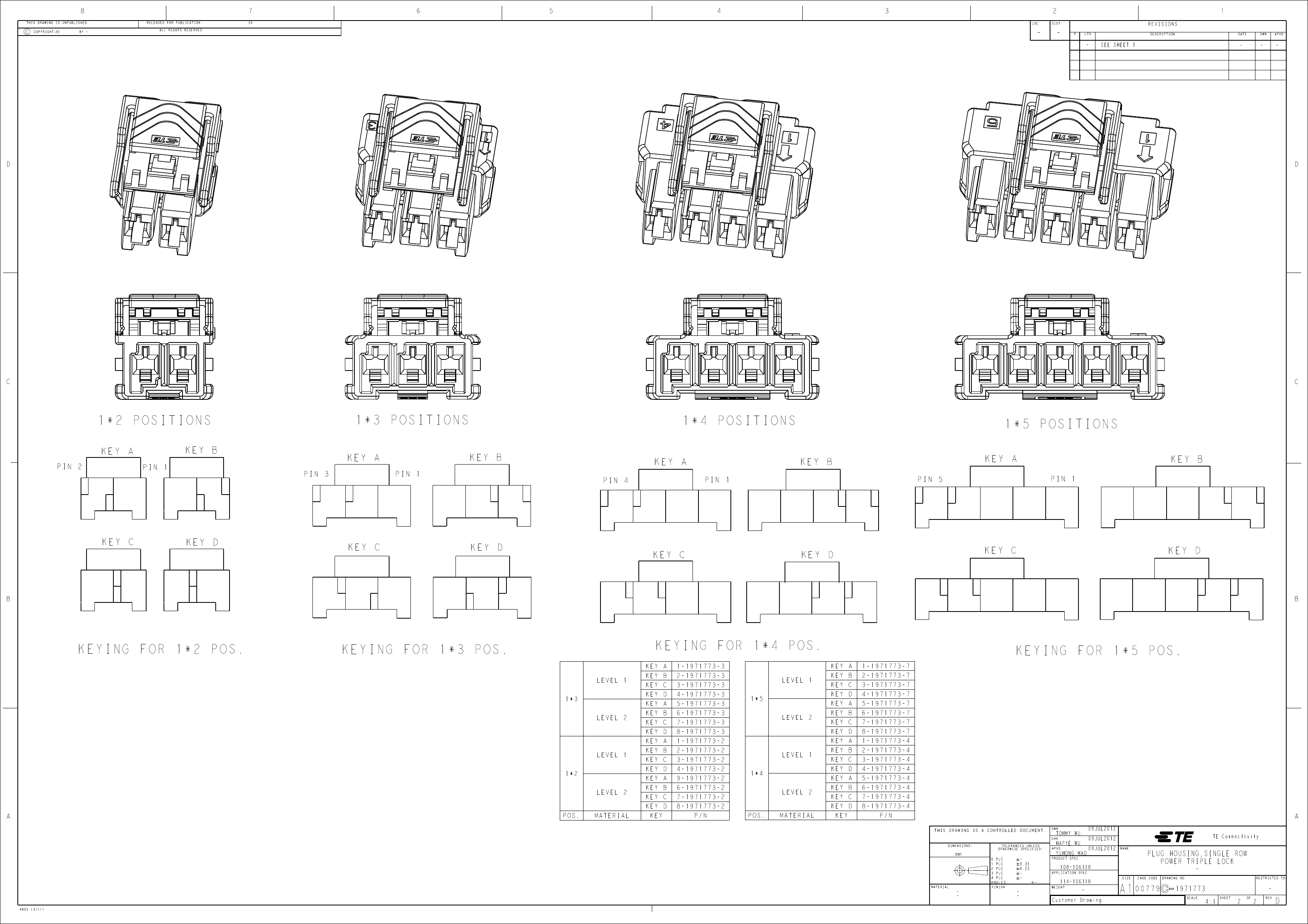

PLUG HOUSING,SINGLE ROW
POWER TRIPLE LOCK
-
DRAWING NO
RESTRICTED TO
1971773
SCALE
5:1
SHEET
1
OF
2
REV
-
D
