286377F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> 286377F

286377F: DescriptionAnalog Circuit; CategoryAnalog mixed-signal IC The signal circuit; File Size83KB，1 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric View All

286377F Overview

Analog Circuit

286377F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Littelfuse
package instruction	,
Reach Compliance Code	unknown
JESD-609 code	e3
Terminal surface	Matte Tin (Sn)
Base Number Matches	1

Preview

Download Datasheet

View All

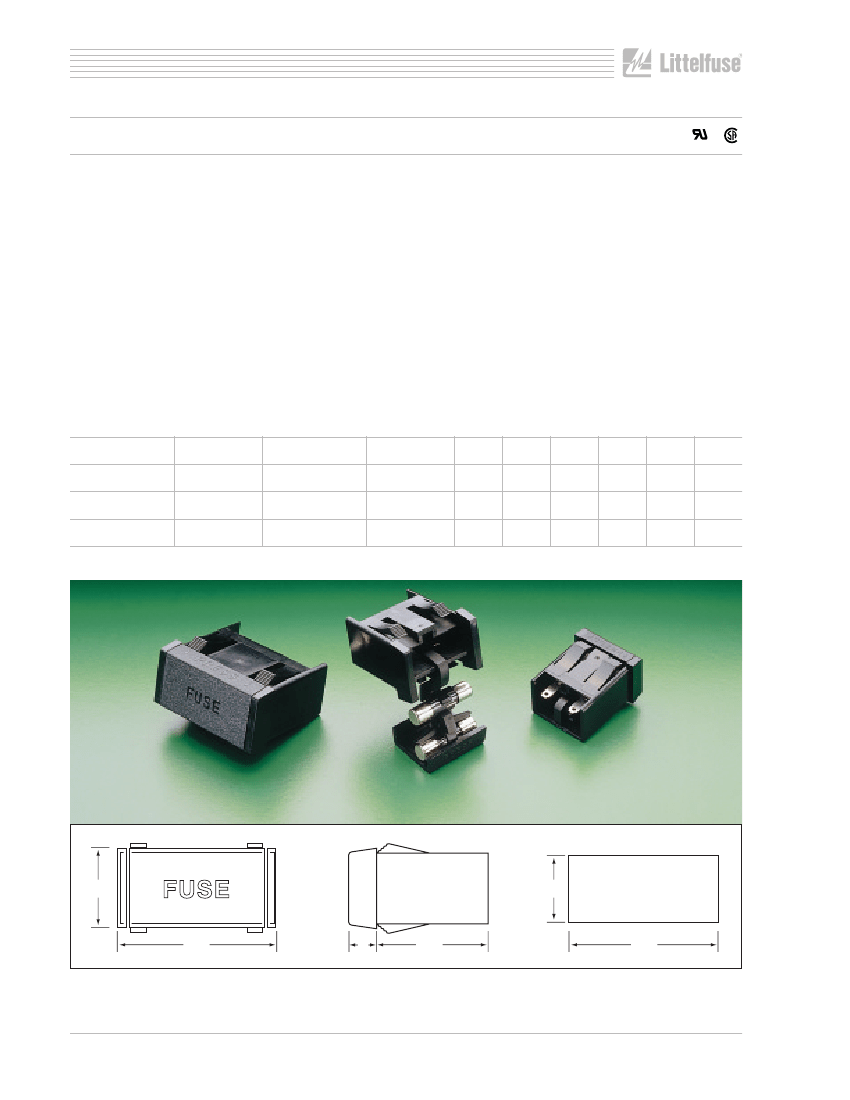

FUSEHOLDERS

FOR 3AG, 5 x 20mm, OR 2AG FUSES

Flip-Top Shock-Safe

Panel Mount Type

Shock-Safe design eliminates any possibility of electrical

shock, per IEC Standards 127 and 65. Fuse carrier holds

spare fuse for fast, easy fuse replacement and convenient

servicing. Low profile design complements modern panels.

APPROVALS:

Recognized under the Components Program

of Underwriters Laboratories and Certified by CSA.

SPECIFICATIONS:

Electrical:

Rating: See TABLE.

Insulation Resistance: 10,000 megohm minimum at

500 VDC.

Contact Resistance: Less than 0.01 ohm.

Mounting:

Snap-in mounting. No hardware required. Panel

thickness range: .032" through .125".

Molded Parts:

Thermoplastic (UL 94V0) black standard

(other colors available as special).

Fuse Carrier:

Spring-loaded. Unlocks with a press of the

finger. Locks into place to prevent accidental circuit inter-

ruption. Permanently attached to fuseholder body to prevent

loss. Extracts fuse from live terminals. Holds spare fuse.

Terminals:

Copper alloy, tin plate. Accepts quick-connect

or solder.

Ambient Temperature:

– 40°C to +85°C.

Vibration:

10-55-10 Hz at .06" double amplitude

(Method 201, MIL-STD-202).

PATENTED

ORDERING INFORMATION:

Catalog Number

346 877

286 677

286 377

Fuse Size

3AG

5 x 20mm

2AG

Q.C. Terminals

.250" x .032"

.072" Dia. Hole

.187" x .032"

.055" Dia. Hole

.110" x .020"

.048" Dia. Hole

Max. Amps

At 250V.

.75"

.70"

.61"

1.5"

1.03"

.85"

.27"

.26"

.20"

1.04"

.94"

.87"

±.005"

.688"

.625"

.550"

±.005"

1.445"

.953"

.775"

BARRIER-PROTECTED

TERMINALS

LOW PROFILE DESIGN

FUSE CARRIER

HOLDS SPARE

FUSE
