SOT-23 Formed SMD Package
CMBT5551
SILICON N–P–N HIGH–VOLTAGE TRANSISTOR
N–P–N transistor
Marking
CMBT5551 = G1

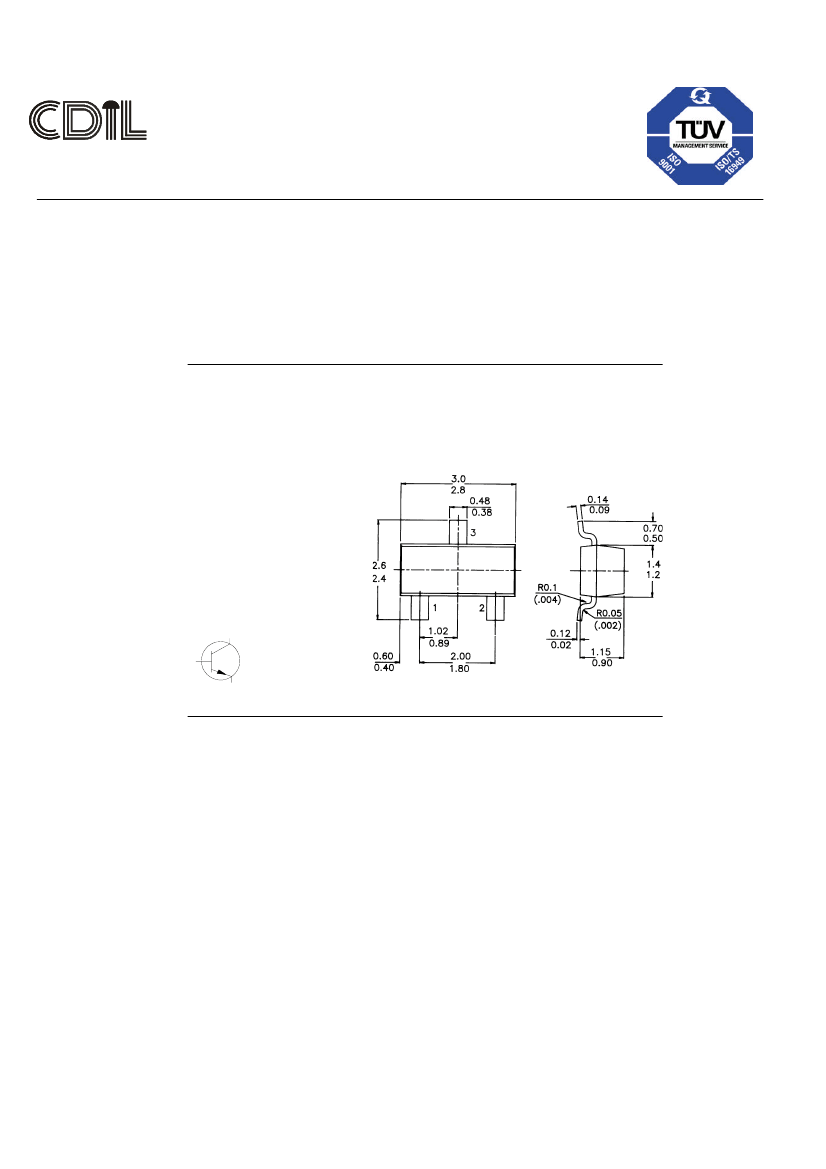

PACKAGE OUTLINE DETAILS
ALL DIMENSIONS IN m
m
Pin configuration
1 = BASE
2 = EMITTER
3 = COLLECTOR
3
1
2
ABSOLUTE MAXIMUM RATINGS
Collector–base voltage (open emitter)
Collector–emitter voltage (open base)
Collector current
Total power dissipation up to T
amb
= 25 °C
Junction temperature
Collector–emitter saturation voltage
I
C
= 50 mA; I
B
= 5 mA
D.C. current gain
I
C
= 10 mA; V
CE
= 5 V
RATINGS
(at T
A
= 25°C unless otherwise specified)
Limiting values
Collector–base voltage (open emitter)
Collector–emitter voltage (open base)
Emitter–base voltage (open collector)
V
CBO
V
CEO
I
C
P
tot
T
j
V
CEsat
h
FE
max.
max.
max.
max
max.
max.
min.
180
160
600
250
150
V
V
mA
mW
°C
0.2 V
80
V
CBO
V
CEO
V
EBO
max.
max.
max.
180 V
160 V
6 V
Continental Device India Limited
Data Sheet
Page 1 of 3
CMBT5551
Collector current
Total power dissipation up to T
amb
= 25 °C
Junction temperature
Storage temperature range
THERMAL RESISTANCE
from junction to ambient
I
C
P
tot
T
j
T
stg
max.
600
max
250
max.
150
–55 to +150
mA
mW
°C
°C
R
th j–a
500
K/W
CHARACTERISTICS
(at T
A
= 25°C unless otherwise specified)
Collector cut–off current
I
CBO
I
E
= 0; V
CB
= 120 V
I
CBO
I
E
= 0; V
CB
= 120 V; T
amb
= 100 °C
Emitter cut–off current
I
EBO
I
C
= 0; V
EB
= 4 V
Breakdown voltages
V
(BR)CEO
I
C
= 1 mA; I
B
= 0
V
(BR)CBO
I
C
= 100
µA;
I
E
= 0
V
(BR)EBO
I
C
= 0; I
E
= 10
µA
Saturation voltages
V
CEsat
I
C
= 10 mA; I
B
= 1 mA
V
BEsat
V
CEsat
I
C
= 50 mA; I
B
= 5 mA
V
BEsat
D.C. current gain
h
FE
I
C
= 1 mA; V
CE
= 5 V
I
C
= 10 mA; V
CE
= 5 V
I
C
= 50 mA; V
CE
= 5 V
Small–signal current gain
I
C
= 1 mA; V
CE
= 10 V; f = 1 kHz
Output capacitance at f = 1 MHz
I
E
= 0; V
CB
= 10 V
Input capacitance at f = 1 MHz
I
C
= 0; V
EB
= 0.5 V
Transition frequency at f = 100 MHz
I
C
= 10 mA; V
CE
= 10 V
h
FE
h
FE
h
fe
C
o
C
i
f
T
max.
max.
max.
min.
min.
min.
max.
max.
max.
max.
min.
min.
max.
min.
min.
max.
max.
max.
min.
max.
50 nA
50
µA
50 nA
160 V
180 V
6 V
0.15
1
0.2
1
80
80
250
30
50
200
6 pF
30 pF
100
MHz
300
MHz
V
V
V
V
Continental Device India Limited
Data Sheet
Page 2 of 3
