Series SW & DSW
.375" (9 .52mm) Center-to-Center Spacing

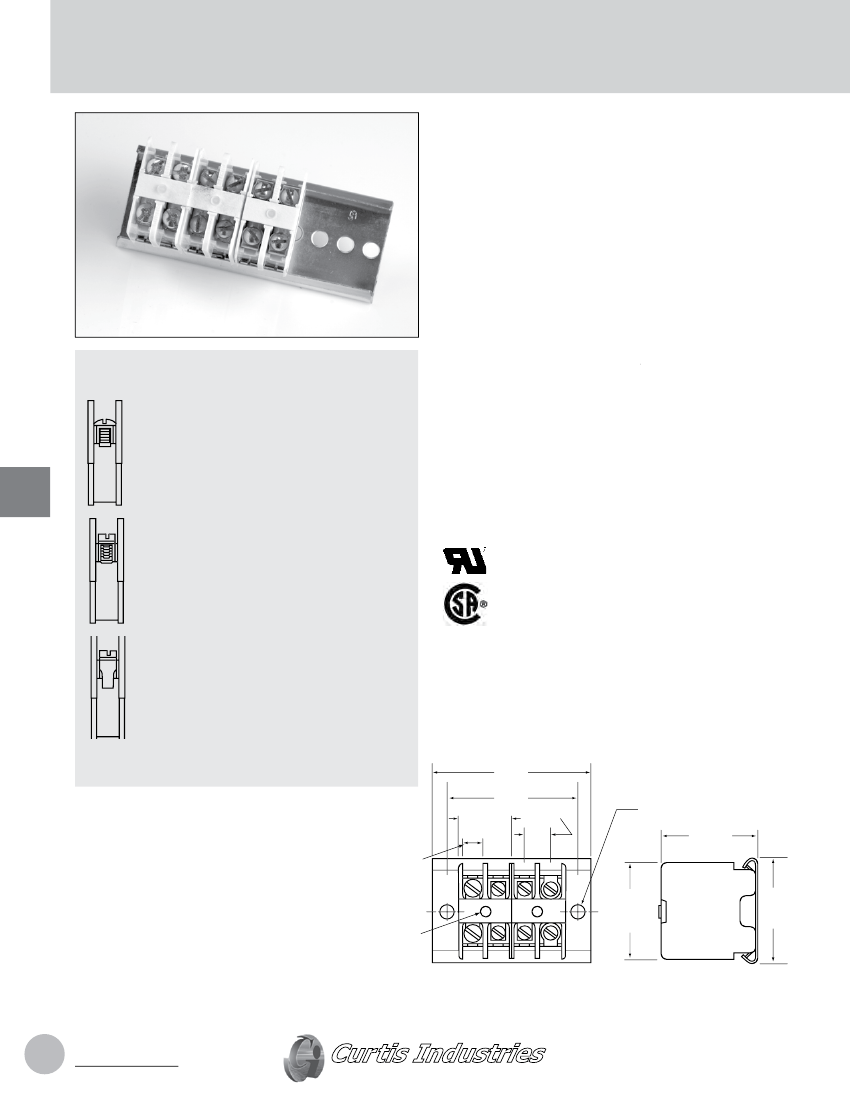

Features:
•
Snap-In Track-Type Concept
– To assemble two or three-
pole modules simultaneously, simply insert one edge of
the module under the flange of the track and with very little
pressure snap into place . To remove, push center section of
spring toward molding . Module will “pop free .”
•
Total Modular Principle
– Two and three-pole nylon
modules are complete with white fiber marking strips and
retaining springs .
•
Reduced Inventory
– No end moldings, mounting brackets
or metal mounting clamps are needed for assembly .
•
Compact Design
–3/8" center-to-center terminals provide
compact circuit density . 32 poles per foot – 192 per six foot
length .
•
Terminal Flexibility
– Three different terminal variations are
available . Ratings up to 50A/600V .
50A/600V
•
Durable Modular Construction
– All SW models feature
moldings of break-resistant nylon .
•
May be pre-assembled on track
•
Wire Sizes
– Types SWS strap screw terminal with No . 6-32
screws . UL recognized for No . 22AWG to No . 14AWG . Type
SWT tubular terminal with No . 10-32 screws . UL recognized
for No . 16AWG to No . 8AWG . Type SWTC tubular clamp
terminal with No . 10-32 screws . UL recognized for No .
22AWG to No . 8AWG .
•
Recognition and Listing
– UL recognized and CSA certified
Recognized under the Components Program of
Underwriters Laboratories, Inc. Standard 1059,
Guide No. XCFR2, File No. E62557.
Guide No. 22.2 No. 158, Report No. LR39186-1.
High Voltage/Current
Series SW & DSW Variations
and Terminal Designations
SWS &
DSWS
Brass terminal bars with No . 6-32
terminal screws . Accepts wire up to
No . 14AWG . Requires the use of
lugs .
BARRIER STYLE
SWT &
DSWT
Solderless electro-tinned tubular
connector with No . 10-32 terminal
screws . Accepts wire from No .
16AWG to No . 8AWG .
SWTC &
DSWTC
Solderless electro-tinned
tubular connector with No .
10-32 terminal screws captivated by
traveling pressure pad . Accepts wire
from 22AWG to No . 8AWG .
Note:
All variations as illustrated at
left in two or three terminal
modules only .
Series SW Dimensions
O.D.
M.D.
.750
(19.05)
.375
(9.52)
.218 Dia. Mtg. Hole
(5.55)
.1.562
(39.67)
.294
(7.46)
.1.375
(34.92)
Marking Strip
NOTE:mm dim. are shown in parentheses
38
www .curtisind .com
Curtis Industries
A Division of Powers Holdings, Inc.
Specifications subject to change.
Dimensions are shown for
reference purposes only .
.1.500
(38.1)
Specifications:
Center-to-Center Spacing:
3/8" (9 .52mm)
Wire Range:
SWS & DSWS – No . 22AWG to No . 14AWG –
requires use of lugs
SWT & DSWT – No . 16AWG to No . 8AWG
SWTC & DSWTC – No . 22AWG to No . 8AWG
No. of Terminals:
2 thru 192
Voltage Rating:
CSA & UL: 600V
Tightening Torque:
SWS & DSWS
12 in .-lb .
SWT & DSWT
25 in .-lb .
SWTC & DSWTC 25 in .-lb .
Current Rating:
SWS: 25A, SWT & SWTC: 50A
Housing:
Material
Polyamide
Continuous Use
Temp . (UL Index)
125°C (257°F)
Flammability Rating
94V-2
Water Absorption
(24 hrs . % wt . gain) 1 .5%
Chemical Resistance
Outstanding resistance to both
organic and inorganic substances
Breakdown Voltage:
SWS/DSWS SWT/DSWT SWTC/DSWTC
Terminal - Terminal
7,000V Typ. 4,700V Typ. 4,900V Typ.
Terminal - Ground
8,400V Typ. 8,200V Typ. 9,300V Typ.
Note:
Specifications contained herein are subject to change
without notice .
Series SW and DSW Accessories
MARKING STRIPS
White fiber marking strip available in two or three-pole lengths
or in pre-punched 100-ft . rolls .
To order, specify:
Part No . 275A8 2PSW
Part No . 275A9 3PSW
100-ft . Rolls – Part No . 20SW Coil
Pins – Part No . 21SW Pin
High Voltage/Current
TERMINAL JUMPER CONNECTS
Brass jumper connects 12 consecutive terminals and can be
cut for shorter applications
Part No . 275-A14 .
Type 275-A16 is designed to
connect two adjacent terminals.
BARRIER STYLE
How to Order
SW and DSW Series modules are ordered by listing a
composite number made up of the model designation
preceded by the number of poles per module .
Prefixes are used as follows:
2P denotes 2-pole module
3P denotes 3-pole module
Example: a 2-pole SWT module becomes stock number
2PSWT; a 3-pole module becomes 3PSWT .
Series DSW Dimensions
O.D.
M.D.
.294
(7.46)
.750
(19.05)
.375
(9.52)
.248 x .709 Mtg. Slot
(6.30) (18.0)
1.812
(46.06)
Marking Strip
NOTE: mm dim. are shown in parentheses
Call factory for mounting dimesions on other lengths.
Dimensions are in inches and millimeters
unless otherwise specified.
Values in parentheses are metric equivalents .
