390AA053NF1208A

Description
Connector Accessory,
CategoryThe connector    Connector bracket
File Size373KB，5 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet Parametric View All

390AA053NF1208A Overview

Connector Accessory,

390AA053NF1208A Parametric

Parameter NameAttribute value
Objectid7129026551
Reach Compliance Codenot_compliant
Other featuresSTANDARDS: MIL-DTL-83723 SERIES I, MIL-DTL-83723 SERIES III
Related Mil-Spec Back CasesMIL-DTL-5015, MIL-DTL-26482 SERIES 2
Connector bracket typeCONNECTOR ACCESSORY
DIN complianceNO
IEC complianceNO
MIL complianceYES
MaterialALUMINUM ALLOY
Military connector accessories nameBACKSHELL
Maximum operating temperature175 °C
Minimum operating temperature-65 °C
Housing size12

390AA053NF1208A Preview

390-053

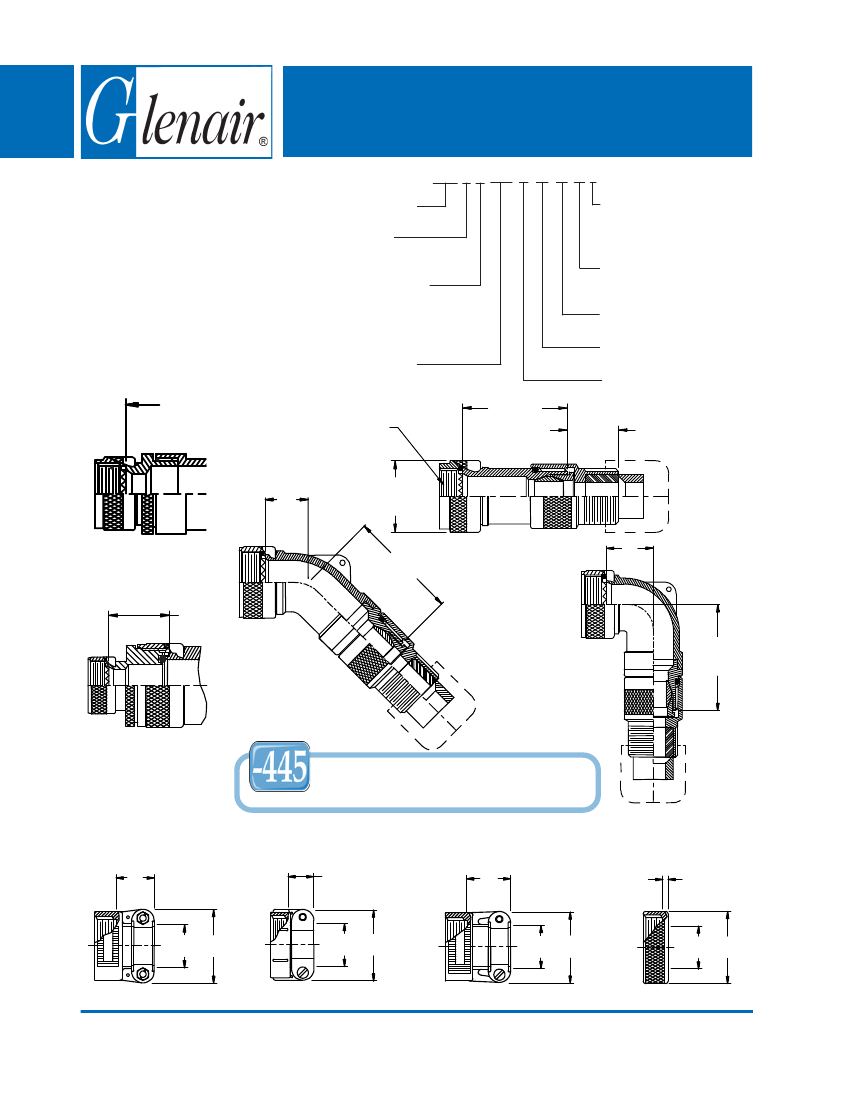

Submersible EMI/RFI Cable Sealing Backshell
with Strain Relief
Type F - Rotatable Coupling - Low Profile
390 F S 053 M 16 10 M 6
Product Series
Connector
Designator
Angle and Profile
A = 90°
B = 45°
S = Straight
Basic Part No.
Length *
A Thread
(Table I)
C Typ.
(Table I)
G
O-Rings
Length: S only
(1/2 inch increments:
e.g. 6 = 3 inches)
Strain Relief Style
(H, A, M, D)
Cable Entry (Tables X, XI)
Shell Size (Table I)
Finish (Table II)
1.281
(32.5)
Ref. Typ.
* Length
± .060 (1.52)
Minimum Order
Length 1.5 Inch
(See Note 4)
39
A-F-H-L-S
ROTATABLE
COUPLING
TYPE F INDIVIDUAL
AND/OR OVERALL
SHIELD TERMINATION
Length ± .060 (1.52)
Minimum Order Length 2.0 Inch
(See Note 4)
CONNECTOR
DESIGNATORS
E
(Table
III)
STYLE 2
(STRAIGHT
See Note 1)
.88 (22.4)
Max
F (Table III)
(Table III)
H (Table III)
STYLE 2
(45° & 90°
See Note 1)
Add “-445” to Specify Glenair’s Non-Detent,
("NESTOR") Spring-Loaded, Self-Locking Coupling.
See Page 41 for Details.
STYLE H
Heavy Duty
(Table X)
T
STYLE A
Medium Duty
(Table XI)
W
STYLE M
Medium Duty
(Table XI)
X
STYLE D
Medium Duty
(Table XI)
.135 (3.4)
Max
Cable
Entry
Cable
Range
V
Cable
Range
Y
Cable
Range
Y
Z
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 39 - Page 60
with Strain Relief
Type F - Rotatable Coupling - Low Profile
TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig.
G
F
E
Max
Max
Max
A-F-L-S H
09
.500 (12.7)
.457 (11.6) 1.410 (35.8)
08
.595 (15.1)
.520 (13.2) 1.470 (37.3)
10 11
.610 (15.5)
.582 (14.8) 1.530 (38.9)
12 13
.700 (17.8)
.645 (16.4) 2.144 (54.5)
14 15
.885 (22.5)
.738 (18.7) 2.254 (57.3)
16 17
.975 (24.8)
.926 (23.5) 2.444 (62.1)
18 19
.975 (24.8)
.926 (23.5) 2.444 (62.1)
20 21
22 23 1.020 (25.9) 2.657 (67.5) 1.125 (28.6)
24 25 1.020 (25.9) 2.657 (67.5) 1.125 (28.6)
1.145 (29.1) 2.690 (68.3) 1.225 (31.1)
28
H
Max
1.420 (36.1)
1.540 (39.1)
1.560 (39.6)
2.154 (54.7)
2.244 (57.0)
2.414 (61.3)
2.414 (61.3)
2.587 (65.7)
2.587 (65.7)
2.740 (69.6)
See inside back cover
fold-out or pages 13 and
14 for Tables I and II.
TABLE X: CABLE ENTRY
Cable Range
V
T
Dash
Max
Min
Max
No.
Max
.957 (24.3)
.125 (3.2) .312 (7.9)
.780 (19.8)
04
.250 (6.4) .437 (11.1)
.780 (19.8) 1.145 (29.1)
06
.387 (9.3) .562 (14.3)
.780 (19.8) 1.332 (33.8)
08
.350 (8.9) .625 (15.9)
.780 (19.8) 1.332 (33.8)
10
.500 (12.7) .750 (19.1)
.811 (20.6) 1.551 (39.4)
12
.625 (15.9) .937 (23.8)
.905 (23.0) 1.770 (45.0)
16
.875 (22.2) 1.250 (31.8)
1.092 (27.7) 2.113 (53.7)
20
1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9)
24
1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3)
28
1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6)
32
1. When maximum cable entry (page 21) is
exceeded, Style 2 will be supplied. Dimen-
sions E, F, G and H will not apply. Please
consult factory.
2. Metric dimensions (mm) are indicated in
parentheses.
3. Cable range is defined as the accommoda-
tions range for
the wire bundle or cable. Dimensions
shown are not intended for inspection
criteria.
4. Consult factory for shorter lengths on
straight backshells.
5. Interface O-Ring not supplied with connec-
tor designator A.
Dash
X
W
No.
Max
Max
03* .437 (11.1) .760 (19.3)
04* .437 (11.1) .760 (19.3)
06* .500 (12.7) .760 (19.3)
08
.563 (14.3) .760 (19.3)
10
.563 (14.3) .760 (19.3)
12
.563 (14.3) .760 (19.3)
16
.656 (16.7) 1.073 (27.3)
20
.656 (16.7) 1.323 (33.6)
24
.656 (16.7) 1.323 (33.6)
28 1.188 (30.2) 1.572 (39.9)
32* 1.187 (30.1) 1.572 (39.9)
40* 1.125 (28.6) 1.572 (39.9)
* Not available in Style M clamp.
TABLE XI: CABLE ENTRY
Y
Z
Max
Max
.843 (21.4)
.630 (16.0)
.906 (23.0)
.755 (19.2)
1.093 (27.8)
.942 (23.9)
1.187 (30.1) 1.067 (27.1)
1.281 (32.5) 1.192 (30.3)
1.500 (38.1) 1.380 (35.1)
1.719 (43.7) 1.535 (39.0)
2.062 (52.4) 1.848 (46.9)
2.312 (58.7) 2.255 (57.3)
2.719 (69.1) 2.505 (63.6)
2.969 (75.4) 2.755 (70.0)
3.531 (89.7) 3.255 (82.7)
Cable Range
Min
Max
.156 (4.0) .250 (6.4)
.188 (4.8) .312 (7.9)
.281 (7.1) .438 (11.1)
.387 (9.3) .562 (14.3)
.375 (9.5) .625 (15.9)
.438 (11.1) .750 (19.1)
.625 (15.9) .938 (23.8)
.875 (22.2) 1.250 (31.8)
1.000 (25.4) 1.375 (34.9)
1.250 (31.8) 1.625 (41.3)
1.437 (36.5) 1.875 (47.6)
1.875 (47.6) 2.375 (60.3)
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 39 - Page 61
