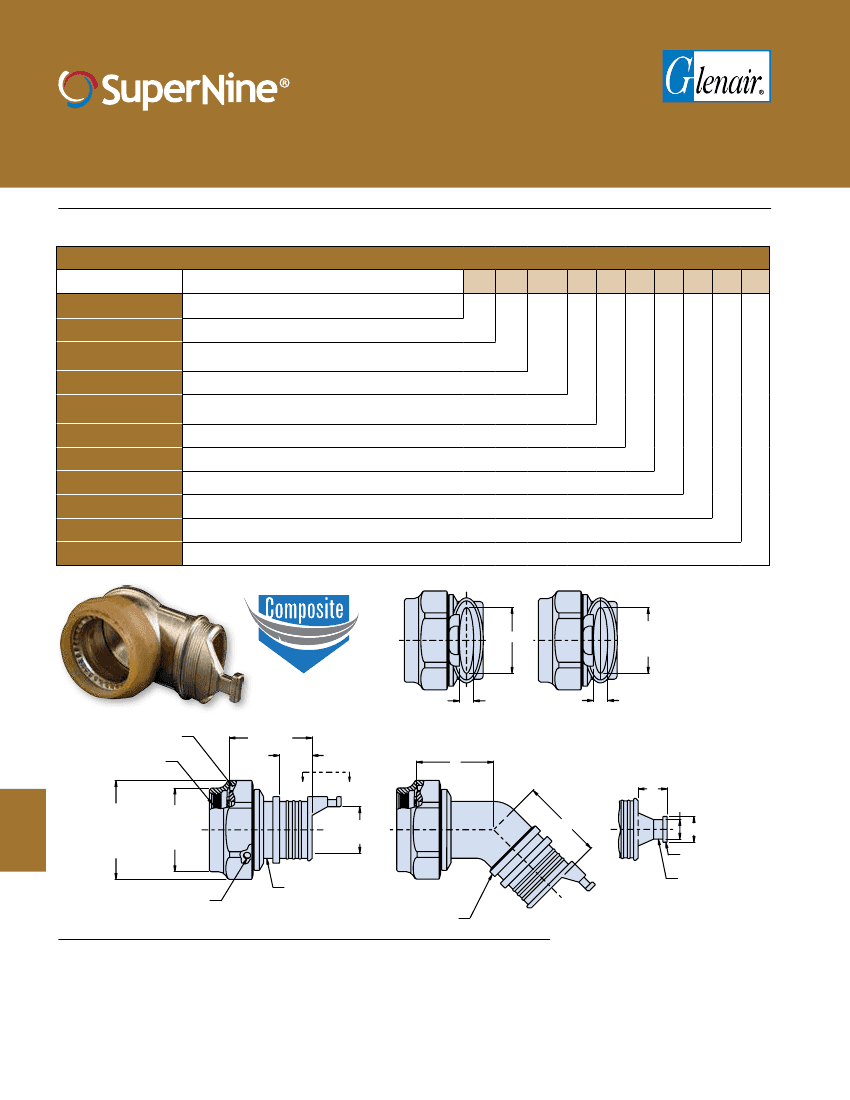

SERIES 23

MIL-DTL-38999

Backshells and accessories

440-143 Composite ultra-low-profile EMI/RFI backshell

COMPOSITE BACKSHELL WITH QWIK-TY, SHRINK BOOT PORCH, AND SELF-LOCKING COUPLING NUT

How To Order 440-143

Sample Part Number

Product Series

Connector Designator

Angle and Profile

Basic Number

Finish

Connector Shell Size

Cable Entry

Drain Hole Option

Band Option

Shrink Boot Option

Shield Termination Slot

440

EMI/RFI non-environmental micro-banding backshells

H

= MIL-DTL-38999 Series III

S

= Straight T = 45° Elbow

A

= 90° Standard Profile

E

= 90° Low Profile, Split

W

= 90° Low Profile, Solid

144

XB

= No plating, black

XM

= Electroless Nickel

XD

= No Plating, Desert Tan

XMT

= Nickel-PTFE

1000 Hour Gray

XW

= Cadmium O/D over Electroless Nickel

09, 11, 13, 15, 17, 19, 21, 23, 25,

04, 05, 07, 09, 11, 13, 15, 16

,17; Omit for Low Profile options E and W only.

D

= With Drain Hole. Omit if not required

B

= Supplied with Band. Omit for none.

T

= Shrink Boot, omit for none.

S

= with Slot, omit for none.

H

S

143

XM

15

09

D

B

T

S

L

See

Note 4

M

Anti Decoupling

Device Typ

A Thread

Typ

.962 Max

M

See

Note 4

.320

Typ

H

A

D Dia

Typ

J

G

E

F

Qwik Ty

©

Strain Relief

AS33671 Tie Strap

or Equivalent

H

C Dia

Max

Typ

See

Note 1

B Dia

Max

See

Note 1

Optional Ø .125 Drain Holes

Minimum 3 Spaced

Equally - Typ

Sym S

Straight

Shrink Sleeve

or Boot Groove Typ

Raised Configuration

(Mfr's Option)

Sym T

45°

View A-A

Typ

NOTES

770-001S**-0 shrink boot supplied with T option. See shrink boot product page for more

details.

Coupling nut supplied unplated.

See Table I in Intro for front-end dimensional details.

For Sym “E” low profile split shell size 25 dimensions, use indicated row in Table I.

H-18
