SR-500-3Y datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> SR-500-3Y

Preview

SR-500-3Y: Descriptionsplicer/reducer alum dual rate 3; CategoryThe connector; File Size183KB，1 Pages; ManufacturerPanduit; Websitehttp://www.panduit.com

Download Datasheet Parametric Compare View All

SR-500-3Y Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SR-500-3Y	-	-	View	Buy Now

SR-500-3Y Overview

splicer/reducer alum dual rate 3

SR-500-3Y Parametric

Parameter Name	Attribute value
Datasheets
SR Series Splicer/Reduce
SR Series Drawing
Standard Package	1
Category	Connectors, Interconnects
Family	Terminals - Wire Splice Connectors
Packaging	Bulk
Terminal Type	Butt Splice, Inline, Individual Openings
Number of Wire Entries	2
Terminati	Screw
Wire Gauge	500 MCM (kcmil)-3/0 AWG
Insulati	Non-Insulated
Features	-
Col	-
Other Names	07498360774

Preview

Download Datasheet

View All

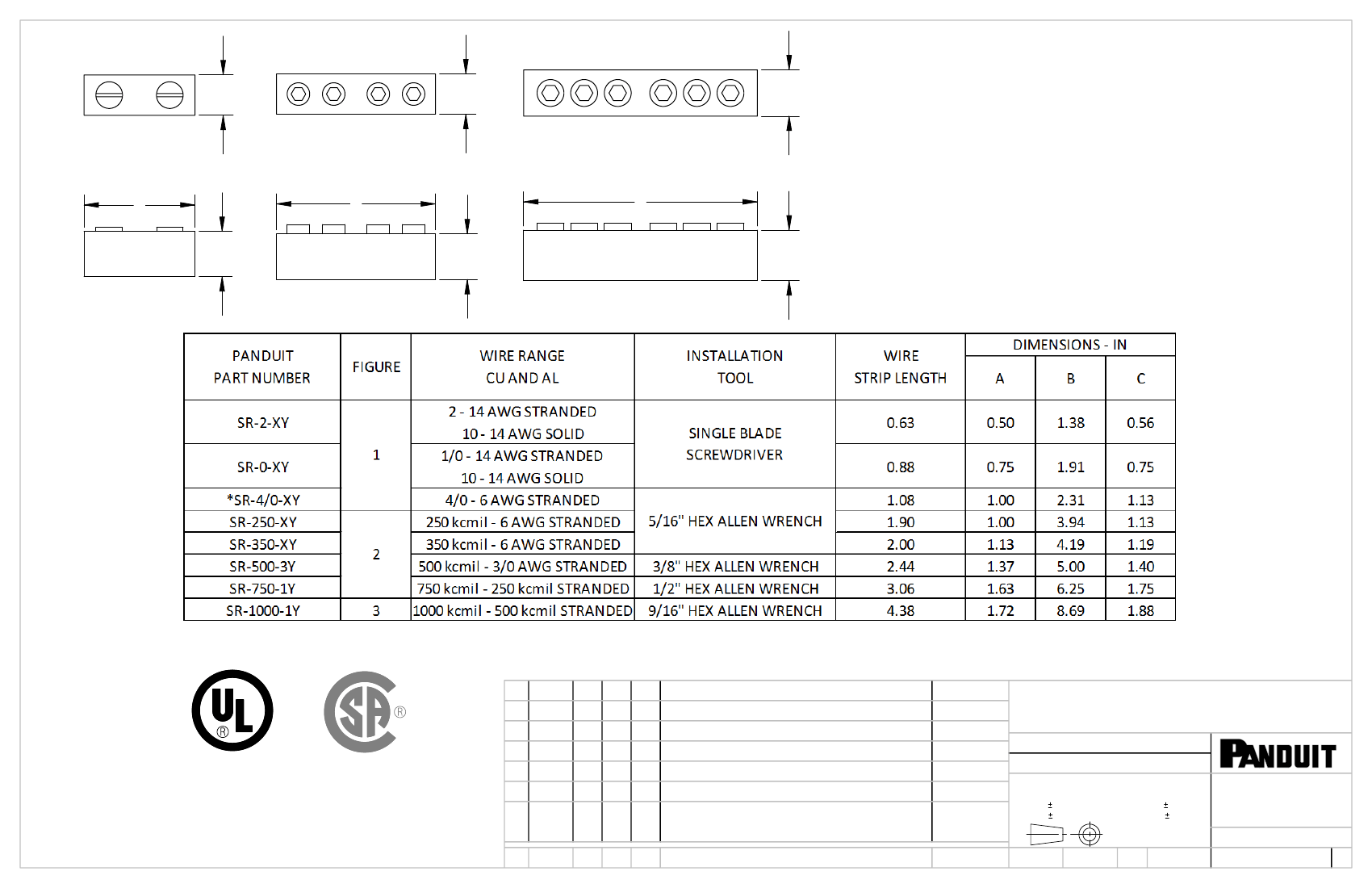

THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.

NOTES:

1. ANTI-OXIDANT JOINT COMPOUND RECOMMENDED

FOR ALL ALUMINUM CONNECTORS

A

2. SPLICER REDUCER AND SCREWS ARE TIN PLATED

ALUMINUM

3. MADE IN U.S.A.

4. LISTED PER UL486B

5. CSA CERTIFIED

(NOTE: DOES NOT APPLY TO SR-4/0-XY)

B

6. THIS PART IS RoHS COMPLIANT

C

TITLE

ALUMINUM SPLICER REDUCER

SR SERIES

CUSTOMER DRAWING

ITEM REVISION NAME

LISTED

CERTIFIED

N41540BA/03

C41540/03.SLDDRW

MATERIAL

DATASET FILE NAME

(*DOES NOT APPLY TO SR-4/0-XY)

03

02

7/15

9/14

JHNU JHNU RGB

REVISED PART NUMBER: SR-0-XY WAS SR-0-SY

ADDED NOTE TO SPECIFY SR-4/0-XY IS NOT CSA CERTFIED

CONVERTED TO SOLIDWORKS

REVISED DWG SIZE: WAS A SIZE

N41540BA-

C41540

N41540BA-

C41540

ECN

UNLESS OTHERWISE SPECIFIED,

DIMENSIONAL TOLERANCES ARE: IN [mm]

.X

.XXX

.XX

.02

ANGLES

THIRD ANGLE

PROJECTION

DRAWN BY

SEE NOTES

DRAWING NUMBER

C41540

SIZE

REV

DATE

BY

CHK APR

DESCRIPTION

JHNU

DATE

10/05

CHK

LEM

SCALE

N/A

SHEET 1 0F 1

B

SR-500-3Y Related Products

	SR-500-3Y	SR-4/0-XY	SR-250-XY	SR-750-1Y	SR-350-XY	SR-1000-1Y
Description	splicer/reducer alum dual rate 3	splicer/reducer alum dual rated	splicer/reducer alum dual rated	splicer/reducer alum dual rate 2	splicer/reducer alum dual rated	splicer/reducer alum dual
Standard Package	1	1	1	1	1	1
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Terminals - Wire Splice Connectors	Terminals - Wire Splice Connectors	Terminals - Wire Splice Connectors	Terminals - Wire Splice Connectors	Terminals - Wire Splice Connectors	Terminals - Wire Splice Connectors
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Terminal Type	Butt Splice, Inline, Individual Openings	Butt Splice, Inline, Individual Openings	Butt Splice, Inline, Individual Openings	Butt Splice, Inline, Individual Openings	Butt Splice, Inline, Individual Openings	Butt Splice, Inline, Individual Openings
Number of Wire Entries	2	2	2	2	2	2
Terminati	Screw	Screw	Screw	Screw	Screw	Screw
Wire Gauge	500 MCM (kcmil)-3/0 AWG	4/0-6 AWG	250 MCM (kcmil) - 6 AWG	750-250 MCM (kcmil)	350 MCM (kcmil)-6 AWG	500-1000 MCM (kcmil)
Insulati	Non-Insulated	Non-Insulated	Non-Insulated	Non-Insulated	Non-Insulated	Non-Insulated
Other Names	07498360774	07498360773	07498360770	07498360775	07498360772	07498360769
