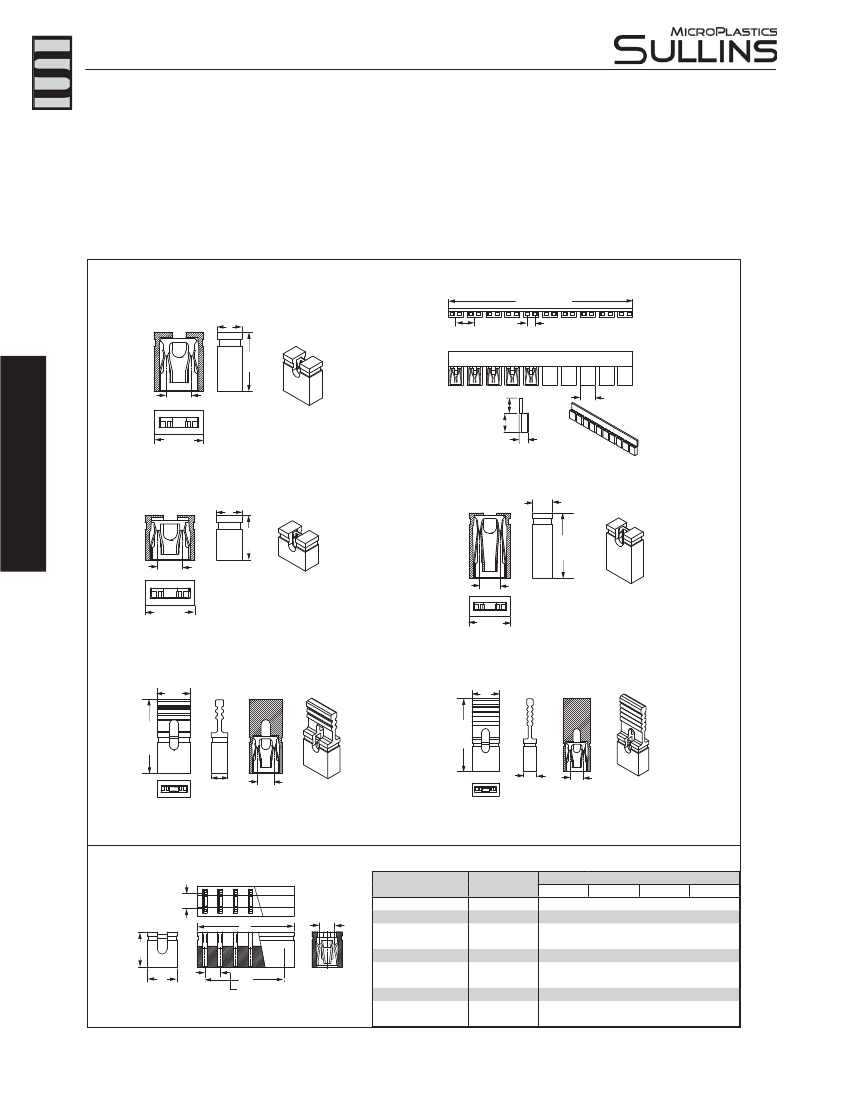

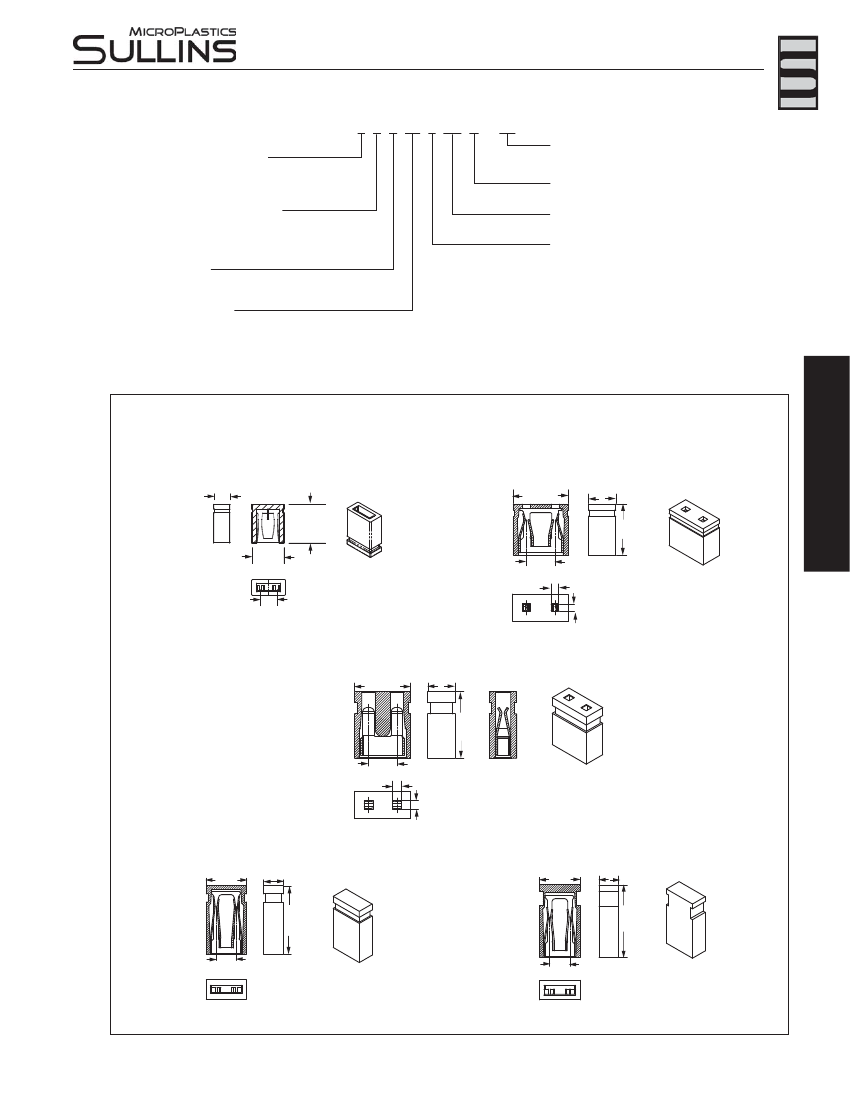

Sullins Jumpers

.100”[2.54 mm] Contact Centers, Jumper

Open / Closed Top

SPECIFICATIONS

•

Insulator Material: Nylon 66/ PBT

Contact Material: Phosphor Bronze / Brass

Plating: Overall Gold Flash

3 amp current rating per contact

UL Flammability Rating: 94V-0/94V-2

Dual Beam Contacts

DIMENSIONS

Dimensions in [ ] are in millimeters, all others are in inches.

OPEN TOP - SINGLE CIRCUIT

.097[2.45]

.100[2.54]

.248[6.30]

.235

[5.97]

2.429[61.70]

.100[2.54]

.197[5.00]

.248[6.30]

.197[5.00]

Sullins Jumpers

.196[4.98]

.118[3.00]

QPC02SXGN-RC

.100[2.54]

.177

[4.50]

.100[2.54]

QPC02SXHN-M290RC (Strip of 10)

.096[2.44]

.315

[8.00]

.100[2.54]

.197[5.00]

SPC02SXCN-RC

.196[4.98]

SPC02SXIN-RC

.196[4.98]

.197[5.00]

.429

[10.90]

.531

[13.50]

.097[2.46]

.100[2.54]

.096[2.44] .100[2.54]

NPC02SXNN-RC

NPC02SXON-RC

OPEN TOP - CHOICE OF CIRCUITS

PART NUMBER

.100[2.54]

CIRCUITS

INCH

0.100

0.200

0.300

0.400

0.500

0.600

0.700

0.800

0.900

1.200

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

30.48

INCH

0.200

0.300

0.400

0.500

0.600

0.700

0.800

0.900

1.000

1.300

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

33.02

.100[2.54]

.235

[5.98]

.100[2.54] ROW SPACING

.197[5.00]

QPC02_XGN-RC

QPC02DXGN-RC

QPC02TXGN-RC

QPC02QXGN-RC

QPC02UXGN-RC

QPC02EXGN-RC

QPC02PXGN-RC

QPC02CXGN-RC

QPC02NXGN-RC

QPC02AXGN-RC

QPC02RXGN-RC

110

www.sullinscorp.com

760-744-0125

toll-free 888-774-3100
