SAR1/0-2-X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> SAR1/0-2-X

SAR1/0-2-X: Descriptionaluminum reducing splice FR; CategoryThe connector; File Size54KB，1 Pages; ManufacturerPanduit; Websitehttp://www.panduit.com

Download Datasheet Parametric Compare View All

SAR1/0-2-X Overview

aluminum reducing splice FR

SAR1/0-2-X Parametric

Parameter Name	Attribute value
Datasheets
SAR Series Alum Reducing Splice
SAR Series DataShee
Standard Package	1
Category	Connectors, Interconnects
Family	Terminals - Wire Splice Connectors
Packaging	Bulk
Terminal Type	Butt Splice, Inline, Individual Openings
Number of Wire Entries	2
Terminati	Crim
Wire Gauge	1/0 AWG to 2 AWG
Insulati	Non-Insulated
Features	Cap, Gel Filled, Step Up/Step Dow
Col	T
Associated Produc	CD-720-2-ND - CRIMP DIE FOR CT-720CD-920-3/0-ND - CRIMP DIE
Other Names	07498391227

Preview

Download Datasheet

View All

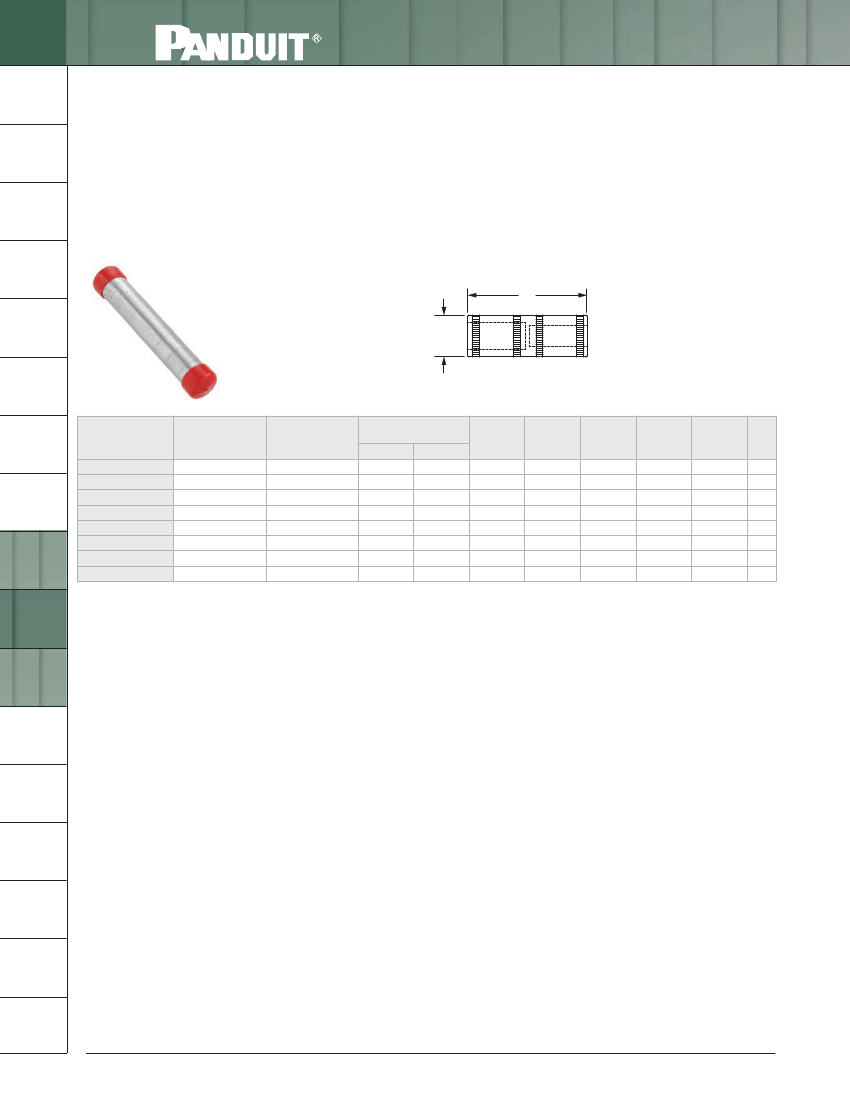

ELECTRICAL SOLUTIONS

System

Overview

Code Conductor, Aluminum, Reducing Splice

For Reducing Stranded Aluminum-to-Aluminum or Aluminum-to-Copper Conductors

Type SAR

• Dual rated for use with aluminum or copper conductors

• Factory pre-filled with joint compound and sealed with easy

pull-out end plug to inhibit corrosion

• Color-coded end plug and Panduit and specified competitor die

index numbers marked on barrel for proper crimp die selection

• Tin-plated to inhibit corrosion

• For use up to 35 KV** and temperature rated 90°C when crimped

with Panduit and specified competitor crimping tools and dies

B1.

Cable Ties

B2.

Cable

Accessories

B3.

Stainless

Steel Ties

C1.

Wiring

Duct

O.D.

C2.

Surface

Raceway

Aluminum

Conductor

Size From

#2 AWG

1/0 AWG

3/0 AWG

4/0 AWG

350 kcmil

500 kcmil

600 kcmil

750 kcmil

Figure Dimensions

Aluminum or

(In.)

Copper Conductor

Size To

Barrel O.D.

#4 AWG

0.64

4.25

#2 AWG

1/0 AWG

2/0 AWG

4/0 AWG

350 kcmil

500 kcmil

600 kcmil

0.64

0.91

1.12

1.32

1.49

1.60

4.25

4.98

5.24

6.63

8.60

9.25

9.88

Panduit

Color

Code

Tan

Red

Brown

Pink

Black

Red

Panduit

Die Index

No.‡

P50

P71

P87

P99

P106

P125

Burndy

Die Index

No.‡

296

324

299

300

473

301

T&B

Die Index

No.‡

106

115

Wire Strip Std.

Length

Pkg.

(In.)

Qty.

2 1/16

2 5/16

2 3/16

3 3/16

4 1/4

4 7/16

C3.

Abrasion

Protection

Part Number

SAR2-4-X

SAR1/0-2-X

SAR3/0-1/0-5

SAR4/0-2/0-5

SAR350-4/0-2

SAR500-350-2

C4.

Cable

Management

D1.

Terminals

SAR600-500-2

SAR750-600-2

D2.

Power

Connectors

‡See pages D3.86 – D3.87 for tool and die information.

**Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V.

See pages D2.118 for Panduit joint compounds recommended for pad to pad and conductor connections.

D3.

Grounding

Connectors

E1.

Labeling

Systems

E2.

Labels

E3.

Pre-Printed

& Write-On

Markers

E4.

Permanent

Identification

E5.

Lockout/

Tagout

& Safety

Solutions

Index

Prime items appear in

BOLD.

SAR1/0-2-X Related Products

	SAR1/0-2-X	SAR3/0-1/0-5	SAR2-4-X	SAR350-4/0-2
Description	aluminum reducing splice FR	aluminum reducing splice FR	aluminum reducing splice FR	aluminum reducing splice FR
Is it Rohs certified?	-	conform to	conform to	conform to
Reach Compliance Code	-	compli	compli	compli
ECCN code	-	EAR99	EAR99	EAR99
Factory Lead Time	-	8 weeks	8 weeks	8 weeks
terminal gender	-	FEMALE	FEMALE	FEMALE
Terminal and terminal strip types	-	WIRE TERMINAL	WIRE TERMINAL	WIRE TERMINAL
Wire gauge	-	0 AWG	2 AWG	350 AWG
