HD74LS145RP-EL datasheet, PDF - EEWORLD Datasheet

HD74LS145RP-EL: DescriptionLS SERIES, DECIMAL DECODER/DRIVER, INVERTED OUTPUT, PDSO16, SOP-16; Categorylogic logic; File Size68KB，6 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

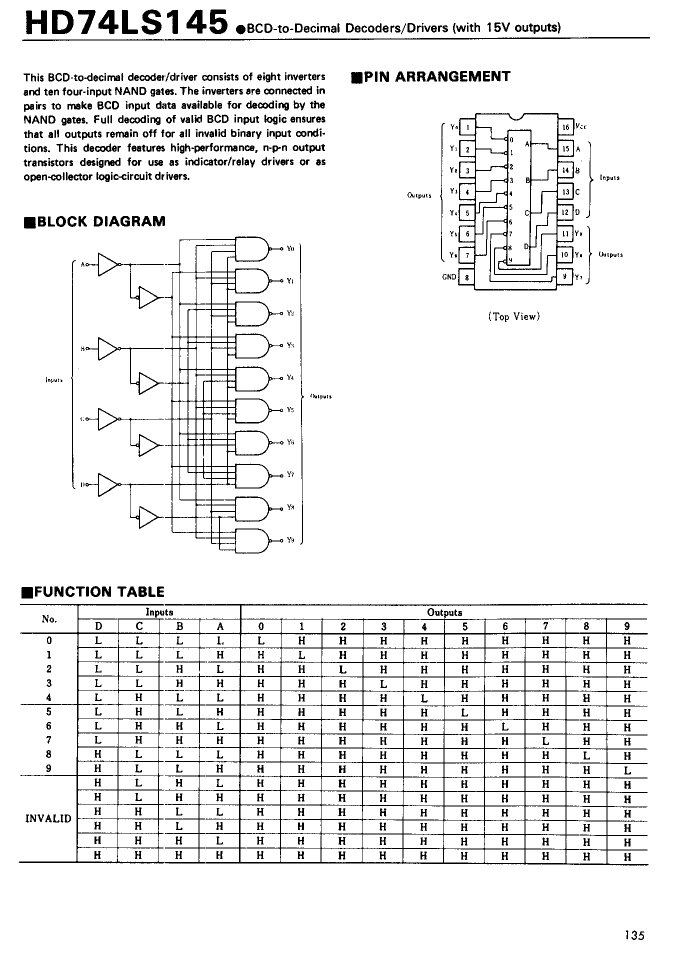

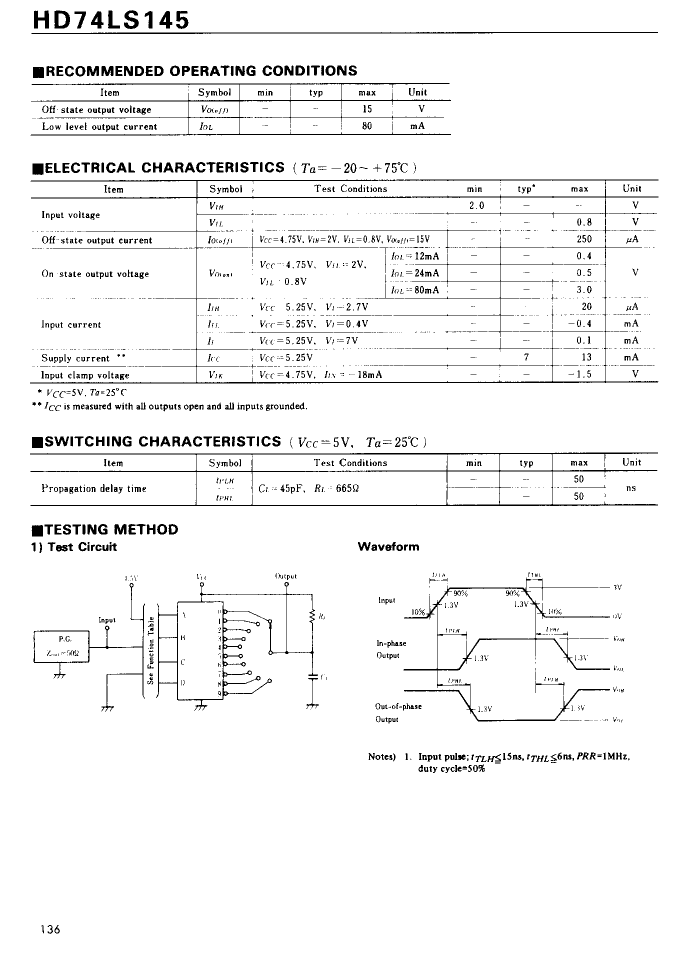

HD74LS145RP-EL Overview

LS SERIES, DECIMAL DECODER/DRIVER, INVERTED OUTPUT, PDSO16, SOP-16

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	SOIC
package instruction	SOP-16
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
series	LS
Input adjustment	STANDARD
JESD-30 code	R-PDSO-G16
length	9.9 mm
Logic integrated circuit type	DECIMAL DECODER/DRIVER
Number of functions	1
Number of terminals	16
Output characteristics	OPEN-COLLECTOR
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	50 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.95 mm
Base Number Matches	1

	HD74LS145RP-EL	HD74LS145FP-EL
Description	LS SERIES, DECIMAL DECODER/DRIVER, INVERTED OUTPUT, PDSO16, SOP-16	LS SERIES, DECIMAL DECODER/DRIVER, INVERTED OUTPUT, PDSO16, SOP-16
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	SOIC	SOIC
package instruction	SOP-16	SOP-16
Contacts	16	16
Reach Compliance Code	unknown	unknown
series	LS	LS
Input adjustment	STANDARD	STANDARD
JESD-30 code	R-PDSO-G16	R-PDSO-G16
length	9.9 mm	10.06 mm
Number of functions	1	1
Number of terminals	16	16
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR
Output polarity	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
propagation delay (tpd)	50 ns	50 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	2.2 mm
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	TTL	TTL
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
width	3.95 mm	5.5 mm
Base Number Matches	1	1
