Data sheet
Z-series
ZDK 2.5V
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

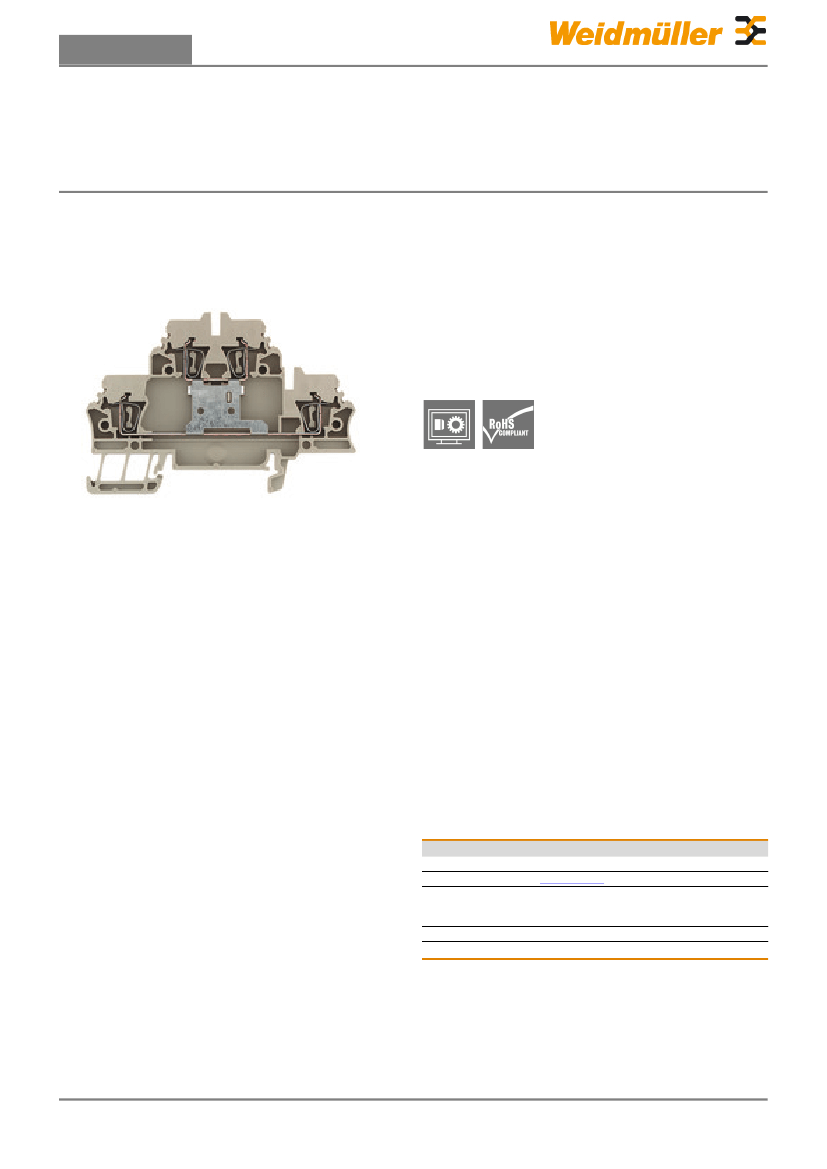

Product image
Spring connection with tension clamp Technology
Tension clamp technology is a universal contact system
for all common conductor connection types. Its fantastic
level of flexibility makes the tension clamp a profitable
alternative connection.
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
ZDK 2.5V
1689990000
Feed-through terminal, Double-tier terminal,
Tension clamp connection, 2.5 mm², 500 V, 20 A,
Dark Beige
4008190875459
50 pc(s).
Creation date November 15, 2018 8:27:41 PM CET
Catalogue status 09.11.2018 / We reserve the right to make technical changes.
1
Data sheet
Z-series
ZDK 2.5V
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
5.1 mm
79.5 mm
53 mm
54 mm
Width (inches)
Height (inches)
Depth (inches)
Net weight
Dimensions and weights
Width
Height
Depth
Depth including DIN rail
0.201 inch
3.13 inch
2.087 inch
10.56 g
Temperatures
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C
Material data
Material
UL 94 flammability rating
Wemid
V-0
Colour
Dark Beige
Rating data IECEx/ATEX
Certificate No. (ATEX)
Max. voltage (ATEX)
Wire cross section max. (ATEX)
Current (IECEX)
Operating temperature range
KEMA97ATEX4677U
440 V
2.5 mm²
20 A
For operating temperature
range see EC Design
Test Certificate / IEC Ex-
Certificate of Conformity
II 2 G D
Certificate No. (IECEX)
Current (ATEX)
Max. voltage (IECEX)
Wire cross section max. (IECEX)
Marking EN 60079-7
IECEXULD05.0009U
20 A
440 V
2.5 mm²
Ex 2014/34/EU label
Ex eb II C Gb
System specifications
Version
Tension-clamp connection,
Vertically cross-connected,
for plug-in cross-connector,
One end without
connector
2
Yes
TS 35
End cover plate required
Number of levels
Levels cross-connected internally
Mounting rail
No. of clamping points per level
PE connection
Yes
2
No
Additional technical data
Explosion-tested version
Open sides
Yes
right
Number of similar terminals
Type of mounting
1
Snap-on
CSA rating data
Certificate No. (CSA)
Current size D (CSA)
Voltage size D (CSA)
Wire cross section min. (CSA)
12400-367
10 A
300 V
26 AWG
Current size B (CSA)
Voltage size B (CSA)
Wire cross section max. (CSA)
10 A
300 V
12 AWG
Creation date November 15, 2018 8:27:41 PM CET
Catalogue status 09.11.2018 / We reserve the right to make technical changes.
2
Data sheet
Z-series
ZDK 2.5V
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
0.6 x 3.5 mm
0.05 mm²
A2
10 mm
AWG 14
2.5 mm²
0.5 mm²
0.5 mm²
2.5 mm²
Conductors for clamping (rated connection)
Blade size
Clamping range, min.
Gauge to IEC 60947-1
Stripping length
Wire connection cross section AWG,
max.
Wire connection cross section, finely
stranded, max.
Wire connection cross-section, finely
stranded with wire-end ferrules DIN
46228/1, min.
Wire connection cross-section, finely
stranded with wire-end ferrules DIN
46228/4, min.
Wire connection cross-section, solid
core, max.
Clamping range, max.
Connection direction
Number of connections
Type of connection
Wire connection cross section AWG,
min.
Wire connection cross-section, finely
stranded with wire-end ferrules DIN
46228/1, max.
Wire connection cross-section, finely
stranded with wire-end ferrules DIN
46228/4, max.
Wire connection cross-section, finely
stranded, min.
Wire connection cross-section, solid
core, min.
2.5 mm²
top
4
Tension clamp connection
AWG 24
2.5 mm²
2.5 mm²
0.5 mm²
0.5 mm²
Rating data
Rated cross-section
Rated current
Standards
Rated impulse withstand voltage
2.5 mm²
20 A
IEC 60947-7-1
6 kV
Rated voltage
Current at maximum wires
Volume resistance according to IEC
60947-7-x
Pollution severity
500 V
20 A
1.33 mΩ
3
UL rating data
Certificate No. (UR)
Conductor size Factory wiring min. (UR)
Conductor size Field wiring min. (UR)
Voltage size C (UR)
E60693
26 AWG
26 AWG
300 V
Conductor size Factory wiring max. (UR) 14 AWG
Conductor size Field wiring max. (UR) 14 AWG
Current size C (UR)
15 A
Classifications
ETIM 3.0
ETIM 5.0
UNSPSC
eClass 6.2
eClass 8.1
eClass 9.1
EC000897
EC000903
30-21-18-01
27-14-11-27
27-14-11-20
27-14-11-20
ETIM 4.0
ETIM 6.0
eClass 5.1
eClass 7.1
eClass 9.0
EC000903
EC000897
27-14-11-18
27-14-11-27
27-14-11-20
Product information
Descriptive text technical data
2.5 mm² flexible wires with wire-end ferrules are crimped with the Weidmüller PZ 6/5 crimping tool.
Creation date November 15, 2018 8:27:41 PM CET
Catalogue status 09.11.2018 / We reserve the right to make technical changes.
3
Data sheet
Z-series
ZDK 2.5V
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
Approvals
Approvals
ROHS
Conform
Downloads
Approval/Certificate/Document of
Conformity
Brochure/Catalogue
Engineering Data
Engineering Data
User Documentation
Attestation of Conformity
IECEx Certificate
ATEX Certificate
DE_PT1101_20160418_1075_ISSUE01.pdf
CAT 1 TERM 16/17 EN
EPLAN, WSCAD, Zuken E3.S
STEP
Cross Connection Guide
Safety note
Safety notice
Safety Information
Creation date November 15, 2018 8:27:41 PM CET
Catalogue status 09.11.2018 / We reserve the right to make technical changes.
4
Data sheet
Z-series
ZDK 2.5V
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Drawings
Creation date November 15, 2018 8:27:41 PM CET
Catalogue status 09.11.2018 / We reserve the right to make technical changes.
5
