PTXA3PF3203.5790MHZ datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> PTXA3PF3203.5790MHZ

Preview

PTXA3PF3203.5790MHZ: DescriptionParallel - Fundamental Quartz Crystal, 3.579MHz Nom, HC-49/US, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size288KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

PTXA3PF3203.5790MHZ Overview

Parallel - Fundamental Quartz Crystal, 3.579MHz Nom, HC-49/US, SMD, 4 PIN

PTXA3PF3203.5790MHZ Parametric

Parameter Name	Attribute value
Objectid	1261046155
package instruction	HC-49/US, SMD, 4 PIN
Reach Compliance Code	unknown
YTEOL	3
Other features	AT CUT
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.0015%
frequency tolerance	100 ppm
load capacitance	32 pF
Manufacturer's serial number	PTX
Installation features	SURFACE MOUNT
Nominal operating frequency	3.579 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L13.0XB4.83XH5.0 (mm)/L0.512XB0.19XH0.197 (inch)
Series resistance	180 Ω
surface mount	YES

Preview

Download Datasheet

View All

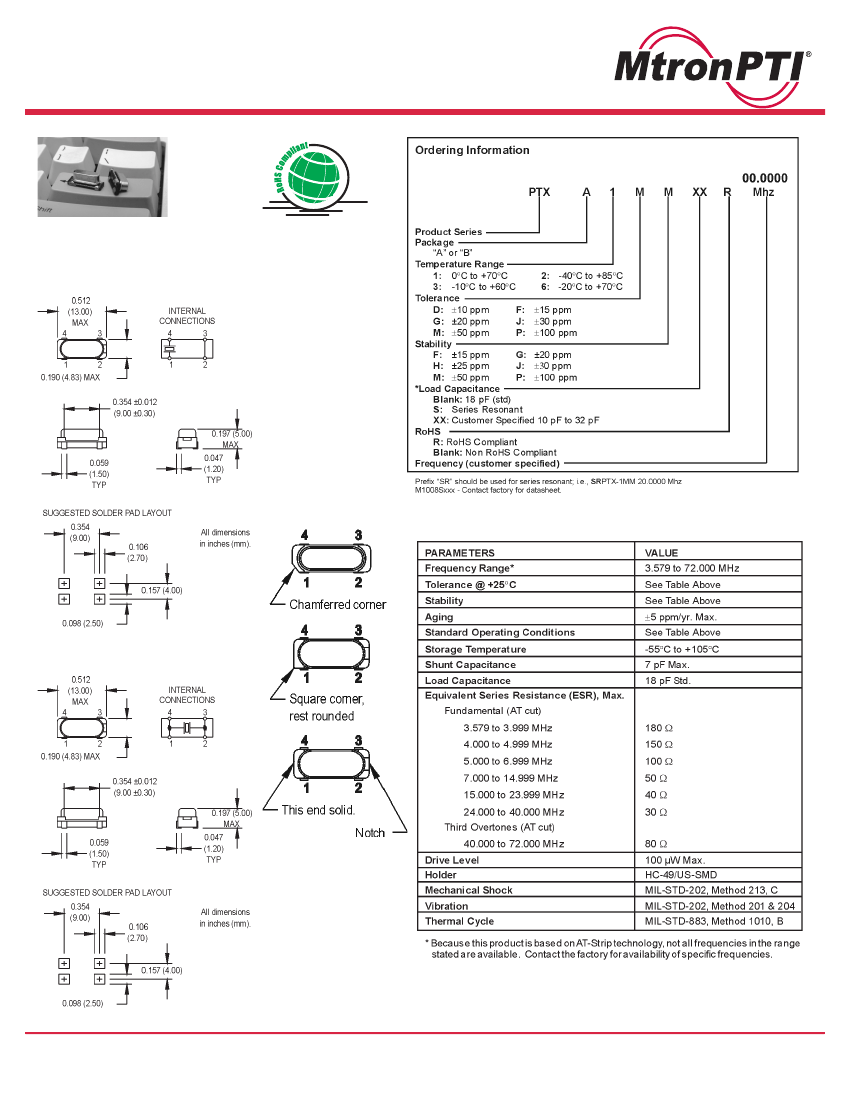

PTX Surface Mount Crystals

Package A

Possible Pin 1

Indicators

Package B

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Revision: 2-26-08
