Q19 series
Ø19 mm panel mount LED indicators

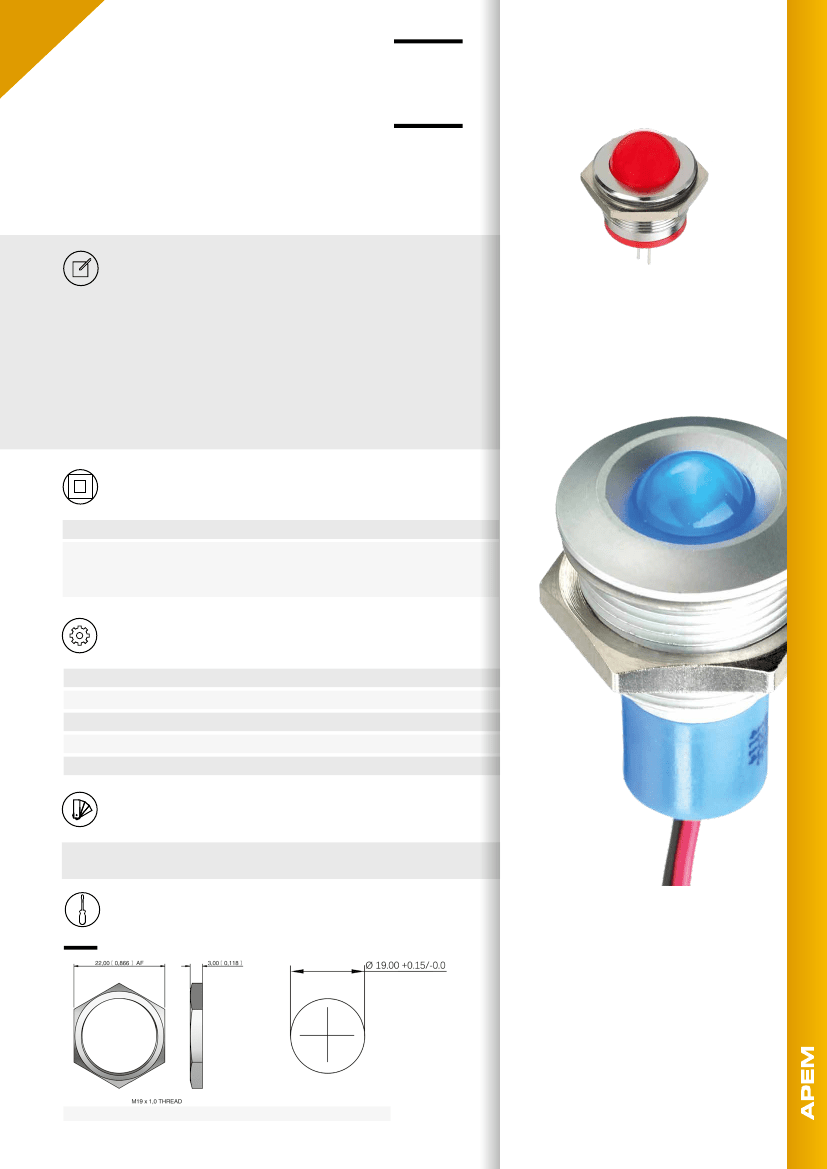

DISTINCTIVE FEATURES
10 mm colored diffused epoxy lens or 10 mm water clear
super bright LEDs
Prominent and flush bezel styles
(2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)
wire terminations
Custom engraving available
Available in RGB
ENVIRONMENTAL SPECIFICATIONS
• IP67 sealing option (EN60529)
• Operating & Storage Temperature Range:
Rear plastic body:
-30 °C to +65° C ( –22 °F to +149 °F)
Rear epoxy body:
-40 °C to +85° C ( –40 °F to +185 °F)
GENERAL SPECIFICATIONS
• Max Reverse Voltage: 5 V
• Viewing Angle: 30–100° (dependant on model)
• Life Expectancy: 100,000 hours
• Torque: 75 cNm (dependent on option)
• Maximum panel thickness 11 mm
MATERIALS
• Plated brass bezel finished in bright chrome, black or satin grey and
moulded polycarbonate rear body
MOUNTING
The company reserves the right to change specifications without notice.
All LED characteristics are dependent upon environmental conditions. Therefore published data
should be considered nominal and subject to variations.
.
1
LED INDICATORS
04
LED INDICATORS
Q19 series
Ø19 mm panel mount LED indicators
ELECTRICAL SPECIFICATIONS
STANDARD LED INTENSITY
LED COMPONENT SPECIFICATIONS
Prominent and
Recessed
HE Red
Green
Yellow
Blue
White
Orange
Bi-color (Typical)
(Red/Green)
Tri-color (Typical)
(Red/Green/Yellow)
80 mcd
60 mcd
50 mcd
540 mcd
1000 mcd
80 mcd
15/15 mcd
60/50/50 mcd
Flush
10 mcd
5 mcd
4 mcd
100 mcd
150 mcd
200 mcd
14/10 mcd
15/10/30 mcd
Forward Voltage
2.0 V
2.2 V
2.1 V
3.3 V
3.3 V
2.2 V
2.0 V/2.2 V
2.0 V/2.2 V/2.1 V
Voltage
Operating Voltage
(Min to Max)
Operating Current
(Typical All Types)
02 (No Resistor)
6 VDC
12 VDC
24 VDC
28 VDC
110 VAC
220 VAC
1.8 to 3.3 VDC
5.4 to 6.6 VDC
10.8 to 13.2 VDC
21.6 to 26.4 VDC
25.2 to 30.8 VDC
99 to 121 VAC
207 to 235 VAC
20 mA max*
20 mA
20 mA
20 mA
20 mA
6 mA
3 mA
* Customer to supply resistor for desired operating
current.
Bi-color - The color is changed by reversing the polarity of the supply voltage.
Tri-color - The indicator has red and green LEDs, when both connected yellow is produced.
ADDITIONNAL INFORMATION ON LED COMPONENTS
SUPER BRIGHT LED INTENSITY
LED COMPONENT SPECIFICATIONS
Prominent and
Recessed
HE Red
Green
Yellow
Blue
White
Orange
17,000 mcd
11,000 mcd
4,000 mcd
2,500 mcd
4,400 mcd
2,800 mcd
Flush
2,000 mcd
680 mcd
350 mcd
250 mcd
250 mcd
300 mcd
Forward Voltage
2.0 V
3.5 V
2.3 V
3.3 V
3.3 V
2.1 V
• The operating voltage must not be exceeded by
more that 10% as this will result in reduced life
expectancy
• Luminous intensity is measured at 20 mA on a
discrete led unless otherwise stated.
• Luminous intensities and color shades of white
LEDs may vary within a batch.
• Luminous intensity will be reduced with lower
operating current.
HYPER BRIGHT LED INTENSITY
LED COMPONENT SPECIFICATIONS
Prominent and
Recessed
HE Red
Green
Yellow
Orange
2,800 mcd
2,200 mcd
1,300 mcd
850 mcd
Flush
800 mcd
250 mcd
250 mcd
200 mcd
Forward Voltage
2.1 V
3.2 V
CONNECTIONS
REAR EPOXY WIRES FOR RGB OPTION
M19 x 1.0 THREAD
BLACK ANODE +VE
RED CATHODE -VE
GREEN CATHODE -VE
BLUE CATHODE -VE
2.1 V
22.0
0.866
4.8
0.187
2.0 V
RGB LED INTENSITY
ITEM
DC Forward Voltage
13.5
0.531
17.5
0.689
SYMBOL
VF(R)
VF(B/G)
Iv (Red)
CONDITION
IF=20 mA
IF=20 mA
TYP.
2.1
2.1
220 mdc
500 mdc
100 mdc
210
190
8.268
7.480
Luminous Intensity
Iv (Green)
Iv (Blue)
2
Q19 series
Ø19 mm panel mount LED indicators
BUILD YOUR PART NUMBER
Q
SERIES
MOUNTING HOLE
BEZEL STYLE
Metal
TERMINALS
BEZEL FINISH
Rear epoxy Wires
Short body Pins
Short body Wires
Metal
19
Ø19 mm
P
R
F
EP
Prominent
Recessed
Flush
Extra Prominent
1
2
3
4
Solder Lug/ Fastons
(2.8 x 0.8)
Pins
Wires
Rear epoxy Pins
5
6
7
C
B
G
Bright Chrome
Black
Satin Grey
TYPE OF ILLUMINATION
LED COLOR
VOLTAGE
SEALING
XX
KK
YY
ZZ
Fixed Light
Flashing Light
(12 V – 28 VDC)
Bi-color
Tri-color
R
G
Y
B
W
O
HR
Red
Green
Yellow
Blue
White
Orange
Hyper Bright
Red
HG
HY
HO
SR
SG
SY
Hyper Bright
Green
Hyper Bright
Yellow
Hyper Bright
Orange
Super Bright
Red
Super Bright
Green
Super Bright
Yellow
SB
SW
SW
RG
RY
GY
RYG
RGB
Super bright
blue
Super bright
white
Super bright
Orange
Red/green
Red/yellow
Green/yellow
Red/yellow/
green
Red/Green/
Blue*
02
06
12
12A
24
24A
28
28A
110
220
no resistor**
6 VDC
12 VDC
12 VAC/DC
24 VDC
24 VAC/DC
28 VDC
28 VAC/DC
110 VAC
220 VAC
(Blank)
E
Unsealed
IP67
(Blank)
Common cathode
Common anode
-CA
ABOUT THIS SERIES
* Terminals option 5 and
common anode only
** please refer to the
forward voltage in electrical
specifications
Notice:
please note that not all combinations of above numbers are available.
• Gold faston terminal denotes anode (+), silver terminal denotes
cathode (-)
• Standard wire length is 200 mm, 22 AWG UL1007, red wire
denotes anode (+), black wire denotes cathode (-) for other wire
lengths consult APEM
• 110 VAC and 220 VAC, short body terminal options, 5, 6 and 7
please consult the factory
• Bi-color leds, by connecting the gold faston (+) one color
is produced, by reversing the supply voltage another color is
produced – bi-colors are available up to 28 VDC
• Take care when soldering to the faston terminals (recommended
solder temperature 300 °C - 3 sec)
• Short body pins and wires are only available up to 28 VDC
• The tri-color led has red and green leds when both are
connected yellow is produced
• Standard tri-color faston terminals are two anodes (+) and one
cathode (-)
• Tri-color wires are one red (+) and one green (+) anode and one
black (-) cathode
• Tri-color pins are center (–) cathode, shortest (+) anode pin
green, longest (+) anode pin red
• We recommend using hyperbright or superbright leds for use at
110 VAC and 220 VAC
• For leds with alternative voltages and for multi-voltage options
please consult APEM
3
LED INDICATORS
LED INDICATORS
Q19 series
Ø19 mm panel mount LED indicators

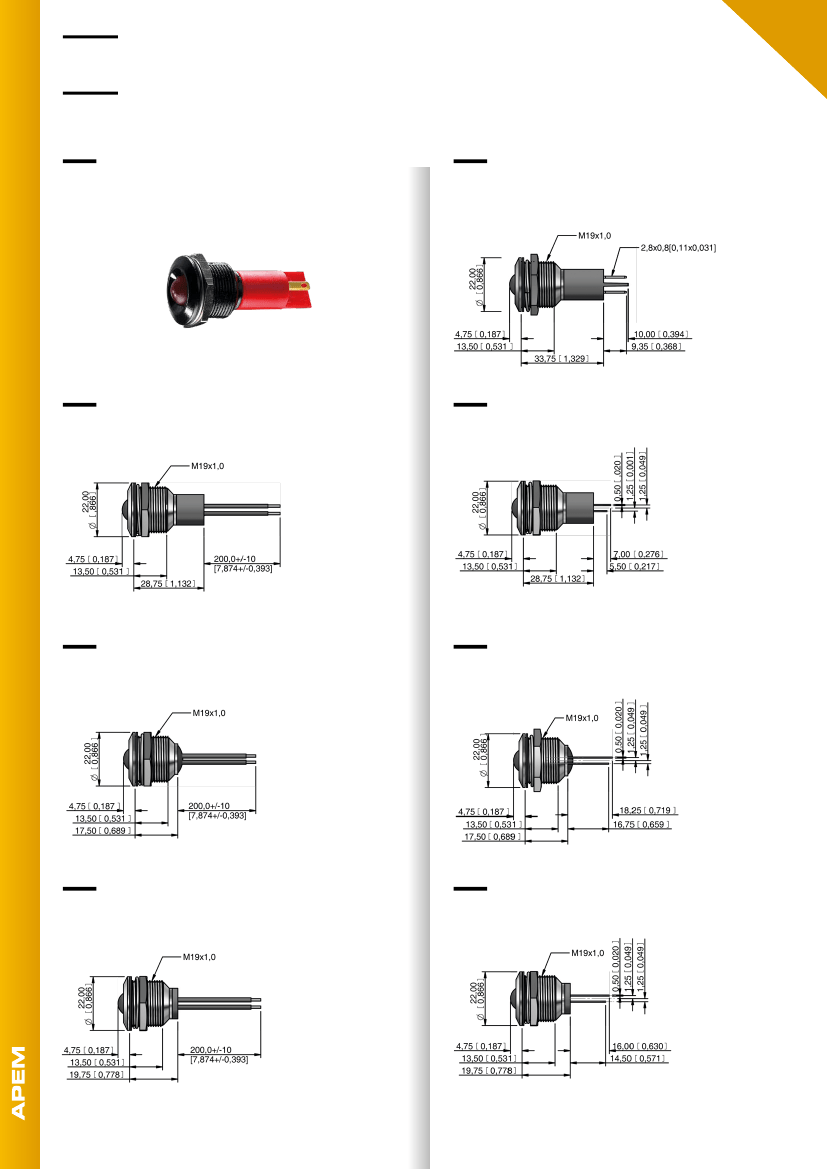

PROMINENT BEZEL
SOLDER LUG/FASTON
WIRES
PINS
REAR EPOXY WIRES
REAR EPOXY PINS
SHORT BODY WIRES
SHORT BODY PINS
4

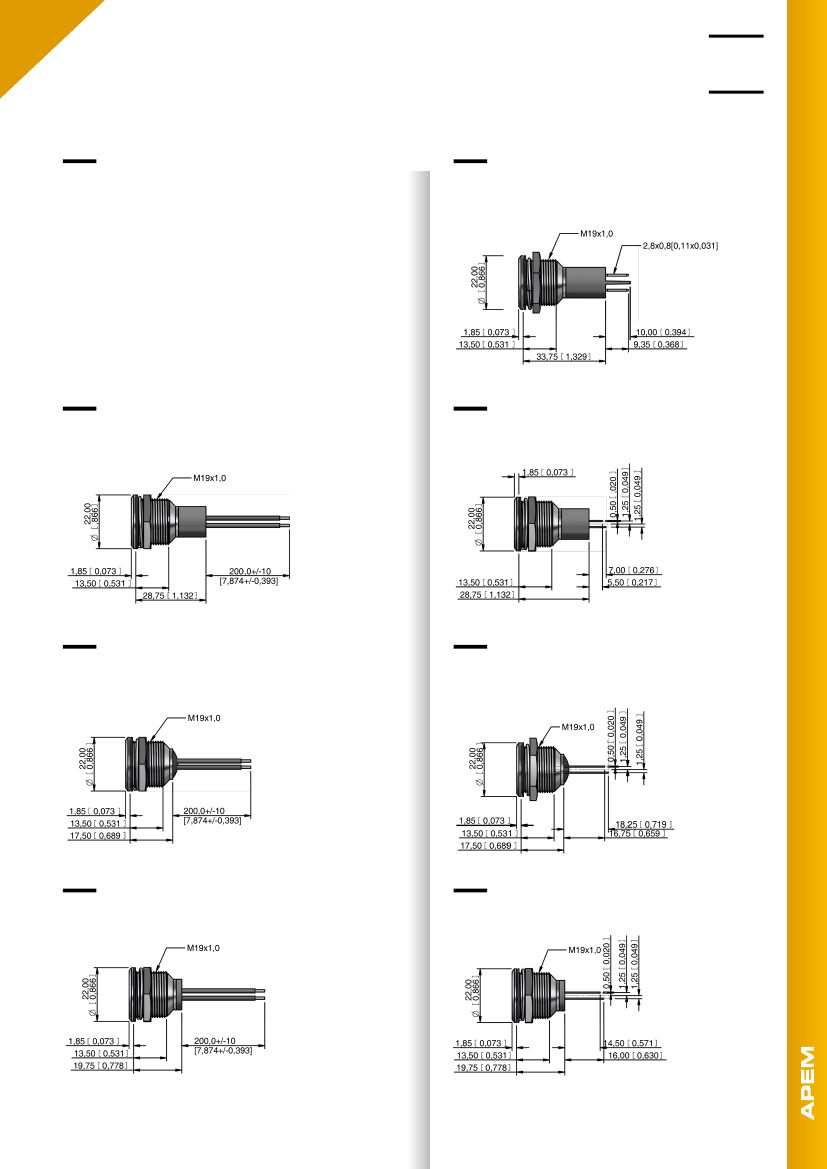

Q19 series
Ø19 mm panel mount LED indicators
FLUSH BEZEL
SOLDER LUG/FASTON
WIRES
PINS
REAR EPOXY WIRES
REAR EPOXY PINS
SHORT BODY WIRES
SHORT BODY PINS
5
LED INDICATORS
