Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.50 mm (0.138 inch) 2-row | Solder-
connection pin headers | S2L 3.5/90 | S2L 3.5/90F
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Fitted to PCB
Outgoing elbow
Pitch
Pitch in inch
No. of poles
Solder pin length
Can be coded
No. of rows
No. of solder pins per pole
Dia. of fitting hole
Fitting hole tolerance
L1 in mm
L1 in inch
Electric shock protection to DIN VDE 0470
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
Contact surface
1728480000

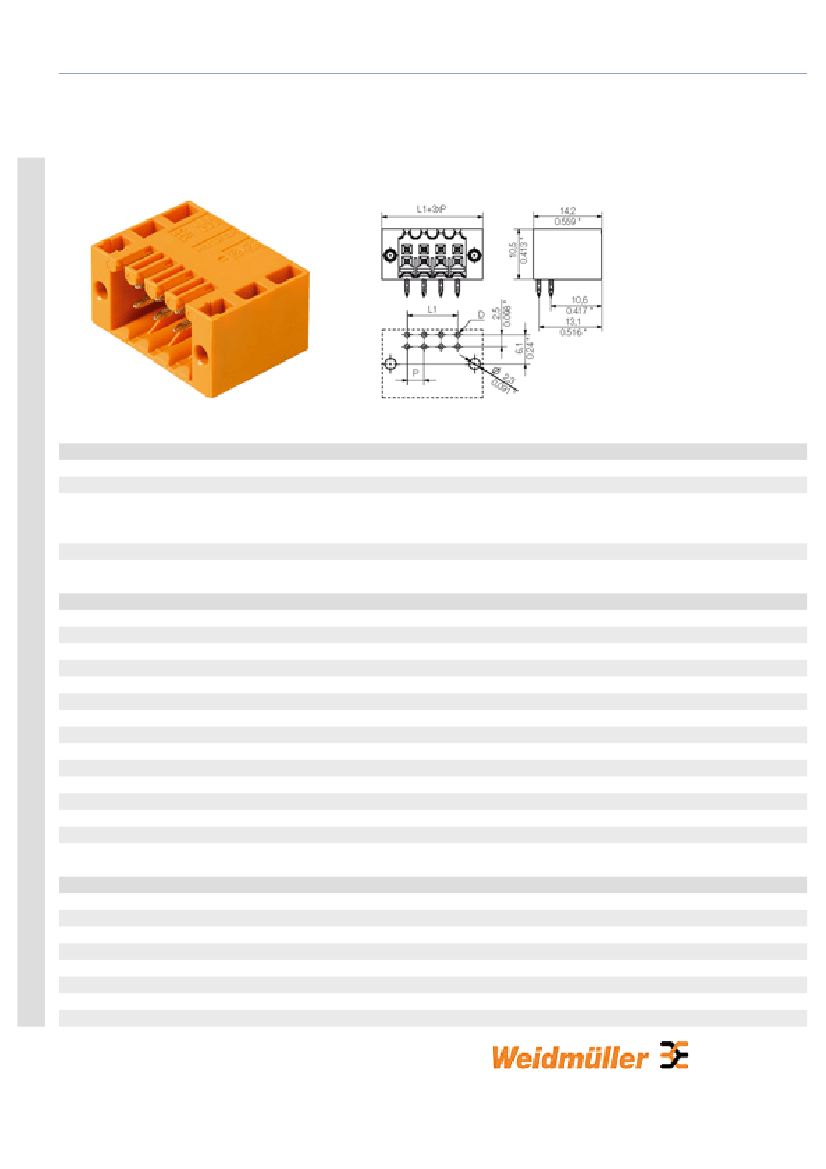

S2L 3.5/8/90F 3.5SN OR
PCB plug-in connector, Male connectors, Soldered
connection, Pitch: 3.50 mm, No. of poles: 8, 90°,
Box
4032248036370
50 pc(s).
Soldered connection
90°
3.5 mm
0.138 inch
8
3.5 mm
Yes
2
1
1.3 mm
+ 0.1 mm
10.5 mm
0.413 inch
IP 10
Safe from back-of-hand touch
PBT
orange
Similar to RAL 2000
IIIa
V-0
>= 200
Copper alloy
tinned
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.50 mm (0.138 inch) 2-row | Solder-
connection pin headers | S2L 3.5/90 | S2L 3.5/90F
Material data
Constant operating temp., min.
Constant operating temp., max.
Storage temperature, min.
Storage temperature, max.
Max. relative humidity during storage
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Rated voltage for overvoltage class/pollution
severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated voltage for overvoltage class/pollution
severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
Approvals
Approvals institutes
-25 °C
100
-25 °C
55 °C
93 %
10 A
10 A
9A
8.5 A
80 V
2.5 kV
125 V
2.5 kV
250 V
2.5 kV
3 x 1s with 77 A
50 V
5A
150 V
7A
Downloads
CAD Library (P-CAD Format - Standard)
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
S2L-SMT.LIB
NK
EC001284
27-26-07-01
27-26-07-01
27-26-07-01
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.50 mm (0.138 inch) 2-row | Solder-
connection pin headers | S2L 3.5/90 | S2L 3.5/90F
Similar products
Order No.
1728470000
1728630000
1756000000
1756160000
1728640000
1756010000
1728490000
1728650000
1756020000
1756180000
1728500000
1728660000
1756190000
1728510000
1728670000
1728520000
1728680000
1756050000
1756210000
1728530000
1728690000
1756060000
1728540000
1728700000
Part designation
S2L 3.5/6/90F 3.5SN OR
S2L 3.5/6/90F 3.5SN SW
S2L 3.5/6/90F 3.5AU OR
S2L 3.5/6/90F 3.5AU SW
S2L 3.5/8/90F 3.5SN SW
S2L 3.5/8/90F 3.5AU OR
S2L 3.5/10/90F 3.5SN OR
S2L 3.5/10/90F 3.5SN SW
S2L 3.5/10/90F 3.5AU OR
S2L 3.5/10/90F 3.5AU SW
S2L 3.5/12/90F 3.5SN OR
S2L 3.5/12/90F 3.5SN SW
S2L 3.5/12/90F 3.5AU SW
S2L 3.5/14/90F 3.5SN OR
S2L 3.5/14/90F 3.5SN SW
S2L 3.5/16/90F 3.5SN OR
S2L 3.5/16/90F 3.5SN SW
S2L 3.5/16/90F 3.5AU OR
S2L 3.5/16/90F 3.5AU SW
S2L 3.5/18/90F 3.5SN OR
S2L 3.5/18/90F 3.5SN SW
S2L 3.5/18/90F 3.5AU OR
S2L 3.5/20/90F 3.5SN OR
S2L 3.5/20/90F 3.5SN SW
Version
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 6, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 6, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 6, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 6, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 8, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 8, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 10, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 10, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 10, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 10, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 12, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 12, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 12, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 14, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 14, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 16, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 16, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 16, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 16, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 18, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 18, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 18, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 20, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 20, 90°, Box
-3-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.50 mm (0.138 inch) 2-row | Solder-
connection pin headers | S2L 3.5/90 | S2L 3.5/90F
1756070000
1756230000
1728550000
1756240000
1728560000
1728720000
1756090000
1756250000
1728570000
1756100000
1756260000
1728580000
1728740000
1728590000
1728600000
1728760000
1756130000
1728610000
1756300000
1728620000
1728780000
1756150000
1756310000
S2L 3.5/20/90F 3.5AU OR
S2L 3.5/20/90F 3.5AU SW
S2L 3.5/22/90F 3.5SN OR
S2L 3.5/22/90F 3.5AU SW
S2L 3.5/24/90F 3.5SN OR
S2L 3.5/24/90F 3.5SN SW
S2L 3.5/24/90F 3.5AU OR
S2L 3.5/24/90F 3.5AU SW
S2L 3.5/26/90F 3.5SN OR
S2L 3.5/26/90F 3.5AU OR
S2L 3.5/26/90F 3.5AU SW
S2L 3.5/28/90F 3.5SN OR
S2L 3.5/28/90F 3.5SN SW
S2L 3.5/30/90F 3.5SN OR
S2L 3.5/32/90F 3.5SN OR
S2L 3.5/32/90F 3.5SN SW
S2L 3.5/32/90F 3.5AU OR
S2L 3.5/34/90F 3.5SN OR
S2L 3.5/34/90F 3.5AU SW
S2L 3.5/36/90F 3.5SN OR
S2L 3.5/36/90F 3.5SN SW
S2L 3.5/36/90F 3.5AU OR
S2L 3.5/36/90F 3.5AU SW
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 20, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 20, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 22, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 22, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 24, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 24, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 24, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 24, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 26, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 26, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 26, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 28, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 28, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 30, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 32, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 32, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 32, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 34, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 34, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 36, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 36, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 36, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 36, 90°, Box
-4-
