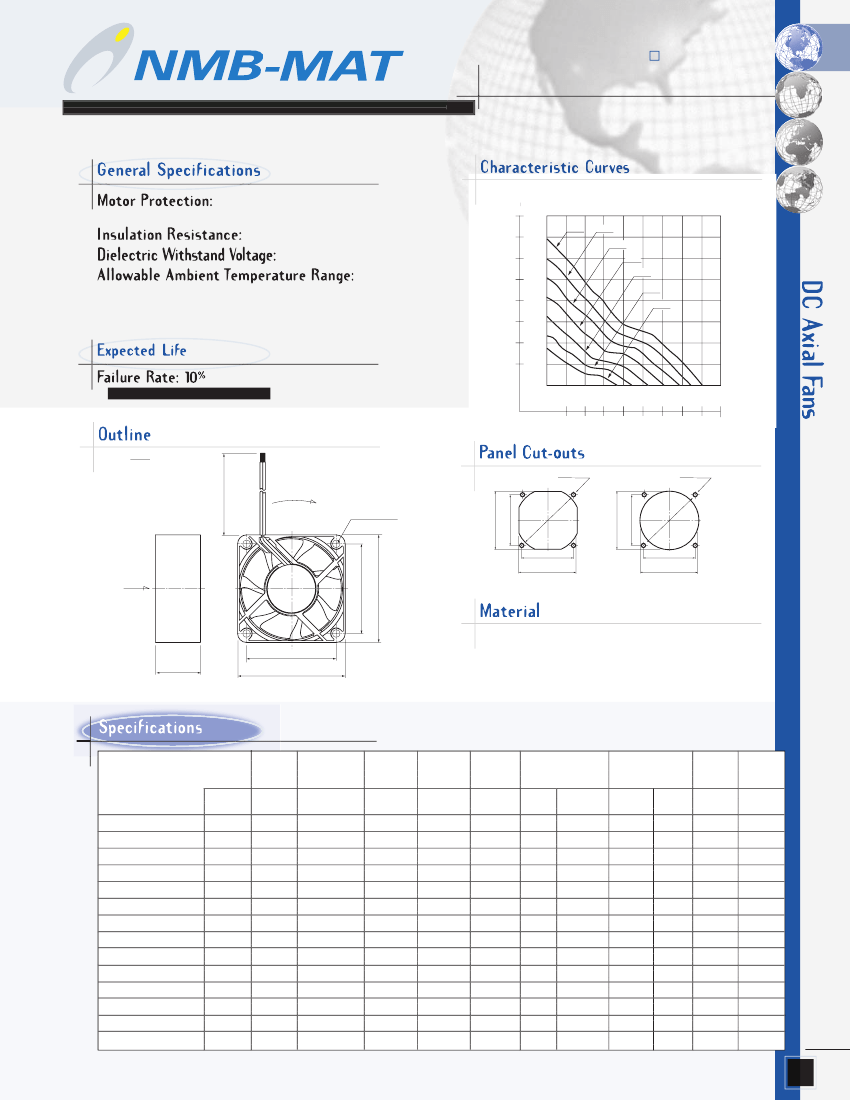

2410RL-04W-B59-C00 datasheet, PDF

Datasheet> All Categories > Thermal management products> 2410RL-04W-B59-C00

2410RL-04W-B59-C00: Descriptionfan DC axial 60x25 12v lock rtr; CategoryThermal management products; File Size359KB，1 Pages; ManufacturerNMB ( Minebea ); Websitehttp://www.nmbtc.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2410RL-04W-B59-C00 Overview

fan DC axial 60x25 12v lock rtr

2410RL-04W-B59-C00 Parametric

Parameter Name	Attribute value
Datasheets
2410RL
DC Axial Fan Part Numbering Guide
Fans & Blowers Catalog
Product Photos
2410RL-04W-B59-C00
Other Related Documents
Fan Agency Approvals
Standard Package	180
Category	Fans, Thermal Manageme
Family	DC Fans
Voltage - Rated	12VDC
Size / Dimensi	Square - 60mm L x 60mm H x 25mm W
Air Flow	24.0 CFM (0.680m³/min)
Static Pressure	0.206 in H2O (51.3 Pa)
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Locked Rotor Sens
Noise	33.5 dB
Power (Watts)	1.80W
RPM	4500 RPM
Terminati	3 Wire Leads
Ingress Protecti	-
Weigh	0.143 lb (64.86g)
Operating Temperature	14 ~ 158°F (-10 ~ 70°C)
Current Rating	0.150A
Voltage Range	6 ~ 13.8VDC
Life Expectancy	40000 hrs @ 25°C
Material - Frame	Plastic
Material - Blade	Plastic
Associated Produc	8467K-ND - GUARD FAN FOR 2 1/2" FAN PLASTIC8465K-ND - GUARD ASSY 2.36"SQ FOR 2 1/2"FAN
Other Names	2410RL04WB59C00P13403

Preview

Download Datasheet

View All

(60

)

2410RL

EMINEBEA.COM

In H

(Pa)

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8 0.9

/min)

B70

B60

B50

B40

B30

B20

B10

Auto Restart/Polarity Protection

10M Ω or over with a DC500V Megger

AC 700V 1s

Static Pressure

.32

.28

.24

.20

-10°C ~ +70°C (Operating)

-40°C ~ +70°C (Storage)

(non-condensing environment)

.16

.12

.08

.04

25°C

40,000 Hours (C00)

3.5

CFM

10.6 14.1 17.6 21.1 24.7 28.2 31.7

Air Flow

inch

Units: (mm)

min 300

.169

4 – (φ4.3)

.169

4 – (φ4.3)

ROTATION

2.28

(58.0)

1.97

(50.0)

.169

4 – (φ4.3

±0.2

)

AIR

NAME

1.97

(50.0

±0.3

)

2.36

(60.0

±0.5

)

1.97

(50.0)

2.28

(58.0)

INLET SIDE

2.28

(58.0)

1.97

(50.0)

56 )

2. 5.0

(

25 )

2. 7.0

(

1.97

(50.0)

2.28

(58.0)

OUTLET SIDE

PLATE

0.98

(25.0

±0.5

)

1.97

(50.0

±0.3

)

2.36

(60.0

±0.5

)

Casing : Plastic (Black) 94V-0

Impeller : Plastic (Black) 94V-0

Bearing : Ball Bearing

Lead Wire : UL1007, AWG24, +Red, -Black

Rated

Operating

Voltage

Current

Input

Power

Speed

Max.

Air Flow

Max. Static

Pressure

Noise

Mass

MODEL

Product

No.

2410RL-04W-B10-

2410RL-04W-B20-

2410RL-04W-B30-

2410RL-04W-B40-

2410RL-04W-B50-

2410RL-04W-B60-

2410RL-04W-B70-

2410RL-05W-B10-

2410RL-05W-B20-

2410RL-05W-B30-

2410RL-05W-B40-

2410RL-05W-B50-

2410RL-05W-B60-

2410RL-05W-B70-

Rotation: Clockwise

Voltage

(V)

6.0 ~ 13.8

15.0 ~ 27.6

10.0 ~ 27.6

(A)

0.05

0.08

0.10

0.12

0.15

0.20

0.27

0.04

0.05

0.07

0.08

0.09

0.10

(W)

0.60

0.96

1.20

1.56

1.80

2.40

3.24

0.96

1.20

1.68

1.92

2.16

2.40

(min

-1

)

2550

3000

3550

4050

4500

4900

5300

2550

3000

3550

4050

4500

4900

5300

CFM

/min)

in H

13.0

15.5

18.3

21.5

24.0

26.4

28.5

13.0

15.5

18.3

21.5

24.0

26.4

28.5

0.37

0.44

0.52

0.61

0.68

0.75

0.81

0.37

0.44

0.52

0.61

0.68

0.75

0.81

.06

.09

.13

.17

.20

.24

.27

.06

.09

.13

.17

.20

.24

.27

(Pa)

17.2

23.4

32.3

41.7

51.3

60.3

69.1

17.2

23.4

32.3

41.7

51.3

60.3

69.1

(dB)

19.0

22.5

27.0

30.5

33.5

36.5

38.0

19.0

22.5

27.0

30.5

33.5

36.5

38.0

(g)

X00

Airﬂow Outlet: Air Out Over Struts

*1: Average Values in Free Air

2410RL-04W-B59-C00 Related Products

	2410RL-04W-B59-C00	2410RL-04W-B79-C00	2410RL-05W-B79-C00
Description	fan DC axial 60x25 12v lock rtr	fan DC axial 60x25 12v lock rtr	fan DC axial 60x25 24v lock rtr
Standard Package	180	180	180
Category	Fans, Thermal Manageme	Fans, Thermal Manageme	Fans, Thermal Manageme
Family	DC Fans	DC Fans	DC Fans
Voltage - Rated	12VDC	12VDC	24VDC
Size / Dimensi	Square - 60mm L x 60mm H x 25mm W	Square - 60mm L x 60mm H x 25mm W	Square - 60mm L x 60mm H x 25mm W
Air Flow	24.0 CFM (0.680m³/min)	28.5 CFM (0.807m³/min)	28.5 CFM (0.807m³/min)
Static Pressure	0.206 in H2O (51.3 Pa)	0.277 in H2O (69.1 Pa)	0.277 in H2O (69.1 Pa)
Bearing Type	Ball	Ball	Ball
Fan Type	Tubeaxial	Tubeaxial	Tubeaxial
Features	Locked Rotor Sens	Locked Rotor Sens	Locked Rotor Sens
Noise	33.5 dB	38 dB	38 dB
Power (Watts)	1.80W	3.24W	2.40W
RPM	4500 RPM	5300 RPM	5300 RPM
Terminati	3 Wire Leads	3 Wire Leads	3 Wire Leads
Weigh	0.143 lb (64.86g)	0.143 lb (64.86g)	0.143 lb (64.86g)
Operating Temperature	14 ~ 158°F (-10 ~ 70°C)	14 ~ 158°F (-10 ~ 70°C)	14 ~ 158°F (-10 ~ 70°C)
Current Rating	0.150A	0.270A	0.100A
Voltage Range	6 ~ 13.8VDC	6 ~ 13.8VDC	10 ~ 27.6VDC
Life Expectancy	40000 hrs @ 25°C	40000 hrs @ 25°C	40000 hrs @ 25°C
Material - Frame	Plastic	Plastic	Plastic
Material - Blade	Plastic	Plastic	Plastic
Associated Produc	8467K-ND - GUARD FAN FOR 2 1/2" FAN PLASTIC8465K-ND - GUARD ASSY 2.36"SQ FOR 2 1/2"FAN	8467K-ND - GUARD FAN FOR 2 1/2" FAN PLASTIC8465K-ND - GUARD ASSY 2.36"SQ FOR 2 1/2"FAN	8467K-ND - GUARD FAN FOR 2 1/2" FAN PLASTIC8465K-ND - GUARD ASSY 2.36"SQ FOR 2 1/2"FAN
Other Names	2410RL04WB59C00P13403	2410RL04WB79C00P13404	2410RL05WB79C00P13405
