REVISION BC
DO NOT
SCALE FROM
THIS PRINT
SMM-1XX-XX-XX-D-XX-XX-X-XX
No OF POS PER ROW
THROUGH HOLE: -01 THRU -40
SURFACE MOUNT: -02 THUR -40
LEAD STYLE
-01: THROUGH HOLE
(C-56-01-X)
-02: SURFACE MOUNT
(C-56-02-X)
( NO. OF POS. x .0787[2.000])±.005[0.13]
(SEE NOTE 11)
N
PLATING OPTION
-S: 30μ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-F: 3μ" FLASH SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-H: 30μ" HEAVY GOLD IN CONTACT AREA,
3μ" GOLD ON TAIL
-L: 10μ" LIGHT SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-SM: 30μ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-FM: 3μ" FLASH SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
OPTION
-TR: TAPE & REEL
MAX. POSITIONS AVAILABLE:
27 VERTICAL/ 28 HORIZONTAL
(SEE SHEET 3)
OPTION 2
-P: PICK & PLACE PAD
(USE PPP-03, SEE FIG 3, SHT 2)
-K: POLYIMIDE FILM
(USE K-DOT-.217-.313-.005)
(2 POS MIN, SEE FIG 4, SHT 2)
(AVAILABLE ON LEAD STYLE -02 ONLY)
POLARIZING OPTION
INDICATE POSITION
(USE PK-07-N)
OPTION 1
-LC: LOCKING CLIP( USE 2 LC-05-TM)
(AVAILABLE ONLY WITH LEAD STYLE -02)
(SEE NOTE 5 & 12)(SEE FIG 5, SHT 2)
ROW OPTION
-D: DOUBLE ROW
(USE SMM-XX-D-S)
.1575 4.001 REF
.080 2.03 REF
C
L
"A"
SEE NOTE 6
(2 PLCS)
02
C
L
N-1
01
"A"
SMM-XX-D-S
.140 3.56 REF
.015 0.38 REF
.120 3.05
C
.0787±.0050 2.000±0.127
2 MAX SWAY
(EITHER DIRECTION)
C
.130 3.30
.020 0.51 REF
2 MAX SWAY
(EITHER DIRECTION)
( NO. OF POS. x .0787[2.000])-.0787[2.000]
(ACCUM TOL. ±.005)
C
C-56-01-X
SECTION "A"-"A"
-01: THROUGH HOLE

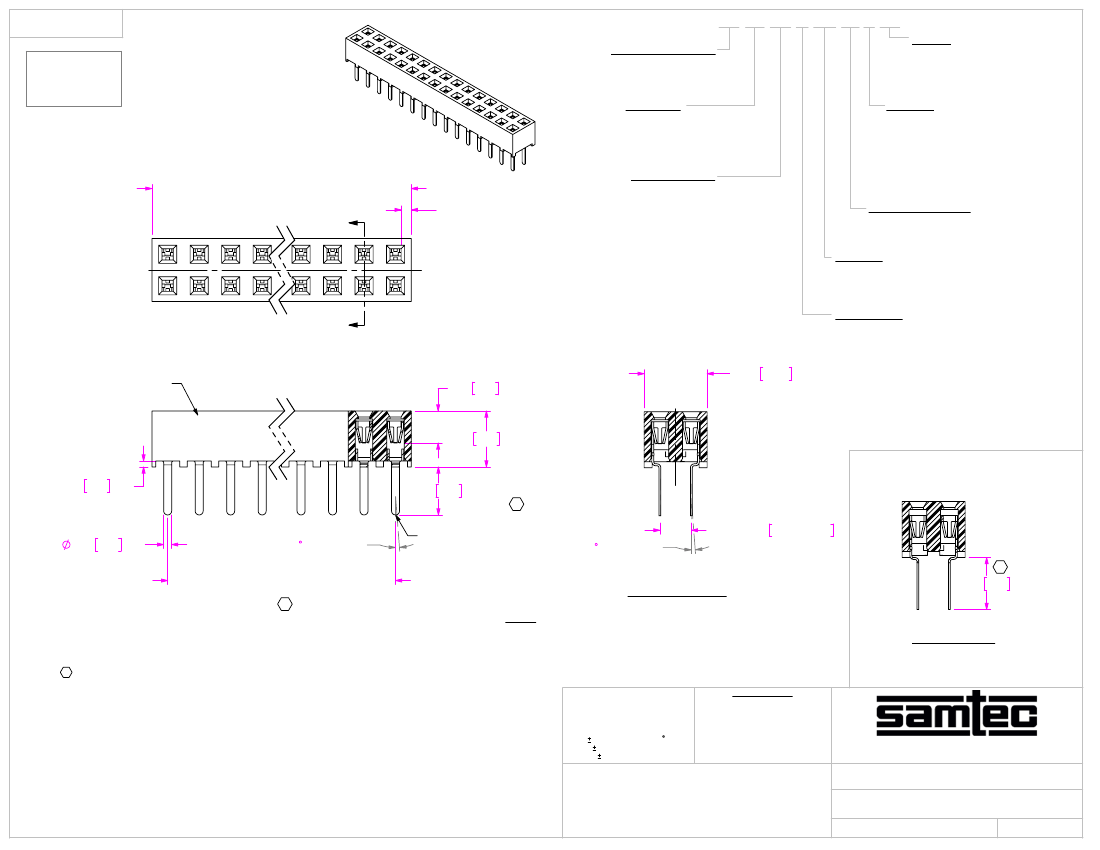

FIG 1
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. RETENTION FORCE IN BODY TO BE: 1 Ibs. MIN
3. INSERTION FORCE TO BE: 3.0 oz. MAX.
4. WITHDRAWAL FORCE TO BE: 0.5 oz. MIN.
5. "-LC" OPTION FOR A 02 POSITION WILL HAVE ONLY ONE LOCKING CLIP (LC-05-TM).
6. "END WALLS" AFTER CUTTING SHOULD BE .025±.005.
7. FOR -01 LEAD STYLE, LAYER PACKAGE POSITIONS -01 THRU -04.
8. FOR -02 LEAD STYLE WITHOUT PICK & PLACE PAD, LAYER PACKAGE POSITION -02 ONLY.
9. -02 THRU -05 POSITION WITH -K OR -P TO BE PACKAGED IN -TR ONLY. -06 THUR -40 POSITION
AVAILABLE IN TUBE OR -TR PACKAGING.
10. MAXIMUM CUT FLASH: .010[.25].
11. NO FLASH ALLOWED IN SOCKET OR EXTENDING BELOW LEADS.
12. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED. THE -LC OPTION IS
NOT COMPATIBLE WITH AUTO PLACEMENT. SAMTEC RECOMMENDS MANUAL
PLACMENT FOR ALL ASSEMBLIES WITH THE -LC OPTION.
IN-PROCESS
-01 SHOWN
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
.XX: .01 [0.3]
2
.XXX: .005 [0.13]
.XXXX: .0020 [0.051]
ANGLES
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
INSULATOR: LCP UL 94V-O, COLOR: BLACK
CONTACT:
BeCu
2 MM SOCKET STRIP
SMM-1XX-XX-XX-D-XX-XX-X-XX
04/20/2016
SHEET
1
OF
3
F:\DWG\MISC\MKTG\SMM-1XX-XX-XX-D-XX-XX-X-XX-MKT.SLDDRW
BY:
JOE Z
REVISION BC
C
2 MAX SWAY
(EITHER DIRECTION)
80
.020 0.51 REF
02
.455 11.56
C
NOTE : "R"=NO OF POS x .0787[2.000]
"S"={("R"-.394[10.01])/2} ± .020[0.51]
"R"
C
L
.225 5.72 REF
79
01
( NO. OF POS. x .0787[2.000])-.0787[2.000]
(ACCUM TOL. ±.005)
C
IN-PROCESS
-02 SHOWN
PPP-03
.080 2.03 REF
+0°
90° - 4° (TYP)
C
L
C
.145 3.68
.004[0.10]
C
.248 6.31 REF
.050 1.27
C
L
.394 10.01
REF
"S"
"B"
.140 3.56 REF
"B"

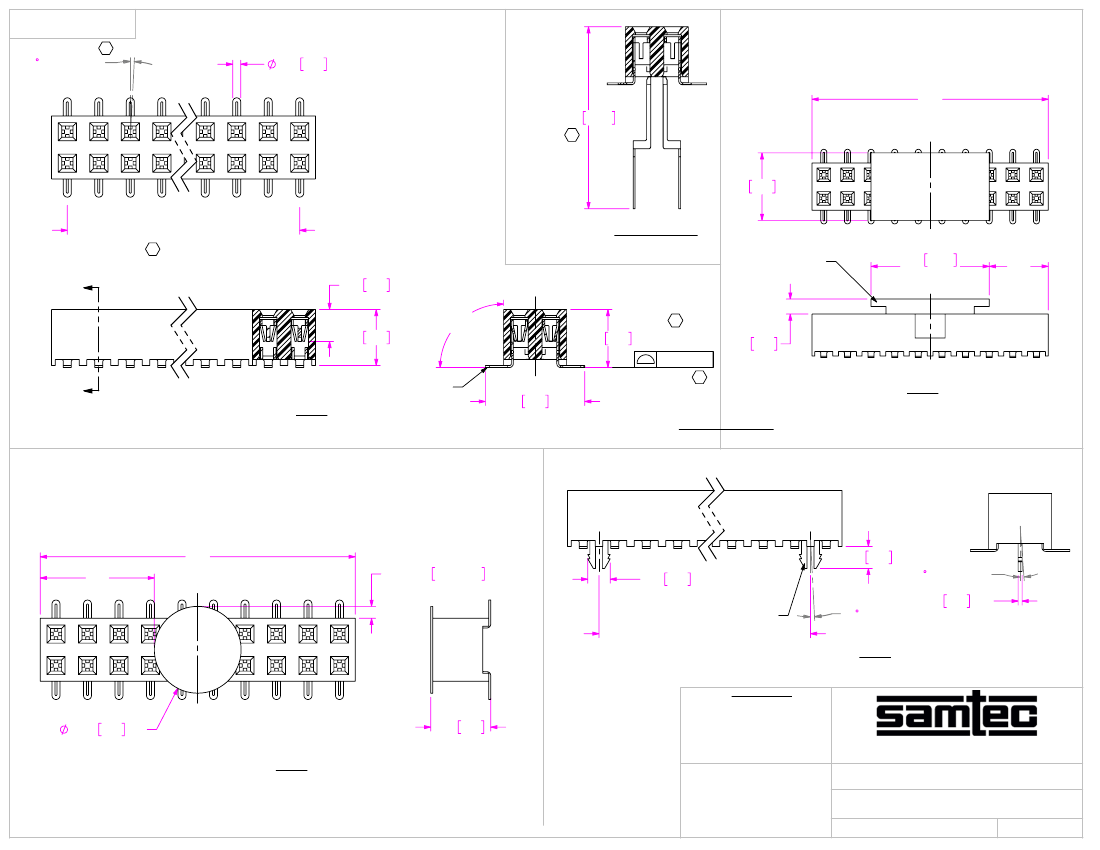

FIG 2
C-56-02-X
-02: SURFACE MOUNT
(SAME AS FIG 1, DIFFERENT AS SHOWN)
SECTION "B"-"B"
-P: PICK AND PLACE PAD
(PLACE PPP-03 ABOUT CL AS SHOWN)
(SAME AS FIG 1, DIFFERENT AS SHOWN)
(SEE NOTE 9)
FIG 3
NOTE : "R"=USED MEASURED DIMENSION (REF)
"S"={("R"-.2165[5.50])/2} ± .020[0.51]
"R"
"S"
C
L
.030±.020 0.76±0.51
.056 1.42 REF
LC-05-TM
(SEE -LC OPTION)
( NO. OF POS. x .0787[2.000])-.1575[4.00]
.055 1.40
2 MAX SWAY
(EITHER DIRECTION)
.010 0.25 REF
2 MAX SWAY
(EITHER DIRECTION)
-LC: LOCKING CLIP
(SAME AS FIG 1, DIFFERENT AS SHOWN)
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
FIG 5
*
PROPRIETARY NOTE
*
.2170 5.51 REF
.150 3.81
-K: POLYIMIDE FILM PAD
(2 POSITION MINMUM, SEE NOTE 9)
(SAME AS FIG 1, DIFFERENT AS SHOWN)
F:\DWG\MISC\MKTG\SMM-1XX-XX-XX-D-XX-XX-X-XX-MKT.SLDDRW
FIG 4
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
SHEET SCALE: 4:1
2 MM SOCKET STRIP
SMM-1XX-XX-XX-D-XX-XX-X-XX
04/20/2016
SHEET
2
OF
3
BY:
JOE Z
REVISION BC

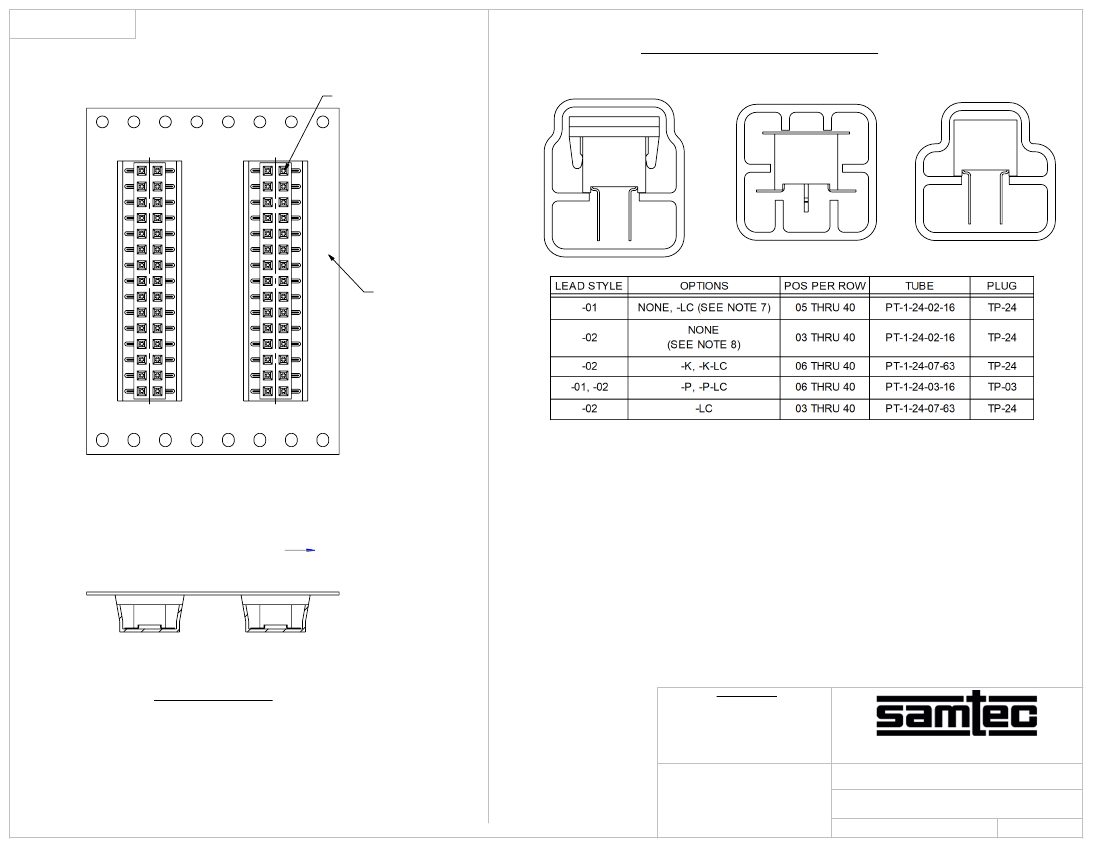

PACKAGE PARTS IN TUBES AS SHOWN
PT-1-24-03-16
POSITION 1
PT-1-24-07-63
PT-1-24-02-16
LOOSE END OF REEL
USER DIRECTION OF UN-REELING
POCKET NOT DETAILED
PACKAGING VIEW
-TR: TAPE AND REEL
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
SHEET SCALE: 4:1
2 MM SOCKET STRIP
SMM-1XX-XX-XX-D-XX-XX-X-XX
04/20/2016
SHEET
3
OF
3
F:\DWG\MISC\MKTG\SMM-1XX-XX-XX-D-XX-XX-X-XX-MKT.SLDDRW
BY:
JOE Z
