M20-8833342: DescriptionBoard Connector, 66 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket; CategoryThe connector The connector; File Size563KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric View All

M20-8833342 Overview

Board Connector, 66 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket

M20-8833342 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
Reach Compliance Code	unknown
Other features	POLARIZED
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	M20-883
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	66
Base Number Matches	1

Preview

Download Datasheet

View All

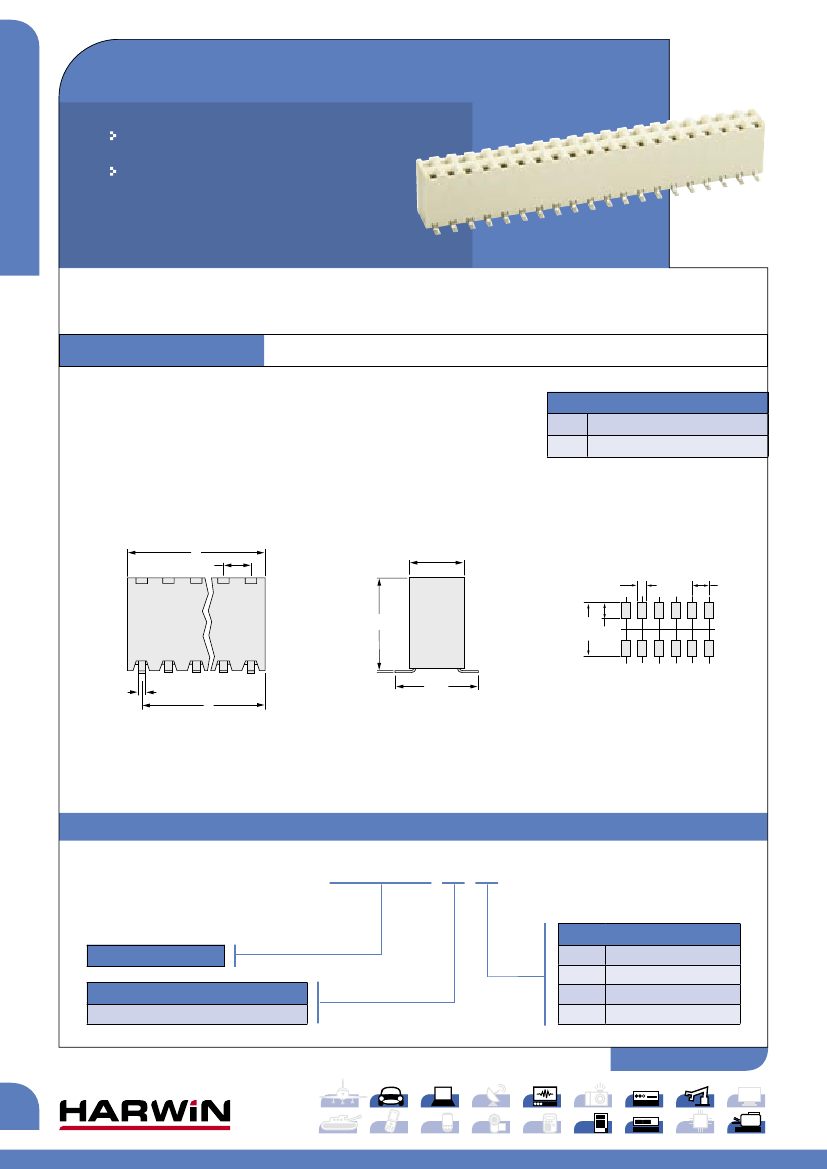

M20 Connectors

8.00

0.70 Max.

B

7.62

Recommended PC Board Pattern

HOW TO ORDER

M20 – 883 XX XX

FINISH

SERIES CODE

A

2.54

5.08 Max.

2.54

06

22

42

46

2.20

8.60 Max.

3.4

CONTACT

POINT

0.20

2.54mm (.100") PITCH

46

SMT Vertical Female Connector

Suitable for use with male connectors shown on

pages 52 to 57.

For Polarising Key use

order code M20-003.

SURFACE MOUNT SOCKET

CALCULATION

A

B

2.54 x No. of ways per row

2.54 x (No. of ways per row – 1)

A

2.54

5.08

1.27

2.54

8.60 Max.

Tin/Lead

Gold + Tin/Lead

Gold + Tin

Tin

NO. OF WAYS PER ROW

02 to 36

www.harwin.com

7.62

0.70 Max.

B
