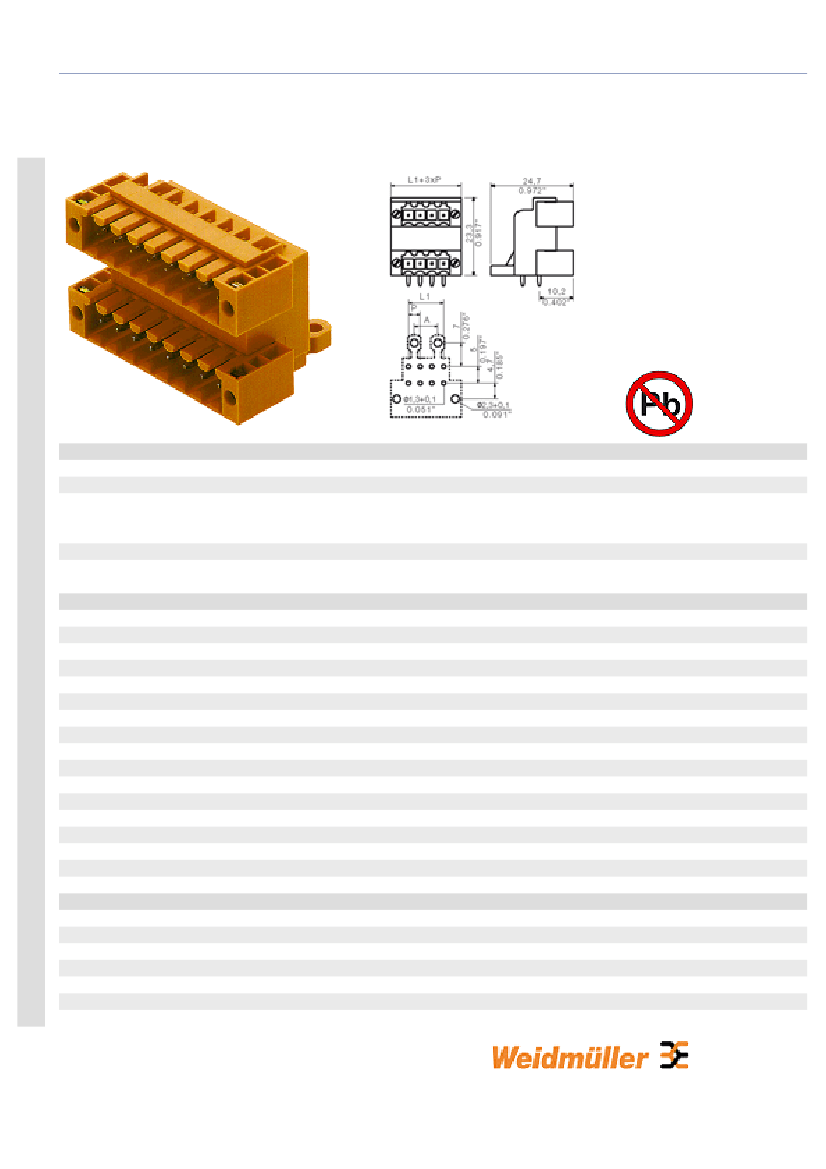

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.50 mm (0.138 inch) | Plug connectors,
solder connection, pitch 3.5 | SLD 3.5/90 | SLD 3.5/90F
Material data
Contact surface
Constant operating temp., min.
Constant operating temp., max.
Storage temperature, min.
Storage temperature, max.
Max. relative humidity during storage
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Rated voltage for overvoltage class/pollution
severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated voltage for overvoltage class/pollution
severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
Approvals
Approvals institutes
tinned
-25 °C
100
-25 °C
55 °C
80 %
10.5 A
8A
9A
7A
125 V
2.5 kV
160 V
2.5 kV
200 V
2.5 kV
3 x 1s with 80 A
300 V
8A
300 V
8A
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.50 mm (0.138 inch) | Plug connectors,
solder connection, pitch 3.5 | SLD 3.5/90 | SLD 3.5/90F
Downloads
CAD Library (P-CAD Format - Standard)
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
SLD.LIB
NK
EC001284
27-26-07-01
27-26-07-01
27-26-07-04
Similar products
Order No.
1633810000
1633820000
1633830000
1633840000
1633850000
1633860000
1633880000
1633890000
1633900000
1633910000
1633920000
1633930000
1633940000
1633950000
1633960000
1633970000
1633980000
1633990000
Part designation
SLD 3.5/4/90F3.2SN OR
SLD 3.5/6/90F3.2SN OR
SLD 3.5/8/90F3.2SN OR
SLD 3.5/10/90F3.2SN OR
SLD 3.5/12/90F3.2SN OR
SLD 3.5/14/90F3.2SN OR
SLD 3.5/18/90F3.2SN OR
SLD 3.5/20/90F3.2SN OR
SLD 3.5/22/90F3.2SN OR
SLD 3.5/24/90F3.2SN OR
SLD 3.5/26/90F3.2SN OR
SLD 3.5/28/90F3.2SN OR
SLD 3.5/30/90F3.2SN OR
SLD 3.5/32/90F3.2SN OR
SLD 3.5/34/90F3.2SN OR
SLD 3.5/36/90F3.2SN OR
SLD 3.5/38/90F3.2SN OR
SLD 3.5/40/90F3.2SN OR
Version
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 4, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 6, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 8, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 10, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 12, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 14, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 18, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 20, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 22, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 24, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 26, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 28, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 30, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 32, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 34, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 36, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 38, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 40, 90°, Box
-3-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.50 mm (0.138 inch) | Plug connectors,
solder connection, pitch 3.5 | SLD 3.5/90 | SLD 3.5/90F
1634000000
1634010000
1634020000
1634030000
SLD 3.5/42/90F3.2SN OR
SLD 3.5/44/90F3.2SN OR
SLD 3.5/46/90F3.2SN OR
SLD 3.5/48/90F3.2SN OR
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 42, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 44, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 46, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 48, 90°, Box
-4-
