A-TB500-TG13

Description
terminal block
CategoryThe connector
File Size158KB,1 Pages
ManufacturerASSMANN WSW components
Environmental Compliance
Download Datasheet Parametric View All

A-TB500-TG13 Overview

terminal block

A-TB500-TG13 Parametric

Parameter NameAttribute value
Datasheets

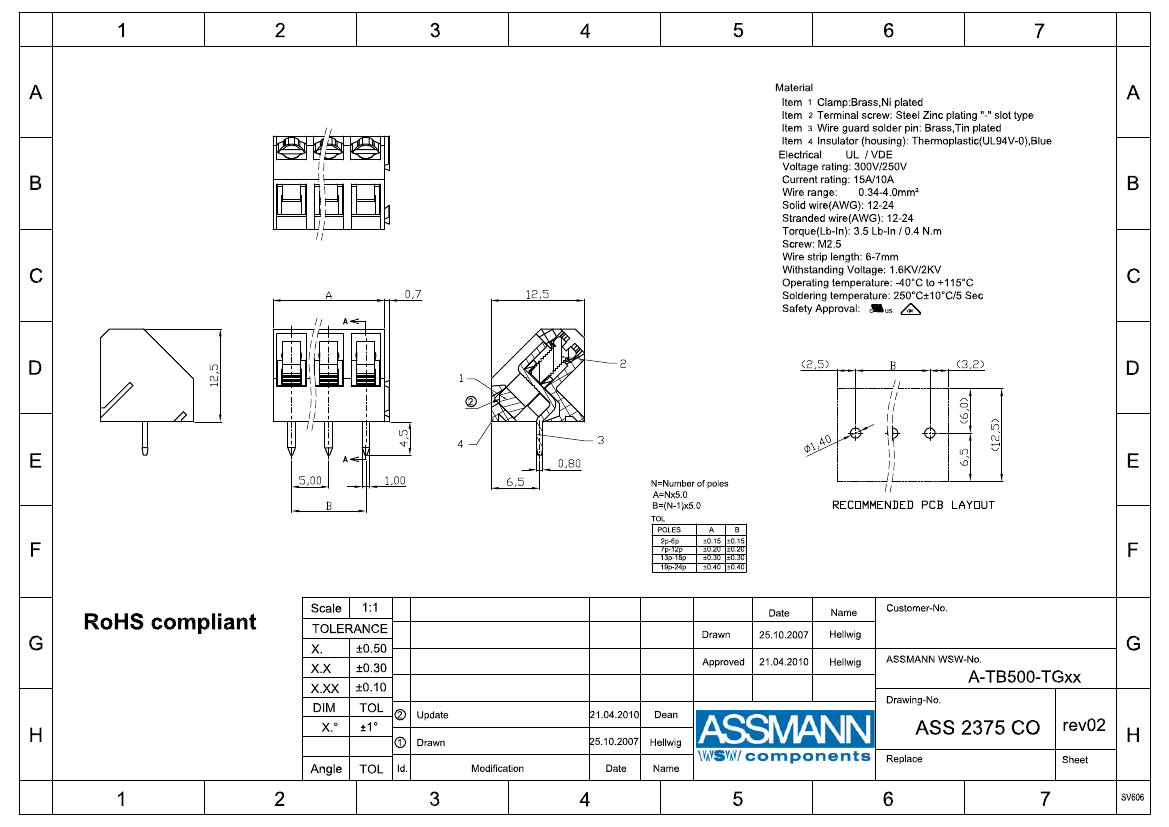

A-TB500-TGxx Drawing
Standard Package500
CategoryConnectors, Interconnects
FamilyTerminal Blocks - Wire to Board
PackagingBulk
Number of Levels1
Positions Per Level13
Pitch0.197" (5.00mm)
Mating Orientati45° (135°) Angle with Board
Curre15A
Voltage300V
Wire Gauge12-24 AWG
Mounting TypeThrough Hole
Wire TerminatiScrew - Rising Cage Clam
FeaturesInterlocking (Side)
ColBlue
Operating Temperature-40°C ~ 115°C
Housing MaterialThermoplastic
Contact Material - PlatingBrass - Tin Plated
Clamp Material - PlatingBrass - Nickel Plated
Screw Material - PlatingSteel - Zinc Plated
Torque - Screw0.4 Nm (3.5 Lb-In)
Screw ThreadM2.5
