W071-0802-201-Z datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> W071-0802-201-Z

Preview

W071-0802-201-Z: DescriptionBoard Connector, 8 Contact(s), Male, Straight, Solder Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size220KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric Compare View All

W071-0802-201-Z Overview

Board Connector, 8 Contact(s), Male, Straight, Solder Terminal, Locking, Black Insulator, Receptacle

W071-0802-201-Z Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	ROHS COMPLIANT
body width	0.469 inch
subject depth	0.504 inch
body length	0.748 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S0P8
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYAMIDE
Manufacturer's serial number	W0
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Termination type	SOLDER
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

DIM. A

DIM. D

3.00

3.01

PIN 1

PIN3

11.91

5.61

11.60

3.11

4

6

8

10

12

14

16

18

20

22

24

13.0

16.0

19.0

22.0

25.0

28.0

31.0

34.0

37.0

40.0

43.0

12.00

15.00

18.00

21.00

24.00

27.00

30.00

33.00

36.00

39.00

42.00

3.00

6.00

9.00

12.00

15.00

18.00

21.00

24.00

27.00

30.00

33.00

6.40

9.40

12.40

15.40

18.40

21.40

24.40

27.40

30.40

33.40

36.40

12.80

CONTACTS

A

B

C

D

3.30

3.95

DIMENSION(mm)

0.64 +/- 0.15 TYP.

0.15

DIM C

DIM B

1.45

1.60

0.85 +/- 1.18

TYP

3.00

1.02

3.11

OOVARIATIONS:

X

0

2

-

2

X

-

Z

RoHS COMPLIANT

ELECTRICAL:

HOW TO ORDER:

W

0

SERIES:

7

1

-

X

VOLTAGE RATING: AC/DC, 250V

CURRENT: 5 Amps

CONTACT RESISTANCE: 10m

Ω

Max.

Ω

INSULATOR RESISTANCE: 1000M

Ω

Min.

DIELECTRIC WITHSTANDING VOLTAGE: 1500VAC FOR 1 MIN.

OPERATING TEMPERATURE: -40° C TO +105° C

TYPE NUMBER:

NUMBER OF CONTACTS:

04 Thru 24

PLATING :

1 - FULL TIN

2 - FULL Au FLASH

MATERIAL:

INSULATOR: PA6T (30 % Glass Filled ) UL 94V-0 ; Black

CONTACT: Copper Alloy

MECHANICAL:

CONTACT RETENTION: 0.91Kgf MIN.

Rev

0

Issued

Apv.

A.M.

Date

06/15/05

KINKED TAIL OPTION:

ORIENTATION

0 - NONE

1 - ALL PINS KINKED (4 & 6 Position)

2 - VERTICAL

FIRST & LAST PAIR KINKED

ALL OTHER SIZES

MOUNTING OPTION:

1 - W/ PEG

2 - W/OUT PEG

SMP TECHNOLOGY, INC.

SCALE

TOL. DEC.

.X +/- 0.35

MAT'L

.XX +/- 0.25

.XXX +/-

FINISH

ANGLE +/-

UNIT: mm / in

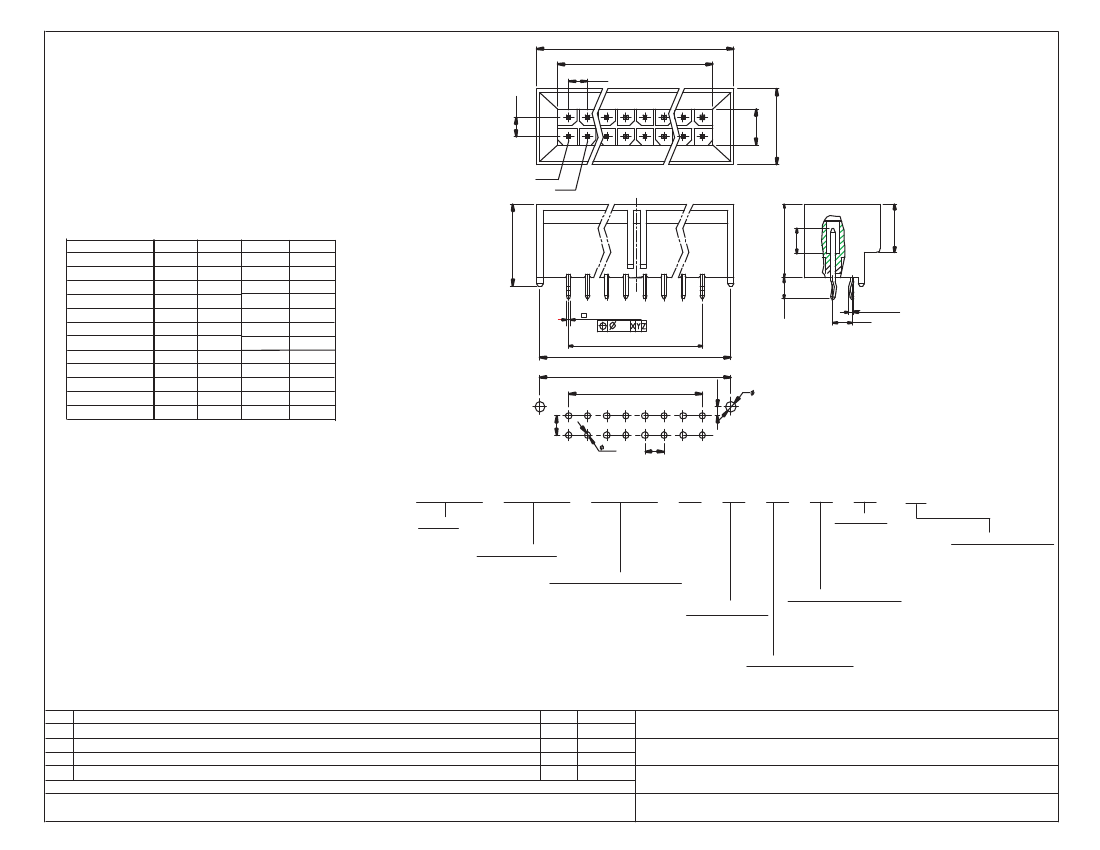

Header Assembly; Power Connector, 3.00 mm Pitch; Blind Mate; Vertical

SERIES: W 0 7 1 - X X 0 2 - 2 X X - Z

7.61

Pg: 1

W071-0802-201-Z Related Products

	W071-0802-201-Z	RDLLA4R7M25TB122X41	W071-0402-201-Z	W071-2202-201-Z	W071-2202-202-Z	W071-0802-202-Z
Description	Board Connector, 8 Contact(s), Male, Straight, Solder Terminal, Locking, Black Insulator, Receptacle	Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 4.7uF	Board Connector, 4 Contact(s), Male, Straight, Solder Terminal, Locking, Black Insulator, Receptacle	Board Connector, 22 Contact(s), Male, Straight, Solder Terminal, Locking, Black Insulator, Receptacle	Board Connector, 22 Contact(s), Male, Straight, Solder Terminal, Locking, Black Insulator, Receptacle	Board Connector, 8 Contact(s), Male, Straight, Solder Terminal, Locking, Black Insulator, Receptacle
Reach Compliance Code	unknow	unknown	unknown	unknow	unknow	unknown
Manufacturer's serial number	W0	RDLLA	W0	W0	W0	W0
Maximum operating temperature	105 °C	85 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Other features	ROHS COMPLIANT	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.469 inch	-	0.469 inch	0.469 inch	0.469 inch	0.469 inch
subject depth	0.504 inch	-	0.504 inch	0.504 inch	0.504 inch	0.504 inch
body length	0.748 inch	-	0.512 inch	1.575 inch	1.575 inch	0.748 inch
Body/casing type	RECEPTACLE	-	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S0P8	-	S0P4	S0P22	S0P22	S0P8
Contact to complete cooperation	SN	-	SN	SN	AU	AU
Contact completed and terminated	TIN	-	TIN	TIN	GOLD	GOLD
Contact point gender	MALE	-	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	-	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Contact resistance	10 mΩ	-	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V	-	1500VAC V	1500VAC V	1500VAC V	1500VAC V
Insulation resistance	1000000000 Ω	-	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	-	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYAMIDE	-	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE
Mixed contacts	YES	-	YES	YES	YES	YES
Installation option 1	LOCKING	-	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	-	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	-	ONE	ONE	ONE	ONE
Guideline	UL	-	UL	UL	UL	UL
reliability	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.13 inch	-	0.13 inch	0.13 inch	0.13 inch	0.13 inch
Termination type	SOLDER	-	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	-	4	22	22	8
