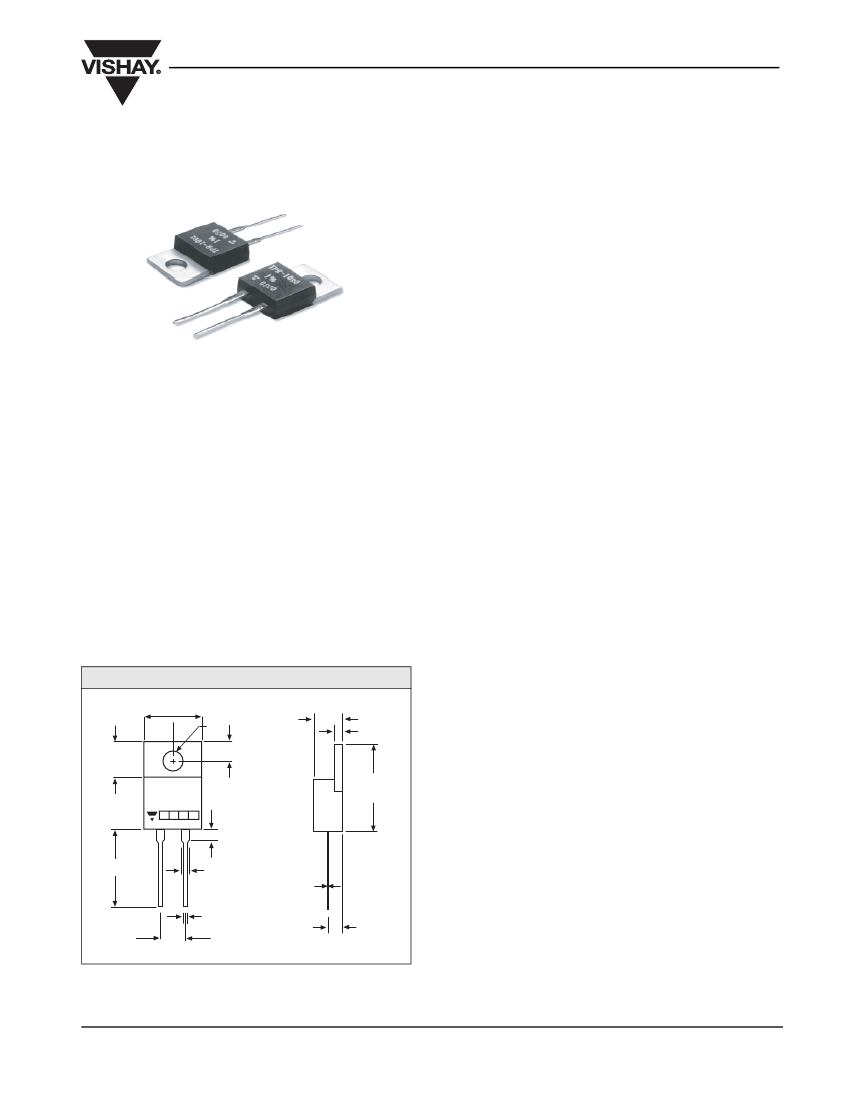

TPR
Vishay Techno
Thick Film Technology Power Resistors
20 Watt and 30 Watt TO220 Package
FEATURES
•
Available with 20 or 30 Watt power rating
•
Convenient TO220 package
•
20 Watt: Resistance range 1
Ω
to 1 MΩ
•
30 Watt: Resistance range 0.5
Ω
to 100 KΩ
•
Tolerance ± 1 % standard
•
TCR to ± 50 ppm/°C
•
Non-Inductive Design
•
Isolated electrical element
The well known TO-220 package combined with the proven
thick film technology provides you, the design engineer, with
a high reliable and cost effective solution for applications
requiring current limiting/current sensing.
The chips unique attachment to the solder coated copper
base provides a repeatable low thermal resistance path for
the energy to exit the resistor and be dissipated into the
heatsink.
The popular TO-220 package can be handled easily by the
manufacturing group.
Vishay has additional solutions when higher Technical
Performance is required such as the VPR220 and VPR221.
ELECTRICAL SPECIFICATIONS
Resistance Range:
20 Watt: 0.5
Ω
to 100 kΩ
30 Watt: 0.5
Ω
to 100 KΩ
STD Resistance Tolerance:
± 1 %, ± 2 %, ± 5 % and ± 10 %
(Tighter available)
Power Dissipation:
TRP20:
20 Watts at 25 °C with heatsink
2 ¼ Watts at 25 °C without heatsink
TPR30:
30 Watts at 25 °C with heatsink
2 ½ Watts at 25 °C without heatsink
Temperature Coefficient:
± 100 ppm/°C Std
(± 50 ppm/°C available)
Short Time Overload:
2 times rated power with applied
voltage not to exceed 375 VDC for 5 seconds
Maximum Working Voltage:
250 VDC
Limiting Element Voltage:
250 VDC
Dielectric Strength:
2000 VRMS
Insulation Resistance:
20 GΩ min
DIMENSIONS
in inches
0.400 ± 0.010
0.142 ± 0.003 DIA
0.125 ± 0.005
0.240 ± 0.010
0.580 ± 0.010
0.175 ± 0.015
0.052
± 0.003
MECHANICAL SPECIFICATIONS
Mechanical Protection:
Molded case
Resistive Element:
Thick Film
Terminals:
Tinned copper
Weight:
2 grams
TPR-XXXX
KK
0.130 ± 0.005
0.540 ± 0.040
ENVIRONMENTAL SPECIFICATIONS (TYPICAL)
0.023
± 0.002
0.050 ± 0.002
0.030 ± 0.002
0.200 ± 0.010
0.085 ± 0.010
Temperature Range:
- 55 °C to + 155 °C
Terminal Strength:
Mil-Std-202, Method 211
Thermal Shock:
Mil-Std-202, Method 107
Moisture Resistance:
Mil-Std-202, Method 106
Life:
1000 hours Mil-Std-202, 25 °C
Shock:
Mil-Std-202 Method 213
Vibration:
Mil-Std-202, Method 204
Document Number: 68018
Revision: 05-Dec-05
www.vishay.com
1
TPR
Vishay Techno
Thick Film Technology Power Resistors
20 Watt and 30 Watt TO220 Package
DERATING
155 °C
% OF RATED POWER
[Dissipation Reduction]
100 %
80 %
60 %
40 %
20 %
0
+ 25 °C + 50 °C + 75 °C + 100 °C + 125 °C + 150 °C + 175 °C
AMBIENT TEMPERATURE °C
STANDARD MILITARY PRESENTATION OF POWER DERATING
PERFORMANCE
TEST AND MIL REF.
CONDITION
TYPICAL DRIFT
Short Time Overload
2 x rated power for 5 seconds
< 0.10 %
Temperature Cycling with Power
5 cycles - 65 °C to + 125 °C, at rated power
< 0.10 %
Load Life MIL-STD 202, Method 108 and 302
1,000 hours at rated power and 25 °C ambient
< 0.25 %
Humidity (steady state)
56 days 95 % R.H.
< 0.30 %
ORDERING INFORMATION
TPR20
MODEL
XXXX
RESISTANCE VALUE
(Ohms)
(First three digits are
significant, last digit
signifies number of zeros
to follow.)
K
RESISTANCE
TOLERANCE
F=
±
1%
G=
±
2%
J=
±
5%
K =
±
10 %
K
TCR
(ppm/°C)
H =
±
50
K =
±
100 Std
M =
±
300
e3
LEAD TERMINATION
TPR20
TPR30
e3 = 95/5
www.vishay.com
2
Document Number: 68018
Revision: 05-Dec-05
