54F280B/BDA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F280B/BDA

54F280B/BDA: DescriptionIC F/FAST SERIES, 9-BIT PARITY GENERATOR/CHECKER, COMPLEMENTARY OUTPUT, CDFP14, Arithmetic Circuit; Categorylogic logic; File Size203KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54F280B/BDA Overview

IC F/FAST SERIES, 9-BIT PARITY GENERATOR/CHECKER, COMPLEMENTARY OUTPUT, CDFP14, Arithmetic Circuit

54F280B/BDA Parametric

Parameter Name	Attribute value
package instruction	DFP,
Reach Compliance Code	unknow
Other features	ODD/EVEN PARITY GENERATOR
series	F/FAST
JESD-30 code	R-CDFP-F14
Load capacitance (CL)	50 pF
Logic integrated circuit type	PARITY GENERATOR/CHECKER
Number of digits	9
Number of functions	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Maximum supply current (ICC)	35 mA
propagation delay (tpd)	12 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	FLAT
Terminal location	DUAL
Base Number Matches	1

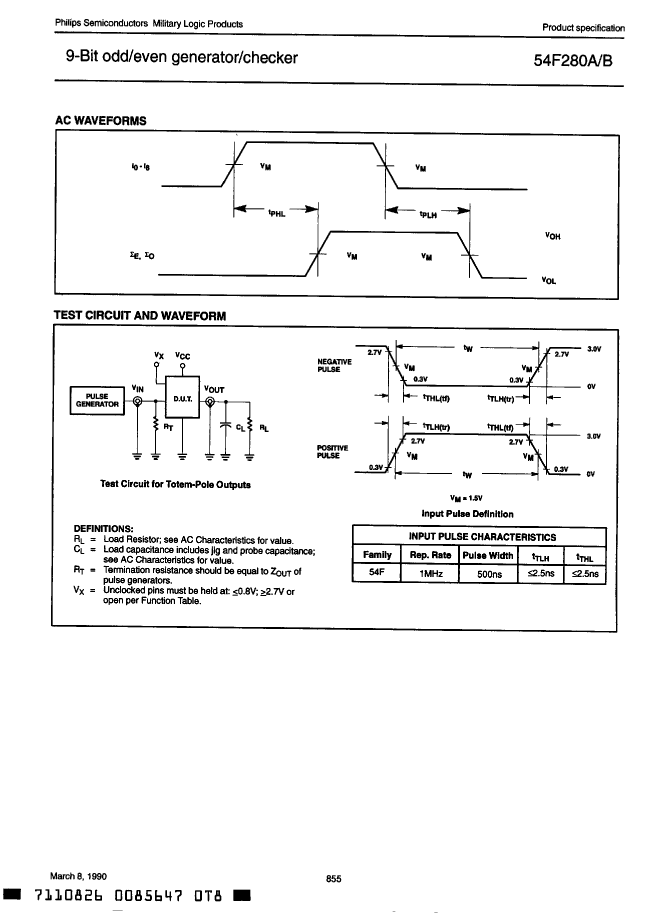

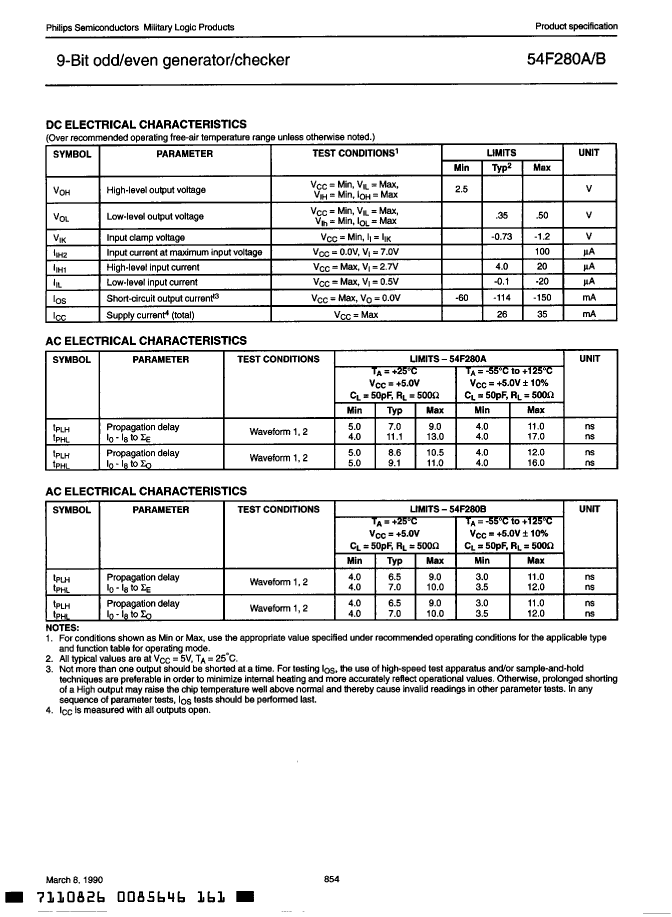

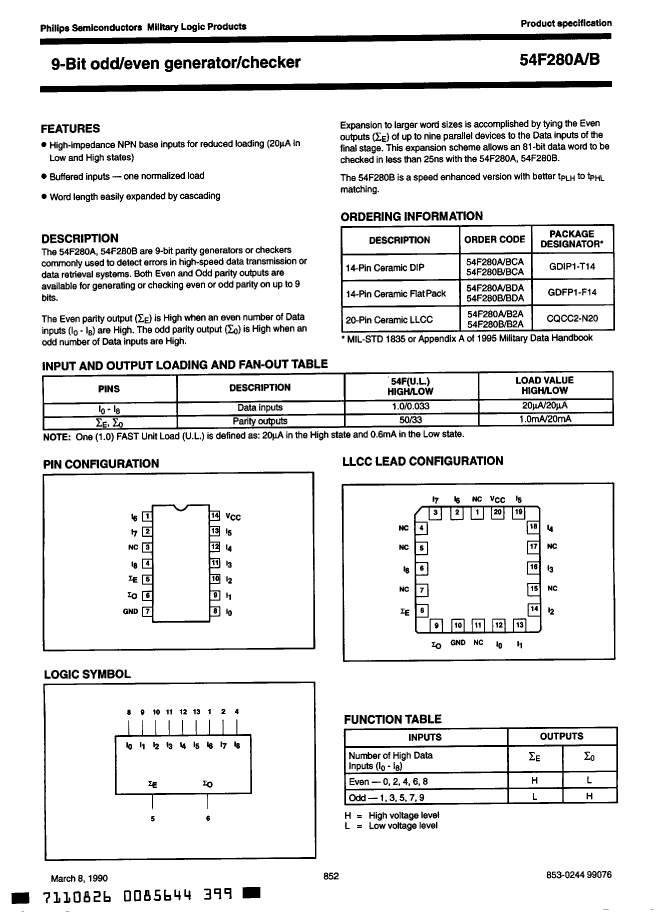

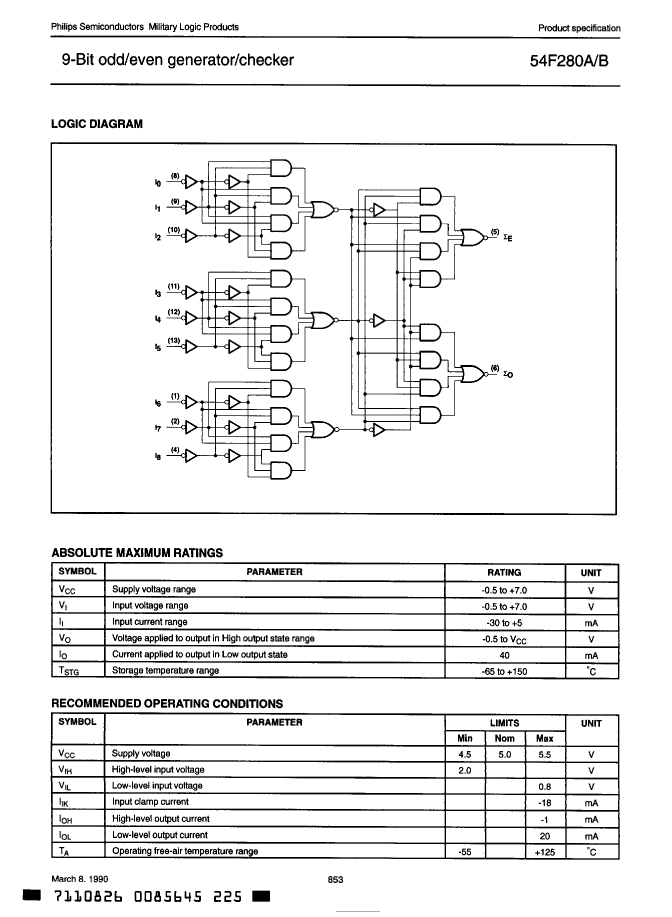

Preview

Download Datasheet

View All

54F280B/BDA Related Products

	54F280B/BDA	54F280A/BDA	54F280A/B2A	54F280A/BCA	54F280B/B2A
Description	IC F/FAST SERIES, 9-BIT PARITY GENERATOR/CHECKER, COMPLEMENTARY OUTPUT, CDFP14, Arithmetic Circuit	IC F/FAST SERIES, 9-BIT PARITY GENERATOR/CHECKER, COMPLEMENTARY OUTPUT, CDFP14, Arithmetic Circuit	IC F/FAST SERIES, 9-BIT PARITY GENERATOR/CHECKER, COMPLEMENTARY OUTPUT, CQCC20, Arithmetic Circuit	IC F/FAST SERIES, 9-BIT PARITY GENERATOR/CHECKER, COMPLEMENTARY OUTPUT, CDIP14, Arithmetic Circuit	IC F/FAST SERIES, 9-BIT PARITY GENERATOR/CHECKER, COMPLEMENTARY OUTPUT, CQCC20, Arithmetic Circuit
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown
Other features	ODD/EVEN PARITY GENERATOR	ODD/EVEN PARITY GENERATOR	ODD/EVEN PARITY GENERATOR	ODD/EVEN PARITY GENERATOR	ODD/EVEN PARITY GENERATOR
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	R-CDFP-F14	R-CDFP-F14	S-CQCC-N20	R-GDIP-T14	S-CQCC-N20
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	PARITY GENERATOR/CHECKER	PARITY GENERATOR/CHECKER	PARITY GENERATOR/CHECKER	PARITY GENERATOR/CHECKER	PARITY GENERATOR/CHECKER
Number of digits	9	9	9	9	9
Number of functions	1	1	1	1	1
Number of terminals	14	14	20	14	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DFP	QCCN	DIP	QCCN
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE
Package form	FLATPACK	FLATPACK	CHIP CARRIER	IN-LINE	CHIP CARRIER
Maximum supply current (ICC)	35 mA	35 mA	35 mA	35 mA	35 mA
propagation delay (tpd)	12 ns	17 ns	17 ns	17 ns	12 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO	YES
technology	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	FLAT	NO LEAD	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	DUAL	QUAD	DUAL	QUAD
Base Number Matches	1	1	1	1	1
package instruction	DFP,	DFP,	QCCN,	DIP,	-
