VJ1206Y105MNXAP2MP datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> VJ1206Y105MNXAP2MP

VJ1206Y105MNXAP2MP: DescriptionCeramic Capacitor, Multilayer, Ceramic, 25V, 20% +Tol, 20% -Tol, X7R, -/+15ppm/Cel TC, 1uF, 1206,; CategoryPassive components capacitor; File Size169KB，15 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

VJ1206Y105MNXAP2MP Overview

Ceramic Capacitor, Multilayer, Ceramic, 25V, 20% +Tol, 20% -Tol, X7R, -/+15ppm/Cel TC, 1uF, 1206,

VJ1206Y105MNXAP2MP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7135411555
package instruction	, 1206
Reach Compliance Code	compliant
Country Of Origin	Israel
ECCN code	EAR99
YTEOL	7.75
capacitance	1 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.7 mm
JESD-609 code	e4
length	3.2 mm
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, Paper, 13 Inch
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
size code	1206
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Silver/Palladium (Ag/Pd)
width	1.6 mm

Preview

Download Datasheet

View All

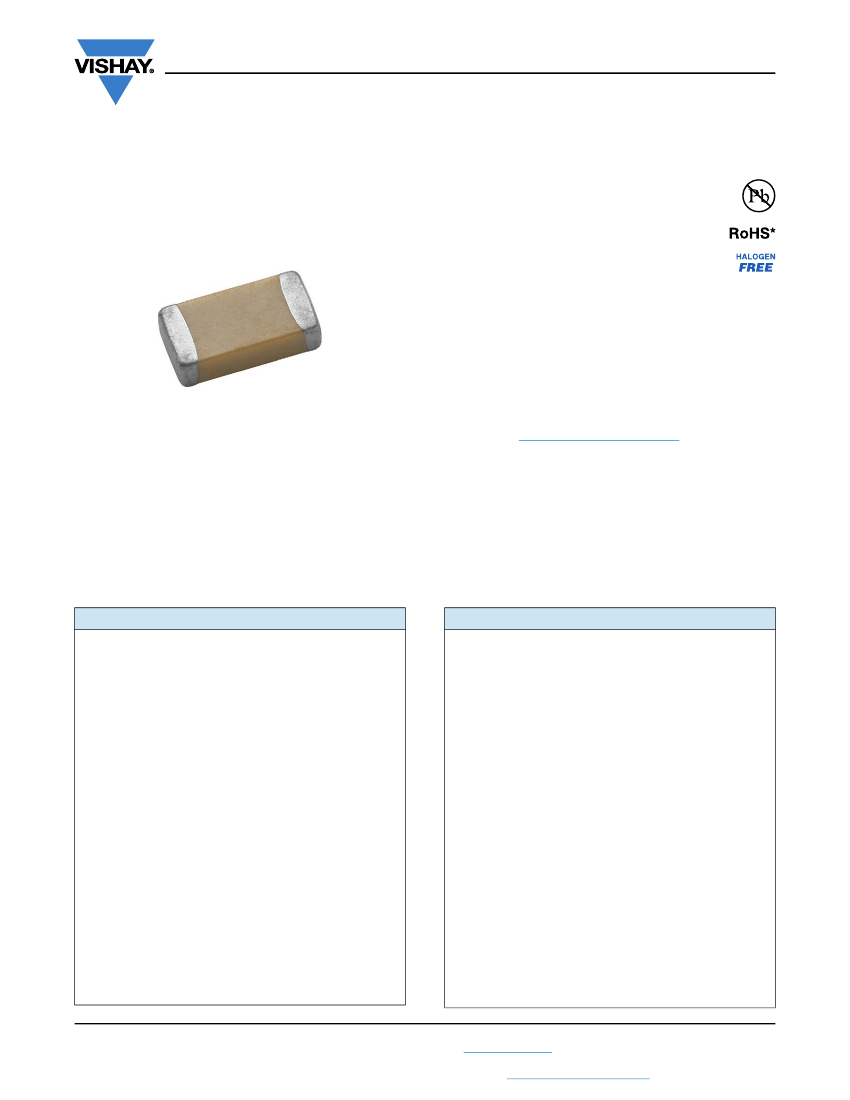

VJ Hi-Rel Series

www.vishay.com

Vishay Vitramon

Surface Mount Multilayer Ceramic Chip Capacitors

for High Reliability Applications

FEATURES

• Manufactured with a combination of design,

materials and tight process control to achieve

Available

very high field reliability

• C0G (NP0) and X7R / X5R dielectrics offered

Available

• MIL-PRF-55681 qualified production line

(1)

• Reliability maintenance testing to verify

consistent quality

(X5R max. test temperature: +85 °C)

• Available with group A and C screening

• Group C data can be reported

• Available with only group A screening

• Available with only voltage conditioning

• Customized certification available on request to meet your

quality requirements

• Available with tin-lead barrier terminations order code “L”

• Wet build process

• Reliable Noble Metal Electrode (NME) system

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

Notes

* This datasheet provides information about parts that

are RoHS-compliant and / or parts that are non-RoHS-compliant.

For example, parts with lead (Pb) terminations are not

RoHS-compliant. Please see the information / tables in this

datasheet for details

(1)

External visual inspection per EIA-595 standard

APPLICATIONS

• System critical medical applications

• Mission critical military and aerospace applications

ELECTRICAL SPECIFICATIONS

C0G (NP0)



X7R / X5R



GENERAL SPECIFICATION

Note

Electrical characteristics at +25 °C unless otherwise specified

GENERAL SPECIFICATION

Note



Electrical characteristics at +25 °C unless otherwise specified



Operating Temperature:

-55 °C to +125 °C

Capacitance Range:

1.0 pF to 39 nF

Voltage Range:

10 V

to 600 V

Temperature Coefficient of Capacitance (TCC):

0 ppm/°C ± 30 ppm/°C from -55 °C to +125 °C

Dissipation Factor (DF):

0.1 % maximum at 1.0 V

RMS

and



1 MHz for values



1000 pF

0.1 % maximum at 1.0 V

RMS

and



1 kHz for values > 1000 pF

Insulating Resistance:

at +25 °C 100 000 M min. or 1000

F

whichever is less

at +125 °C 10 000 M min. or 100

F

whichever is less

Aging Rate:

0 % maximum per decade

Dielectric Strength Test:

performed per method 103 of EIA 198-2-E.

Applied test voltages



200 V

-rated:

250 % of rated voltage

500 V

-rated:

200 % of rated voltage

630 V

-rated:

150 % of rated voltage



Operating Temperature:

-55 °C to +125 °C

Capacitance Range:

100 pF to 6.8 μF

Voltage Range:

6.3 V

to 500 V

Temperature Coefficient of Capacitance (TCC):

X5R: ± 15 % from -55 °C to +85 °C, with 0 V

applied

X7R: ± 15 % from -55 °C to +125 °C, with 0 V

applied

Dissipation Factor (DF):



6.3 V, 10 V ratings: 5 % maximum at 1.0 V

RMS

and 1 kHz

16 V, 25 V ratings: 3.5 % maximum at 1.0 V

RMS

and 1 kHz





50 V ratings: 2.5 % maximum at 1.0 V

RMS

and 1 kHz

Insulating Resistance:

at +25 °C 100 000 M min. or 1000

F

whichever is less

at +125 °C 10 000 M min. or 100

F

whichever is less

Aging Rate:

1 % maximum per decade

Dielectric Strength Test:

performed per method 103 of EIA 198-2-E.

Applied test voltages



250 V

-rated:

250 % of rated voltage

500 V

-rated:

min. 150 % of rated voltage

630 V

DC,

1000 V

-rated:

150 % of rated voltage

1500 V

, 3000 V

-rated:

120 % of rated voltage



Revision: 12-Dec-2019

Document Number: 45200

For technical questions, contact:

mlcc@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000
