3610VL-05W-B69-B00 datasheet, PDF

Datasheet> All Categories > Thermal management products> 3610VL-05W-B69-B00

3610VL-05W-B69-B00: Descriptionfan 24v 92x25 5000rpm lock rtr; CategoryThermal management products; File Size365KB，1 Pages; ManufacturerNMB ( Minebea ); Websitehttp://www.nmbtc.com; Environmental Compliance

Download Datasheet Parametric View All

3610VL-05W-B69-B00 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3610VL-05W-B69-B00	-	-	View	Buy Now

3610VL-05W-B69-B00 Overview

fan 24v 92x25 5000rpm lock rtr

3610VL-05W-B69-B00 Parametric

Parameter Name	Attribute value
Datasheets
3610VL(92x25)
Fans & Blowers Catalog
Product Photos
3610VL3 SERIES
Other Related Documents
Fan Agency Approvals
RoHS Informati
3610VL-05W-B69-B00 Material
Featured Produc
VL Series Fans
PCN Part Numbe
Fan Motor Numbering System 13/Dec/2013
Standard Package	90
Category	Fans, Thermal Manageme
Family	DC Fans
Voltage - Rated	24VDC
Size / Dimensi	Square - 92mm L x 92mm H x 25mm W
Air Flow	85.8 CFM (2.43m³/min)
Static Pressure	0.480 in H2O (119.6 Pa)
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Locked Rotor Sens
Noise	48 dB(A)
Power (Watts)	6.72W
RPM	5000 RPM
Terminati	3 Wire Leads
Ingress Protecti	-
Weigh	0.298 lb (135.17g)
Operating Temperature	14 ~ 158°F (-10 ~ 70°C)
Current Rating	0.280A
Voltage Range	14 ~ 27.6VDC
Life Expectancy	100000 hrs @ 25°C
Material - Frame	Plastic
Material - Blade	Plastic
Other Names	09225VA-24-PA-L003610VL05WB69B003610VL05WB69B00-ND

Preview

Download Datasheet

View All

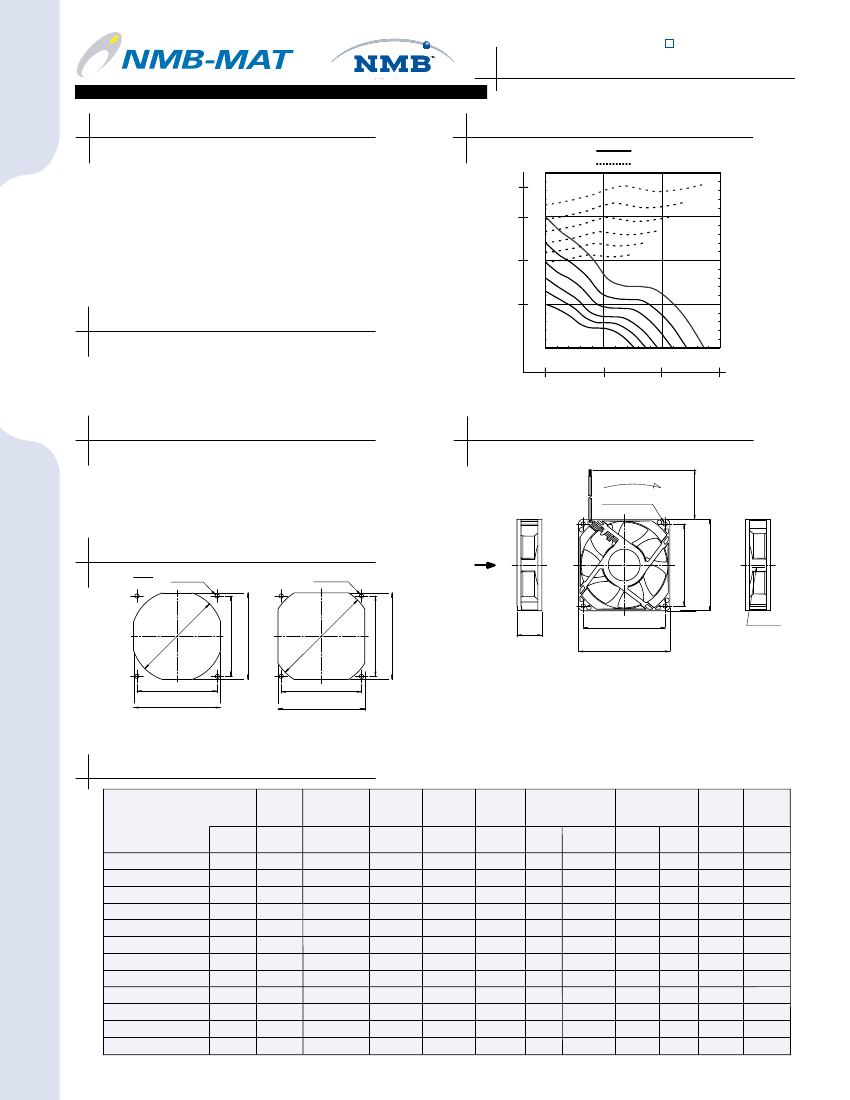

(92

)

3610VL

NMBTC.COM / 818.341.3355

General Specifications

Motor Protection:

Auto Restart/Polarity Protection

Characteristic Curves

In H

.80

200

B70

B60

.60

150

B40

B30

.40

100

B20

3000

B50

4500

(Pa)

P-Q Curve

Speed Curve

6000

Insulation Resistance:

10M Ω or over with a DC500V Megger

Static Pressure

DC Axial Fans

-10°C ~ +70°C (Operating)

-40°C ~ +70°C (Storage)

(non-condensing environment)

.20

B30

B20

0.0

1.0

2.0

3.0

B40

B50

B60

B70

1500

Expected Life

Failure Rate: 10%

25°C

100,000 Hours (B00/E00)

/min)

0.0

105

CFM

Air Flow

Material

Casing : Plastic (Black) 94V-0

Impeller : Plastic (Black) 94V-0

Bearing : Ball Bearing

Lead Wire : UL3385, AWG26, +Red, -Black

Outline

0.169

4.3

± 0.2

)

11.8

min (300)

ROTATION

AIR

.169

(4 – 4.3)

inch

Units: (mm)

.169

(4 – 4.3)

NAME

PLATE

( .70

)

10 3

.98

(25.0

± 0.5

)

3.25

(82.5

± 0.3

)

3.62

(92.0

± 0.5

)

(

3.62

(92.0

± 0.5

)

3.25

(82.5

± 0.3

)

Panel Cut-Outs

3.25

(82.5)

3.62

(89.0)

3.25

(82.5)

3.62

(89.0)

3.25

(82.5)

3.62

(89.0)

INLET SIDE

OUTLET SIDE

Specifications

Rated

Operating

Voltage

3.25

(82.5)

3.62

(89.0)

LOT NO.

Current

Input

Power

Speed

Max.

Air Flow

Max. Static

Pressure

Noise

MODEL

Product

No.

3610VL-04W-B20-

3610VL-04W-B30-

3610VL-04W-B40-

3610VL-04W-B50-

3610VL-04W-B60-

3610VL-04W-B70-

3610VL-05W-B20-

3610VL-05W-B30-

3610VL-05W-B40-

3610VL-05W-B50-

3610VL-05W-B60-

3610VL-05W-B70-

B/EXX

Voltage

(V)

7.0 ~ 13.8

14.0 ~ 27.6

(A)

0.18

0.24

0.30

0.40

0.52

0.72

0.11

0.14

0.17

0.22

0.28

0.38

(W)

2.16

2.88

3.60

4.80

6.24

8.64

2.64

3.36

4.08

5.28

6.72

9.12

(min

-1

)

3200

3600

4000

4500

5000

5600

3200

3600

4000

4500

5000

5600

CFM

/min)

in H

54.0

61.1

68.1

77.0

85.8

96.4

54.0

61.1

68.1

77.0

85.8

96.4

1.53

1.73

1.93

2.18

2.43

2.73

1.53

1.73

1.93

2.18

2.43

2.73

.20

.26

.32

.39

.48

.60

.20

.26

.32

.39

.48

.60

(Pa)

120

150

120

150

(dB)

35.5

38.5

42.0

45.0

48.0

51.0

35.5

38.5

42.0

45.0

48.0

51.0

1.9

Rotation: Clockwise

Airflow Outlet: Air Out Over Struts

*1: Average Values in Free Air

Speed

Dielectric Withstand Voltage:

AC 700V 1s

Allowable Ambient Temperature Range:

Mass

(g)

135
