ZX62-B-5PA

Description
conn rcpt micro usb B smd R/A
CategoryThe connector    The connector
File Size65KB,1 Pages
ManufacturerHirose
Websitehttp://www.hirose-connectors.com/

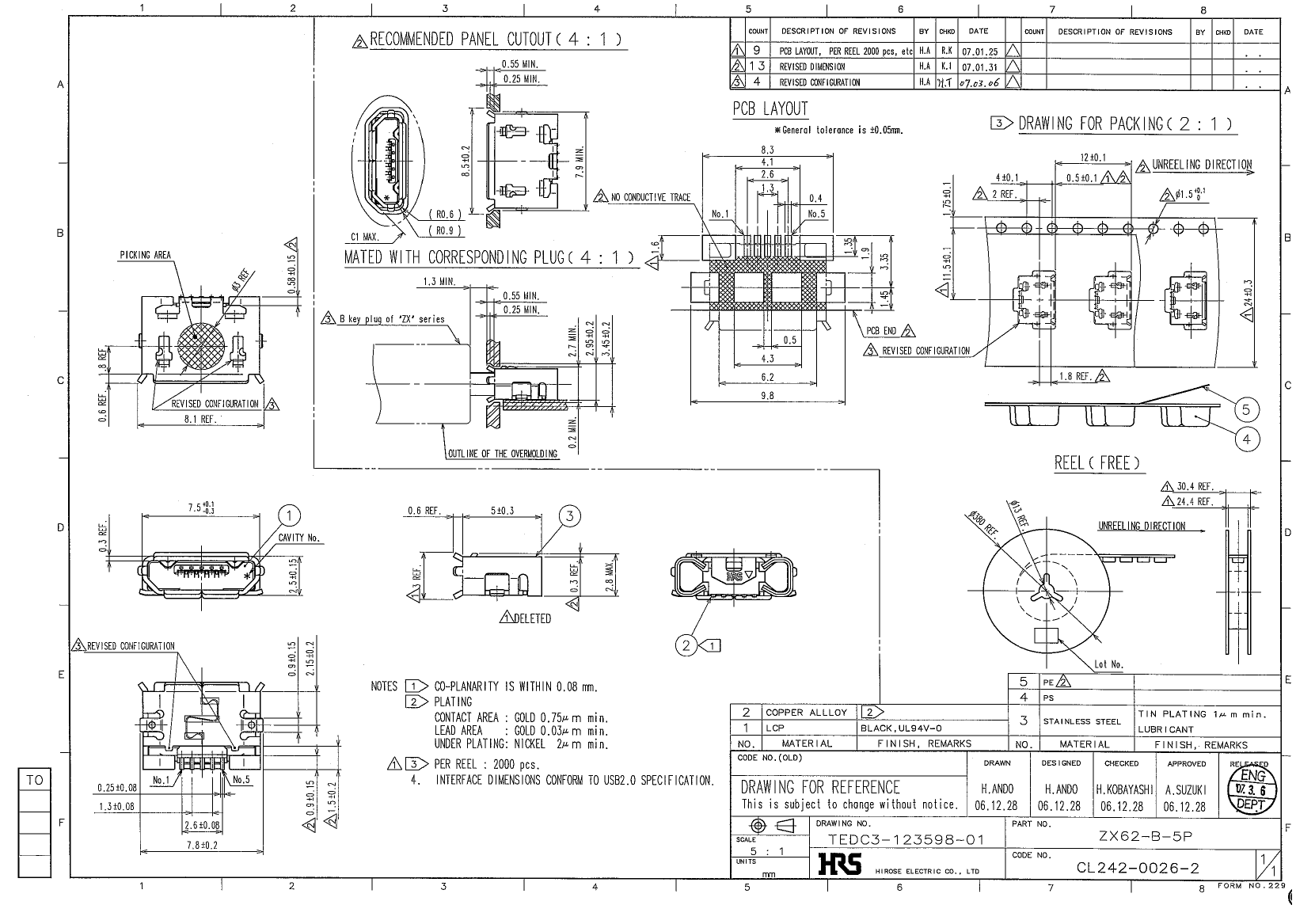

Download Datasheet Parametric Compare View All

ZX62-B-5PA Online Shopping

Suppliers Part Number Price MOQ In stock
ZX62-B-5PA - - View Buy Now

ZX62-B-5PA Overview

conn rcpt micro usb B smd R/A

ZX62-B-5PA Parametric

Parameter NameAttribute value
MakerHirose
Objectid304354173
Reach Compliance Codeunknow
compound_id3418879
Samacsys DescriptiUSB Connectors MICRO B RECEPT RA SMT BTTM MNT
Other featuresROHS COMPLIANT
body width0.11 inch
subject depth0.197 inch
body length0.295 inch
Body/casing typeRECEPTACLE
Connector typeUSB CONNECTOR
Contact to complete cooperationAU
Contact point genderMALE
Contact materialCOPPER ALLOY
Contact resistance30 mΩ
Contact styleUSB, SER A FLAT
Dielectric withstand voltage100VAC V
Durability10000 Cycles
maximum insertion force35.1392 N
insulator materialLIQUID CRYSTAL POLYMER (LCP)
Installation option 1DETENT
Installation option 2LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of ports1
Maximum operating temperature85 °C
Minimum operating temperature-30 °C
PCB contact patternRECTANGULAR
Plating thickness30u inch
Rated current (signal)1.8 A
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceTIN
Shell materialSTEEL
Terminal pitch0.4064 mm
Termination typeSURFACE MOUNT
Total number of contacts5
Evacuation force-minimum value8.0064 N

ZX62-B-5PA Related Products

ZX62-B-5PA ZX62-B-5P ZX62-AB-5PA
Description conn rcpt micro usb B smd R/A conn rcpt micro usb B smd R/A conn rcpt micro usb AB smd R/A
Maker Hirose Hirose Hirose
Reach Compliance Code unknow unknow unknow
body width 0.11 inch 0.11 inch 0.11 inch
subject depth 0.197 inch 0.197 inch 0.197 inch
body length 0.295 inch 0.295 inch 0.295 inch
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE
Connector type USB CONNECTOR USB CONNECTOR USB CONNECTOR
Contact to complete cooperation AU AU NOT SPECIFIED
Contact point gender MALE MALE FEMALE
Contact material COPPER ALLOY COPPER ALLOY NOT SPECIFIED
Contact resistance 30 mΩ 30 mΩ 30 mΩ
Contact style USB, SER A FLAT USB, SER B SQ USB, SER A FLAT
Dielectric withstand voltage 100VAC V 100VAC V 100VAC V
Durability 10000 Cycles 10000 Cycles 10000 Cycles
maximum insertion force 35.1392 N 2.1962 N 35.1392 N
insulator material LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER
Installation option 1 DETENT LOCKING DETENT
Installation method RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD BOARD
Number of connectors ONE ONE ONE
PCB row number 1 1 1
Number of ports 1 1 1
Maximum operating temperature 85 °C 85 °C 85 °C
Minimum operating temperature -30 °C -30 °C -30 °C
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR
Rated current (signal) 1.8 A 1.8 A 1.8 A
Guideline UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL
Shell surface TIN TIN TIN
Shell material STEEL STAINLESS STEEL STAINLESS STEEL
Terminal pitch 0.4064 mm 0.6604 mm 0.4064 mm
Termination type SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
Total number of contacts 5 5 5
Evacuation force-minimum value 8.0064 N 8.0064 N 8.0064 N
Samacsys Descripti USB Connectors MICRO B RECEPT RA SMT BTTM MNT - USB Connectors MICRO AB RECEPT RA SMT BTTM MNT
Other features ROHS COMPLIANT - ROHS COMPLIANT
Installation option 2 LOCKING - LOCKING
Plating thickness 30u inch - 30u inch
ECCN code - EAR99 EAR99
