5920VL-07W-B49-D50 datasheet, PDF

Datasheet> All Categories > Thermal management products> 5920VL-07W-B49-D50

5920VL-07W-B49-D50: Descriptionfan 48vdc tac 150x172x50.8mm; CategoryThermal management products; File Size493KB，1 Pages; ManufacturerNMB ( Minebea ); Websitehttp://www.nmbtc.com; Environmental Compliance

Download Datasheet Parametric View All

5920VL-07W-B49-D50 Overview

fan 48vdc tac 150x172x50.8mm

5920VL-07W-B49-D50 Parametric

Parameter Name	Attribute value
Datasheets
5920VL(150x172x50)
Fans & Blowers Catalog
Product Photos
5920VL
Other Related Documents
Fan Agency Approvals
RoHS Informati
5920VL-07W-B49-D50 Material
Featured Produc
VL Series Fans
Standard Package	10
Category	Fans, Thermal Manageme
Family	DC Fans
Voltage - Rated	48VDC
Size / Dimensi	Rectangular/Rounded - 172mm L x 150mm H x 50.8mm W
Air Flow	251.0 CFM (7.11m³/min)
Static Pressure	0.671 in H2O (167.1 Pa)
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Speed Sensor (Tach)
Noise	59 dB(A)
Power (Watts)	19.7W
RPM	3350 RPM
Terminati	3 Wire Leads
Ingress Protecti	-
Weigh	1.8 lbs (816.5g)
Operating Temperature	14 ~ 158°F (-10 ~ 70°C)
Current Rating	0.410A
Voltage Range	36 ~ 56VDC
Life Expectancy	100000 hrs @ 25°C
Material - Frame	Aluminum
Material - Blade	Plastic
Other Names	5920VL07WB49D505920VL07WB49D50-ND

Preview

Download Datasheet

View All

5920VL (150

NMBTC.COM / 818.341.3355

172

)

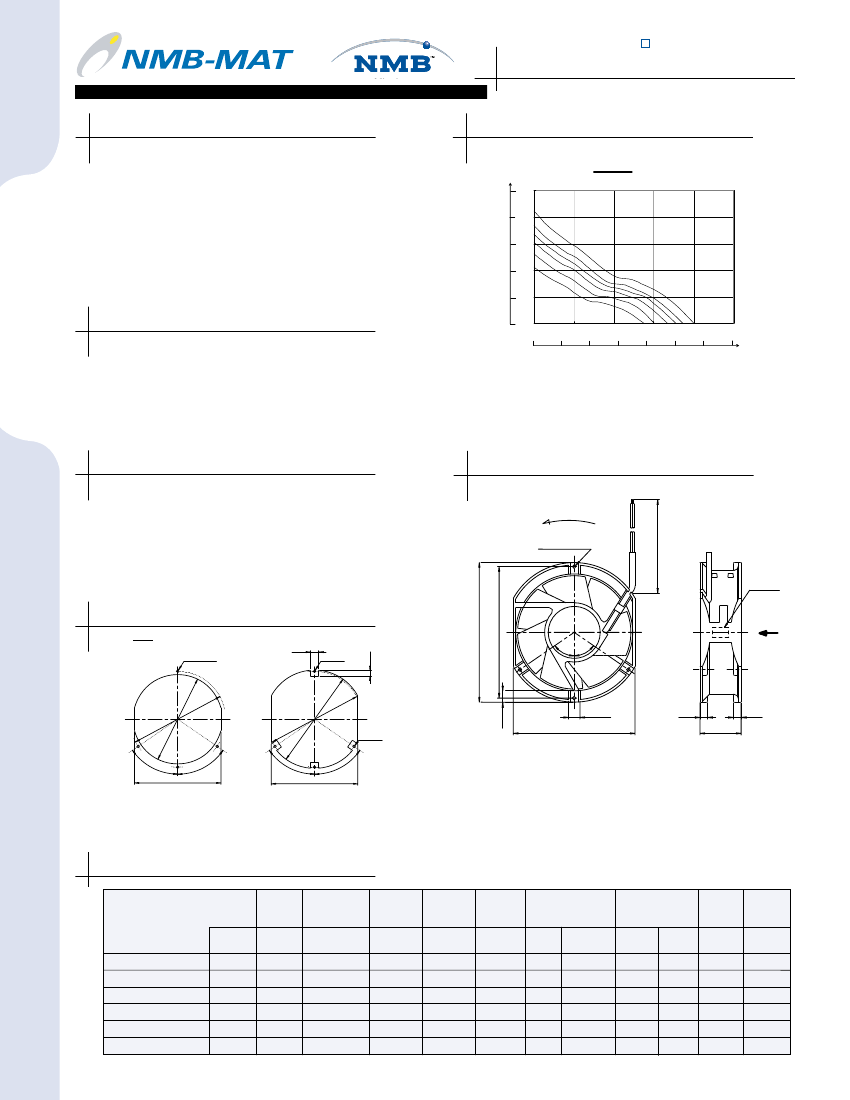

General Specifications

Motor Protection:

Auto Restart/Polarity Protection

Characteristic Curves

In H

(Pa)

1.00

250

P-Q Curve

25000

Insulation Resistance:

10M Ω or over with a DC500V Megger

0.80

200

DC Axial Fans

Static Pressure

Dielectric Withstand Voltage:

AC 700V 1s

Allowable Ambient Temperature Range:

-10°C ~ +70°C (Operating)

-40°C ~ +70°C (Storage)

(non-condensing environment)

20000

0.60

150

15000

0.40

100

10000

0.20

5000

Expected Life

Failure Rate: 10%

25°C

100,000 Hours (D00)

0.00

100

150

200

250

300

350

/min)

CFM

Air Flow

Material

Casing : Plastic (Black) 94V-0

Impeller : Plastic (Black) 94V-0

Bearing : Ball Bearing

Lead Wire : UL1007, AWG26, +Red, -Black

Outline

11.8

min (300)

ROTATION

.169

4.3

± 0.2)

LOT NO.

6.77

( 172)

6.38

(162.0

± 0.6

)

Panel Cut-Outs

.177

4 – ( 4.5)

(

)

.55

4 – (14)

.177

4 – ( 4.5)

.55

(14.0)

(

)

6.3 ± 0.2

.54

.39

4–( )

inch

Units: (mm)

NAME

PLATE

2.1

(55

.5˚

)

AIR

2.1

)

5.5

.18

5˚

)

6.3 ± 0.2

(

2.1

(55

.5˚)

2.1

5˚)

(55

2.1

5˚)

(55

.177

4 – ( 4.5)

5.90

(150)

.55

4-(14.0)

.37

(9.4)

2.0

(50.8

± 0.2

)

.37

(9.4)

5.75

(146)

5.75

(146)

INLET SIDE

OUTLET SIDE

Specifications

Rated

Operating

Voltage

(

Current

Input

Power

Speed

Max.

Air Flow

Max. Static

Pressure

Noise

Mass

MODEL

Product

No.

5920VL-07W-B10-

5920VL-07W-B20-

5920VL-07W-B30-

5920VL-07W-B40-

5920VL-07W-B50-

5920VL-07W-B60-

DXX

Voltage

(V)

36 ~ 56

(A)

0.28

0.33

0.37

0.41

0.44

0.52

(W)

13.44

15.84

17.76

19.68

21.10

25.00

(min

-1

)

2550

2850

3150

3350

3500

3750

CFM

/min)

in H

194.5

213.2

236.5

251.0

263.3

283.1

5.51

6.04

6.70

7.11

7.46

8.02

.43

.53

.61

.67

.74

.85

(Pa)

106

131

152

167

184

211

(dB)

51.0

54.0

57.0

59.0

61.0

63.0

(g)

830

1.13

Rotation: Counterclockwise

Airflow Outlet: Air Out Over Struts

*1: Average Values in Free Air
