MS2441
NPN SILICON RF POWER TRANSISTOR
DESCRIPTION:
The
ASI MS2441
is a silicon NPN power
transistor, designed for high power and
low duty cycle DME and IFF applications.
PACKAGE STYLE .400 2L FLG (A)
4x .062 x 45°
2xB
A
.040 x 45°
C
F
E
FEATURES:
•
Internal Input/Output Matching Networks
•
P
G
= 6.5 dB at 400 W/1150 MHz
•
Omnigold™
Metalization System
DIM
D
G
H
J
K
P
2xR
I
L
N
M
M IN IM UM
inches / m m
M A XIM UM
inches / m m
MAXIMUM RATINGS
I
C
V
CBO
V
CES
P
DISS
T
J
T
STG
θ
JC
22 A
65 V
65 V
1458 W @ T
C
= 25 °C
-65 °C to +200 °C
-65 °C to +150 °C
0.12 °C/W
A
B
C
D
E
F
G
H
I
J
K
L
M
N
P
.135 / 3.43
.100 / 2.54
.050 / 1.27
.376 / 9.55
.110 / 2.79
.395 / 10.03
.193 / 4.90
.490 / 12.45
.100 / 2.54
.690 / 17.53
.890 / 22.61
.003 / 0.08
.052 / 1.32
.118 / 3.00
.145 / 3.68
.120 / 3.05
.396 / 10.06
.130 / 3.30
.407 / 10.34
.510 / 12.95
.710 / 18.03
.910 / 23.11
.006 / 0.18
.072 / 1.83
.131 / 3.33
.230 / 5.84
COMMON BASE CONFIGURATION
CHARACTERISTICS
SYMBOL
BV
CBO
BV
CES
BV
EBO
I
CES
h
FE
P
G
η
C
I
C
= 25 mA
I
C
= 50 mA
I
E
= 10 mA
V
CE
= 50 V
V
CE
= 5.0 V
V
CC
= 50 V
P
IN
= 90 W
T
C
= 25 °C
NONETEST
CONDITIONS
MINIMUM TYPICAL MAXIMUM
65
65
3.5
25
UNITS
V
V
V
mA
---
dB
%
I
C
= 0.25 A
P
OUT
= 400 W
f = 1025 - 1150 MHz
10
6.5
40
200
Pulse Width = 10 µsec, Duty Cycle = 1 %
A D V A N C E D S E M I C O N D U C T O R, I N C.
7525 ETHEL AVENUE
•
NORTH HOLLYWOOD, CA 91605
•
(818) 982-1200
•
FAX (818) 765-3004
Specifications are subject to change without notice.
REV. A
1/3
MS2441

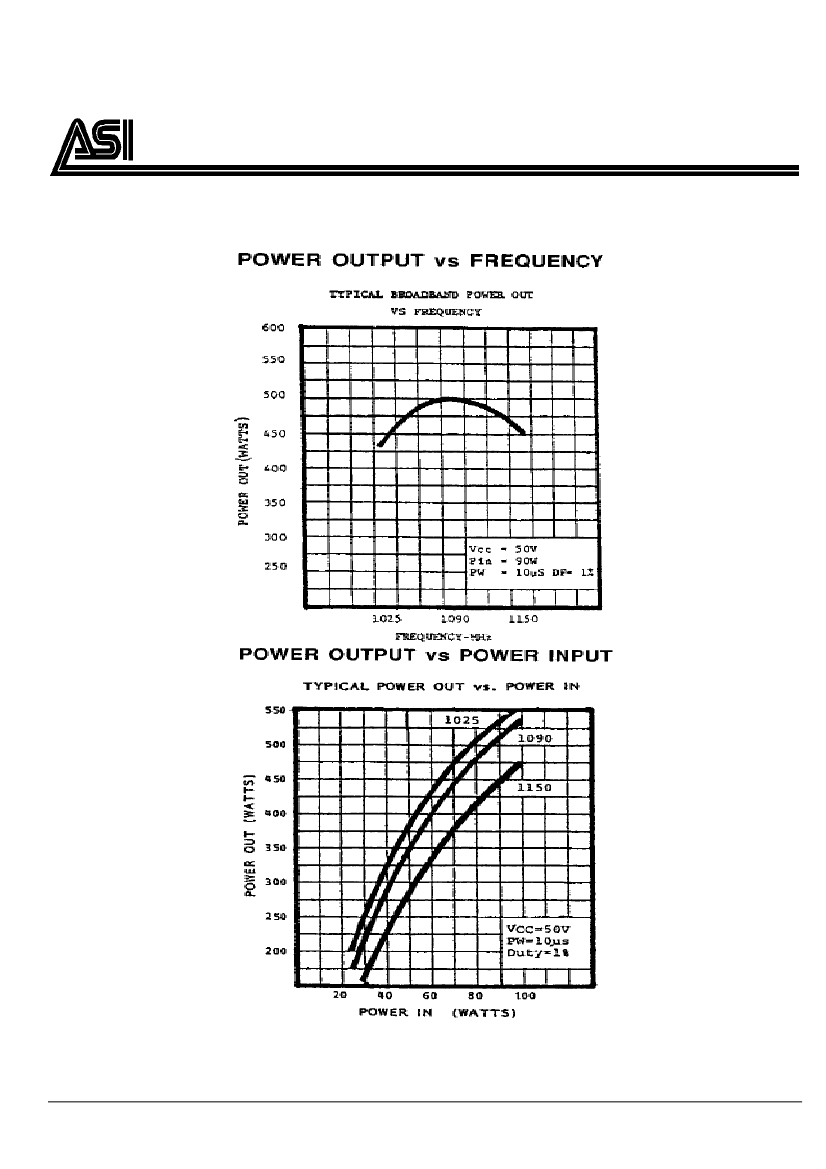

ERROR! REFERENCE SOURCE NOT FOUND.
A D V A N C E D S E M I C O N D U C T O R, I N C.
7525 ETHEL AVENUE
•
NORTH HOLLYWOOD, CA 91605
•
(818) 982-1200
•
FAX (818) 765-3004
Specifications are subject to change without notice.
REV. A
2/3
MS2441
ERROR! REFERENCE SOURCE NOT FOUND.
A D V A N C E D S E M I C O N D U C T O R, I N C.
7525 ETHEL AVENUE
•
NORTH HOLLYWOOD, CA 91605
•
(818) 982-1200
•
FAX (818) 765-3004
Specifications are subject to change without notice.
REV. A
3/3
