3970-2-0411: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Female, Straight, 0.156 inch Pitch, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size74KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

3970-2-0411 Overview

Board Connector, 4 Contact(s), 1 Row(s), Female, Straight, 0.156 inch Pitch, Solder Terminal, Locking, Plug

3970-2-0411 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307348651
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.46 inch
subject depth	0.448 inch
body length	0.626 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
insulator material	POLYAMIDE
Plug contact pitch	0.156 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	3.9624 mm
Termination type	SOLDER
Total number of contacts	4

Preview

Download Datasheet

View All

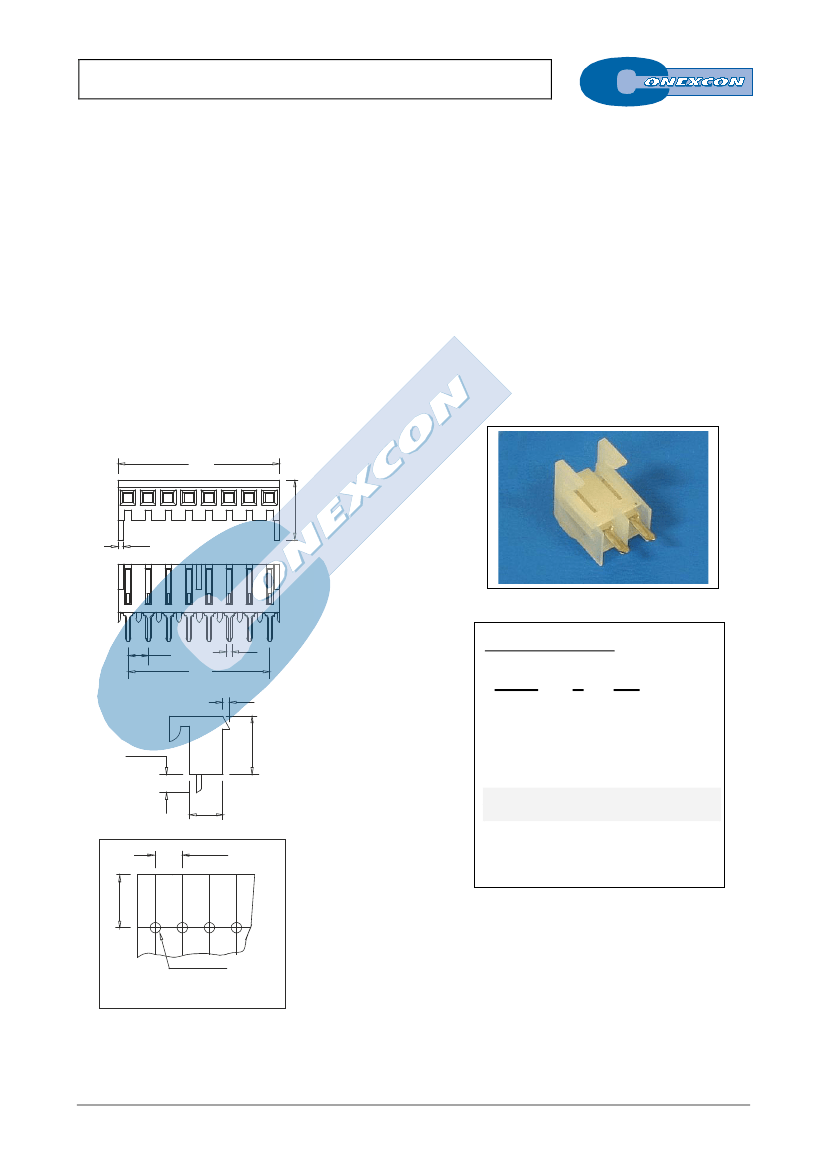

BOARD TO BOARD TOP ENTRY CONNECTOR

3970 SERIES.

3.96 mm (0.156”) pitch.

General Features

Electrical Features



Available in 2 circuits through 25 circuits



Mates with 3.96 mm pin header 1.14 mm square/round

pin 3986, 3987, 3988, 3963, 3966, 3968, 3917, 3918, 3919

and 3920 Series



Flex contact PCB female terminal

Materials



Voltage rating: < 250V

Current rating: < 5 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 1500 V AC/minute

Insulation resistance: >1000 MΩ

Mechanical Features



Insulator: Nylon 66 UL 94 V-2

Contact: Tin plated brass

Operating temperature: -25ºC to +125ºC

RoHS compliant



Contact retention force to insulator: > 1.00 Kgf

Insertion force to header: < 1.00 Kgf/pin

Withdrawal force from header: < 0.15 Kgf/pin

Durability: 25 cycles

Dimension Information

Dim.B

11.70

0.50

.020

.460

3.96

.156

Dim.A

1.00

.040

Ordering Information:

3970 -

1.30

.051

RECOMMENDED HOLE PATTERN

11.40

.448

3.20±0.2

.126±008

1. Connector Series

2. (T) Contact Plating

6.50

.256



T =

Tin plated

Recommended Finish

3. (XX) Number of circuits

3.96±0.10

.156±.004



Available in 2 through 25 circuits

7.78

.306

Dimensions:

(In mm.)

Ø1.52±0.05

Ø060±.002

RECOMMENDED HOLE PATTERN

= 3.96 x (XX*-1)

= 3.96 x (XX)+ 0.06

* XX

(Number of circuits)

E-XX

FULL LINE CATALOGUE

Recommended Resources

Cadmium nickel battery charging circuit composed of CD4040

One of the gas sensitive alarm circuits

Based on TNY264P5 Volt/1.5A switching power supply circuit diagram

Strain sensor connection line

AD22050 single supply sensor interface amplifier circuit

Video recorder LP adder circuit 1
