PS2K46-207SBB1-U datasheet, PDF

Datasheet> All Categories > The connector> The connector> PS2K46-207SBB1-U

PS2K46-207SBB1-U: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size239KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

PS2K46-207SBB1-U Overview

Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Plug

PS2K46-207SBB1-U Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1166180662
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	EDGE MOUNT
body width	0.177 inch
subject depth	0.181 inch
body length	0.571 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	PS2K46
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	14

Preview

Download Datasheet

View All

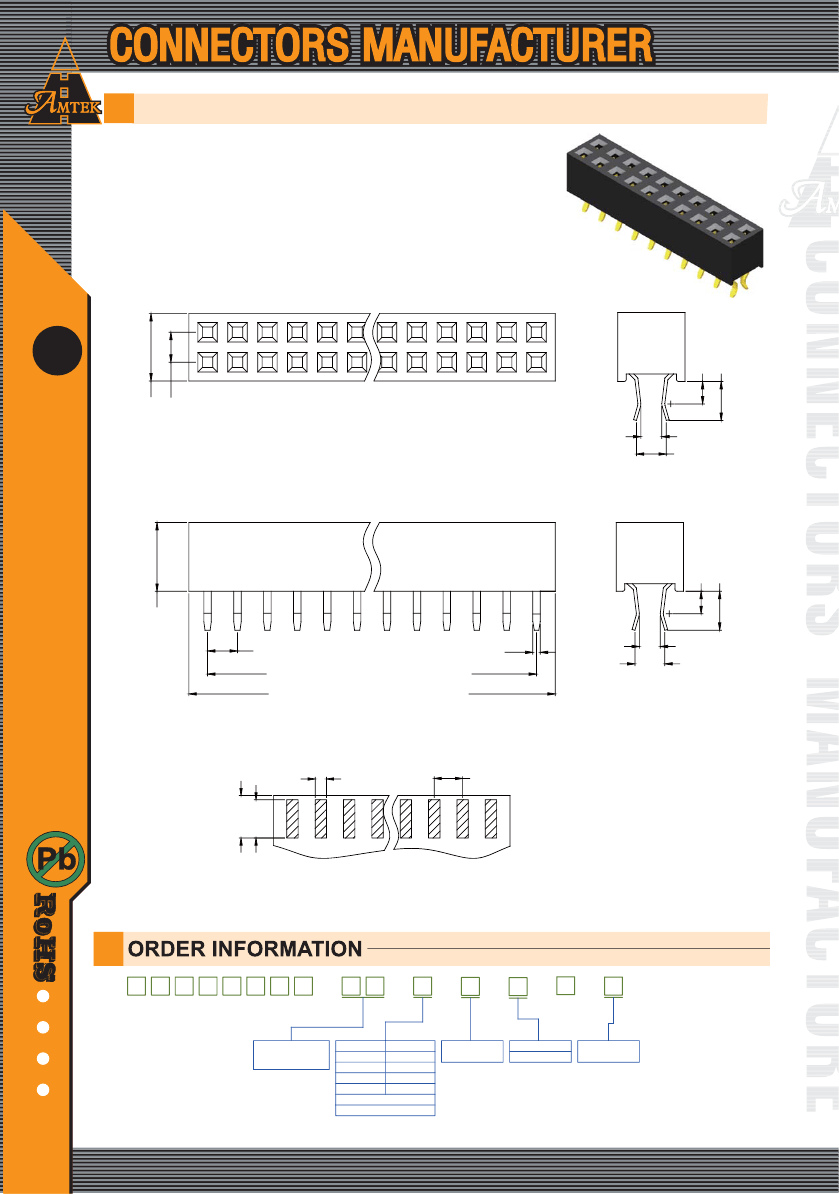

Female Header 2.0mm 2 Row H=4.6mm Kink Type

Specifications

Current Rate:2.0 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:20mΩ Max.

Dielectric Voltage:500V AC for one minute

Operation Temperature:-40°C to +105°C

Material

Insulator:Polyester,UL 94V-0

Standard:Nylon 6T

Terminal:Copper Alloy

Plating:Gold Plated

4.50±0.15

2.00±0.05

1.40±0.25

2.00

TYPE 1

4.60±0.15

2.00±0.10

PIN 0.50X0.20

1.20±0.25

1.80

TYPE 2

2.00 X No. of Contacts/2-2.00±0.25

2.00 X No. of Positions+0.50±0.30

0.80

3.00

2.70

2.00

Recommended P.C.B Layout(TOP Side)

(PCB BOARD TOLERANCE±0.05)

Part No.:PS2K46-2XX-U

P S 2 K 4 6 -

X X

No. of contacts per row

(02~40)

G:Gold Flash

GA:5u"

GB:10u"

GC:20u"

GD:30u"

S:Selective

SA:5u"

SB:10u"

SC:20u"

SD:30u"

B:Black Insulator

1:Type 1

2:Type 2

U:RoHS + Nylon 6T

T:Tin Plated

TE:Tin 200u"

Standard Recommended

2-75

www.amtek-co.com.tw

1.50±0.25

2.60±0.25

1.50±0.25

2.60±0.25

emale Header 2.0mm
