M5200
Industrial Pressure Transducer
SPECIFICATIONS
Wide Temperature Range
Compact

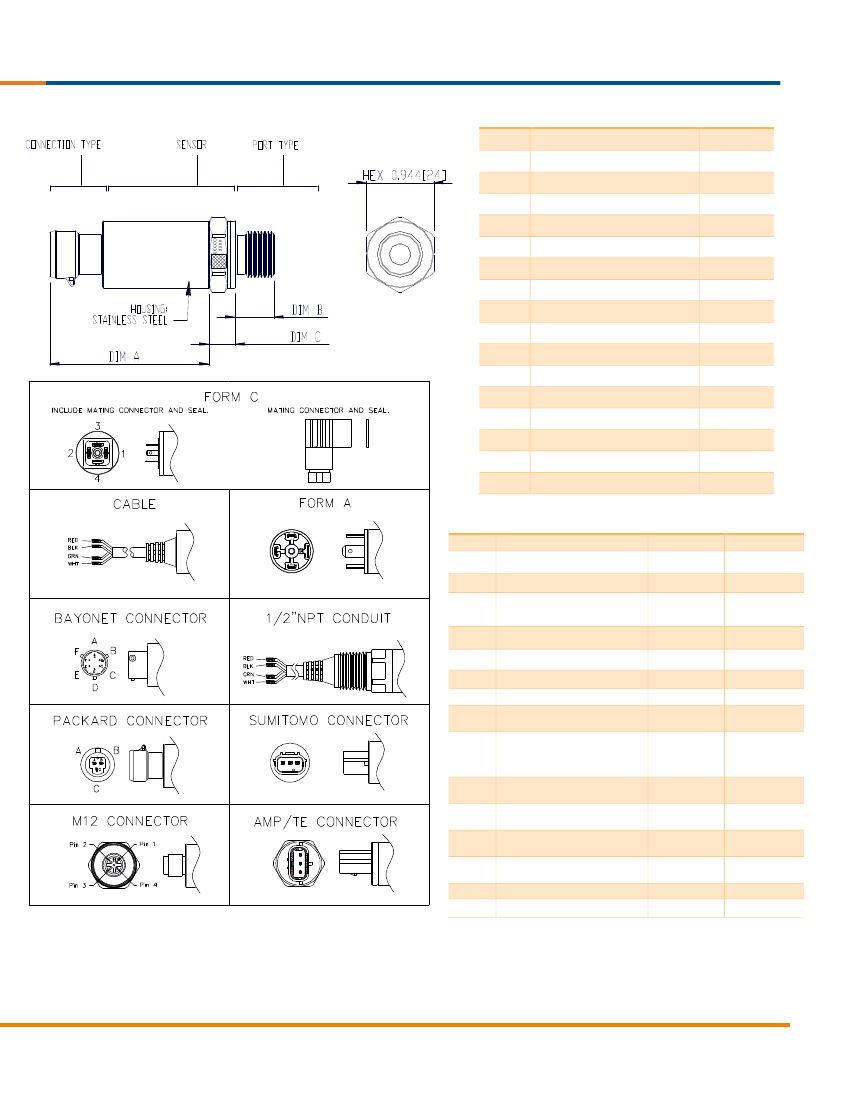

Variety of Pressure Ports and Electrical Configurations
Optional Stainless Steel Snubber
CE Compliant and Weatherproof
UL Certified
Gage, Sealed, Compound
The M5200
pressure transducers from the Microfused line of MEAS,
with their modular design, offer maximum flexibility for different
configurations. This latest series sets a new price performance
standard for demanding commercial and heavy industrial applications.
This series is suitable for measurement of liquid or gas pressure, even
for difficult media such as contaminated water, steam, and mildly
corrosive fluids.
The wetted material is made of either 17-4 PH or 316L stainless steel
and the transducer’s
durability is excellent with no o-rings, welds or
organics exposed to the pressure media. The M5200 is weatherproof
and exceeds the latest heavy industrial CE requirements including
surge protection. The circuit is protected from reverse wiring at input
and short circuit at output.
This product is geared to the OEM customer for low to mid volumes.
MEAS stands ready to provide a custom design of the M5200 where
the volume and application warrants. Additional configurations not
listed are either available or possible. Please inquire for further
information.
SENSOR SOLUTIONS
///M5200
09/2017
Page 1
M5200
Industrial Pressure Transducer
FEATURES
Heavy Industrial CE Approval
10 V/m EMI Protection
Reverse Polarity Protection on Input
Short Circuit Protection on Output
±0.25% Accuracy
±1.0% Total Error Band
Compact Outline
-40°C to +125°C Operating Temperature
Weatherproof
APPLICATIONS
Industrial Process Control and Monitoring
Advanced HVAC Systems
Refrigeration Systems
Automotive Test Stands
Off-Road Vehicles
Pumps and Compressors
Hydraulic/Pneumatic Systems
Agriculture Equipment
Energy Generation and Management
STANDARD RANGES
Range (psi)
0 to 050
0 to 100
Range (Bar)
0 to 3.5
0 to 007
0 to 010
Gage
Sealed
Compound
0 to 200
0 to 300
0 to 020
0 to 500
0 to 035
0 to 01k
0 to 070
0 to 03k
0 to 200
0 to 05k
0 to 350
0 to 07k
0 to 500
0 to 10k
0 to 700
0 to 15k
0 to 01k
Intermediate ranges available upon request
SENSOR SOLUTIONS
///M5200
08/2017
Page 2
M5200
Industrial Pressure Transducer
PERFORMANCE SPECIFICATIONS
Ambient Temperature: 25°C (unless otherwise specified)
PARAMETERS
MIN
Accuracy
(combined non linearity, hysteresis, and repeatability)
Isolation, Body to any Lead
Dielectric Strength
Pressure Cycles
Proof Pressure
Burst Pressure
Long Term Stability (1 year)
Total Error Band (17-4PH)
Total Error Band (316L, ≤3k psi)
Total Error Band (316L, >3k psi)
Compensated Temperature
Operating Temperature
Storage Temperature
Load Resistance (R
L
)
Load Resistance (R
L
)
Current Consumption
Rise Time (10% to 90%)
Wetted Material
Gage Pressure Reference Vent
Bandwidth
Shock
Vibration
For custom configurations, consult factory.
Notes
Compensated Temperature: The temperature range over which the product will produce an output proportional to pressure within the specified
performance limits.
Operating Temperature: The temperature range over which the product will produce an output proportional to pressure but may not remain
within the specified performance limits.
Storage Temperature: The temperature range over which the product can be stored safely in occasions without pressure applied or power
input and remains rated performance. Beyond this temperature range may cause permanent damage to the product.
All configurations are built with supply voltage reverse and output short-circuit protections.
1.00E+6
2X
5X
-0.25
-1.0
-1.5
-2.0
-20
-40
-40
R
L
> 100k
< (Supply Voltage -9V) / 0.02A
5
20k psi
0.25
1.0
1.5
2.0
+85
+125
+125
-0.25
100
2
TYP
MAX
0.25
UNITS
%F.S.
MΩ
mA
0~FS Cycles
Rated
Rated
%F.S.
%F.S.
%F.S.
%F.S.
°C
°C
°C
Ω
Ω
mA
Except cable 105°C max
Except cable 105°C max
Voltage Output
Current Output
Voltage Output
Over compensated temperature range
Over compensated temperature range
Over compensated temperature range
NOTES
BFSL
@500VDC
@500VAC, 1min
<2ms (Voltage Output); <3ms (Current Output); Without Snubber
17-4PH or 316L Stainless Steel Port, 316L Stainless Steel Snubber
Under 1k psi, customer to ensure venting through mating connector
DC to 1KHz (Typical)
50g, 11msec Half Sine Shock per MIL-STD-202G, Method 213B, Condition A
±20g, MIL-STD-810C, Procedure 514.2, Fig 514.2-2, Curve L
CE Compliance
EN 55022 Emissions Class A & B
IEC 61000-4-2 Electrostatic Discharge Immunity (8kV contact/15kV air)
IEC 61000-4-3 Radiated, Radio-Frequency Electromagnetic Field Immunity (10V/m, 80M-1GHz)
IEC 61000-4-4 Electrical Fast Transient Immunity (1kV)
IEC 61000-4-5 Surge Immunity (V+ to V-:
±2KV/42Ω; L to Case: ±1KV/12Ω; V-
to V
0
: ±1KV/42Ω)
IEC 61000-4-6 Immunity to Conducted Disturbances Induced by Radio Frequency
Fields (150K~80MHz, 10V level for voltage output models, 3V level for current output model)
IEC 61000-4-9 Pulse Magnetic Field Immunity (100A/m peak)
For all CE compliance tests, max allowed output deviation ±1.5 %F.S.
SENSOR SOLUTIONS
///M5200
08/2017
Page 3
