BC034-11-C-V-0150-L-D: DescriptionBoard Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Receptacle,; CategoryThe connector The connector; File Size120KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BC034-11-C-V-0150-L-D Overview

Board Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Receptacle,

BC034-11-C-V-0150-L-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1948549226
Reach Compliance Code	compliant
Country Of Origin	Mainland China
ECCN code	EAR99
YTEOL	8.35
Other features	ROHS COMPLIANT
body width	0.059 inch
subject depth	0.083 inch
body length	0.433 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
Manufacturer's serial number	BC034
Plug contact pitch	0.039 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	11

Preview

Download Datasheet

View All

3

1

2

4

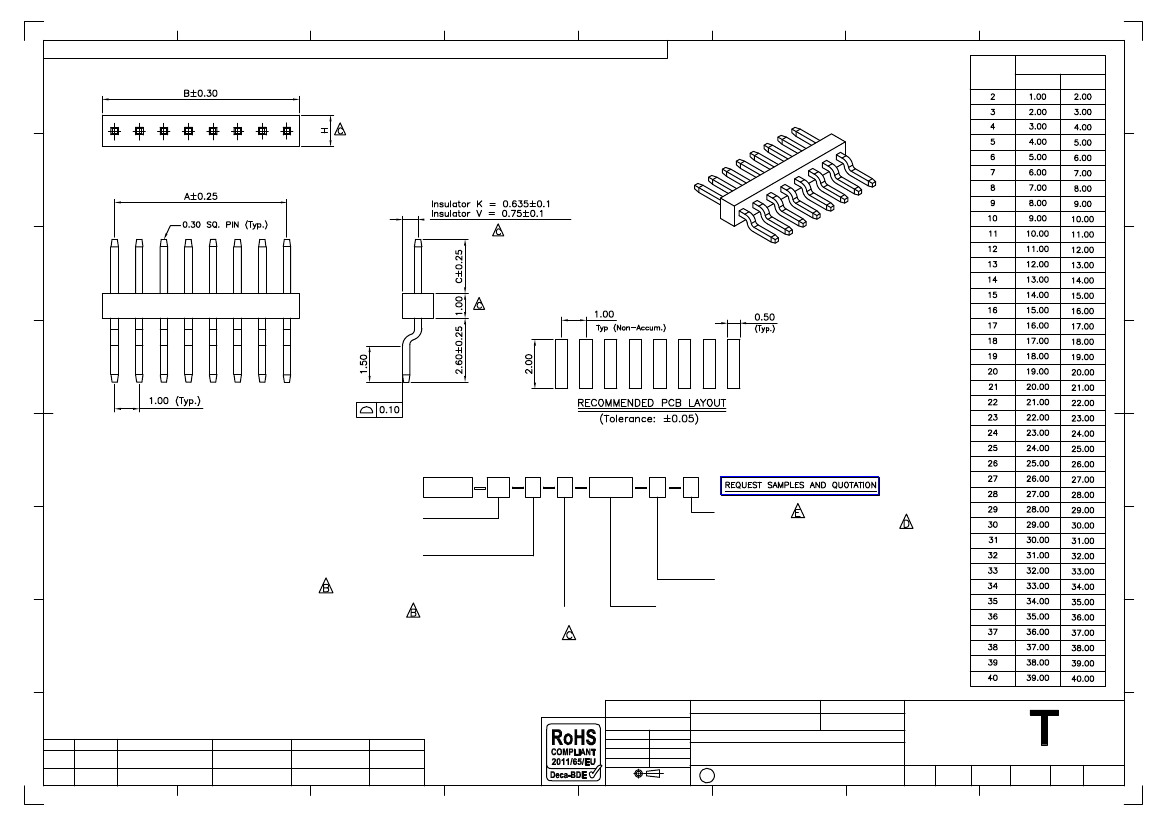

Global Connector Technology Ltd. - BC034: 1.00mm PITCH PIN HEADER, SINGLE ROW, SURFACE MOUNT, HORIZONTAL

A

5

6

7

8

DIMENSIONS

CONTACTS

A

B

A

B

C

D

E

Ordering Grid

E

BC034

No. of Contacts

02 to 40

XX

X

XXXX

L

X

Packing Options

C = Tape and Reel with Film (Standard)

D = Tube (unavailable in 2, 3

and

4 contacts)

E = Tube with Cap (unavailable in 2, 3

and

4 contacts)

G = Plastic Box (only available

in 2, 3 and 4 contacts)

Insulator Material

L = LCP (Standard)

F

SPECIFICATIONS

规格

:

CURRENT RATING

电流额定值：

1 AMP

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MEGOHMS MIN.

DIELECTRIC WITHSTANDING

耐电压：

AC 300 V

CONTACT RESISTANCE

接触电阻值：

20m

Ω

Max.

OPERATING TEMPERATURE

工½温度：

-40°C TO +105°C

CONTACT MATERIAL

端子物料：

PHOSPHOR BRONZE

INSULATOR MATERIAL

绝缘½物料

:

G

STANDARD

标准物料

: POLYESTER

聚酯

, LCP, UL 94-V0

SOLDERING PROCESS

可焊性

:

LCP (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

):

BC065

BC070

BC075

Contact Plating

A = Gold Flash All Over

C = Tin All Over

Standard = Gold Flash All Over

Insulator Height 'H'

V = 1.50mm

K = 1.27mm

(Standard 1.50mm)

F

Dimension C (1/100mm)

(Post Height)

Standard - 1.50mm = 0150

or specify Dimension C

e.g. 2.50mm = 0250

Tol +/- 0.2mm

G

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X.°± 5°

.X°± 3°

X.X ± 0.25

X.XX ± 0.15

.XX°± 2°

X.XXX ± 0.10 .XXX°± 1°

X. ± 0.30

Third Angle Projection

BC034

Description:-

20 MAY 08

H

By

DETAIL

REV

DATE

ASE

SA

ASE

DRAWING AMENDMENT TO PLATING INSULATOR OPTIONS PACKING STANDARD PACKING OPT.

CLARIFIED

MODIFIED

RELEASE

OPTIONS AND SPEC

MODIFIED

D

C

E

A

B

21/07/10

09/04/10

27/06/12

20/05/08

21/12/09

1.00mm PITCH PIN HEADER, SINGLE ROW,

SURFACE MOUNT, HORIZONTAL

www.globalconnectortechnology.com

Scale

NTS

GC

Material

See Note

H

C

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

E

Drawn by

ASE

E & OE

Sheet No.

1/1

1

2

3

4

5

6

7

8
