MJ20-08DB

Description
Telecom and Datacom Connector, 10 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size684KB,4 Pages
ManufacturerRatioplast Electronics
Download Datasheet Parametric View All

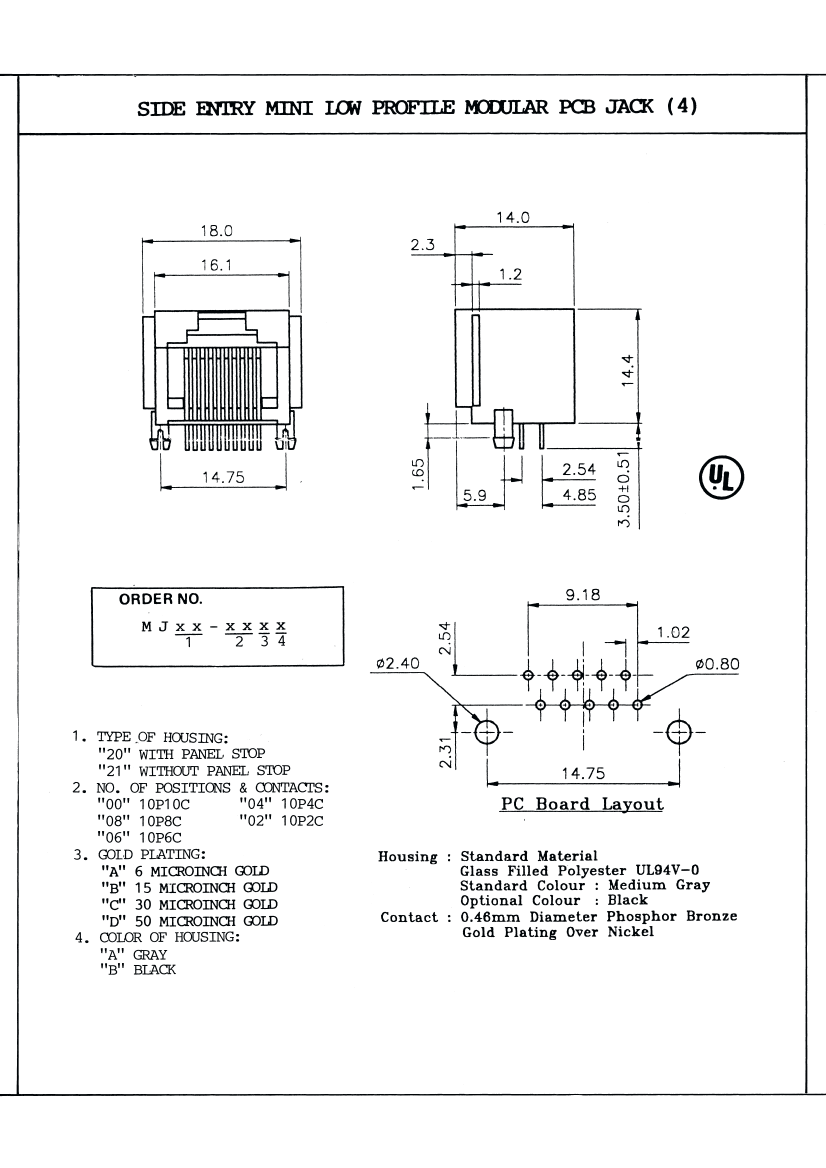

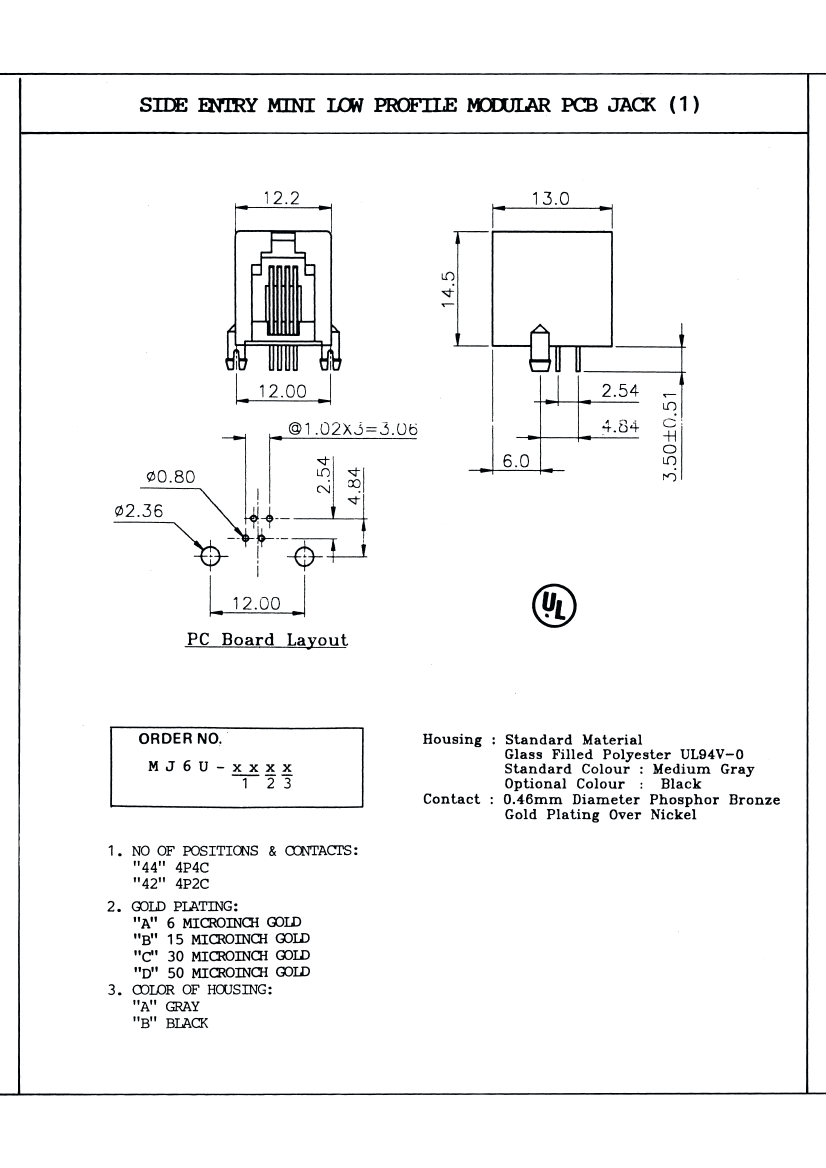

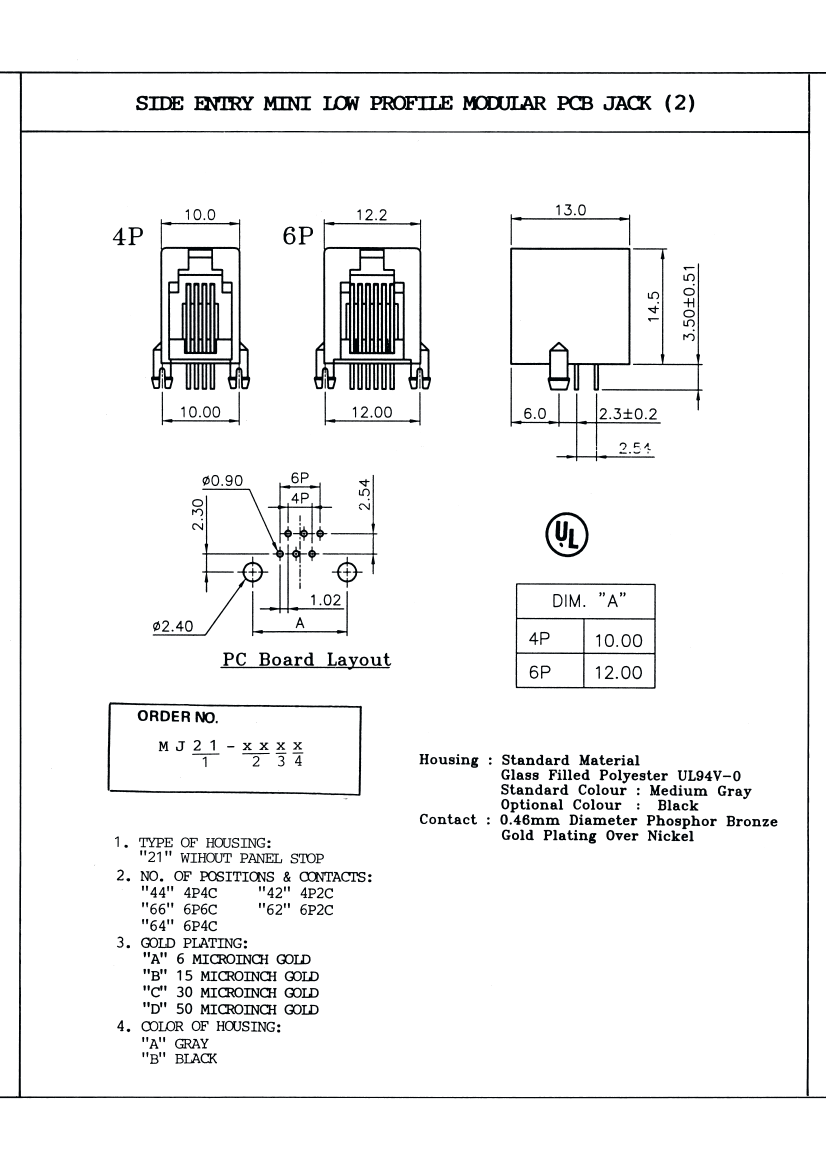

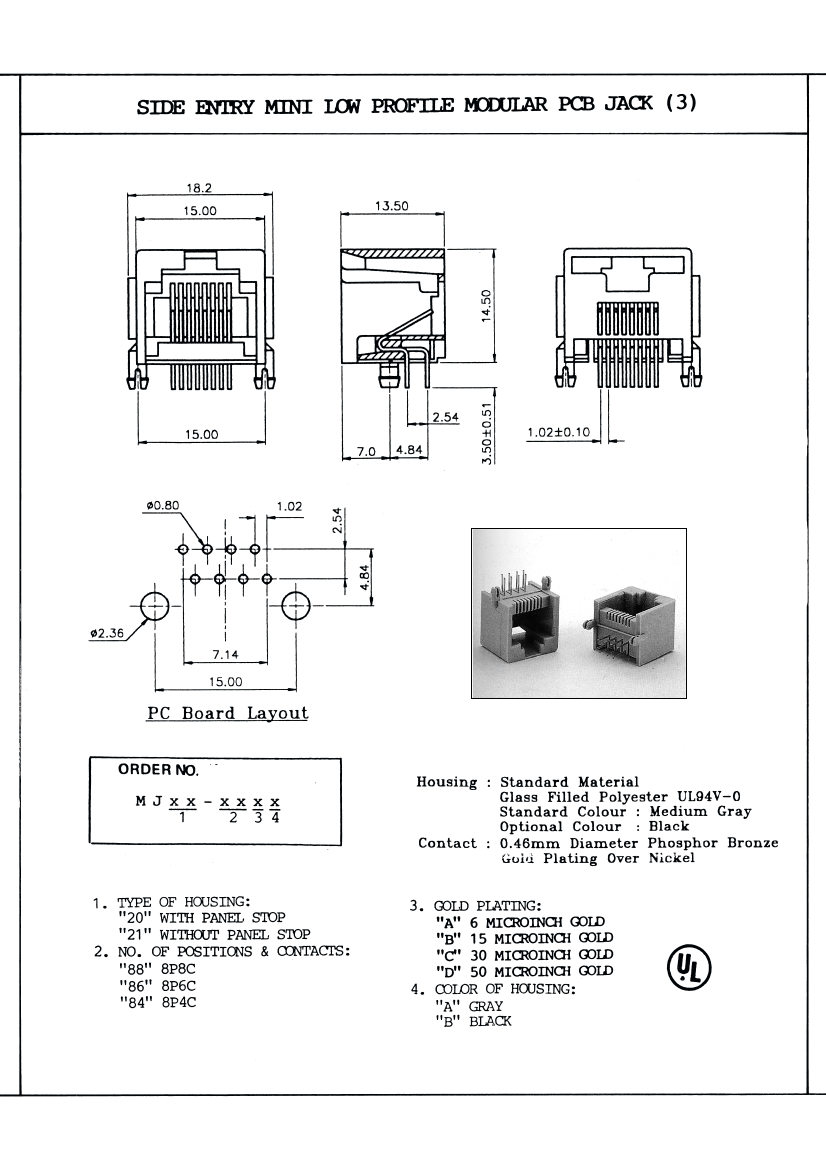

MJ20-08DB Overview

Telecom and Datacom Connector, 10 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

MJ20-08DB Parametric

Parameter NameAttribute value
Objectid1166434546
Reach Compliance Codecompliant
ECCN codeEAR99
Board mount optionsSPLIT BOARD LOCK
body width0.567 inch
subject depth0.551 inch
body length0.709 inch
Body/casing typeRECEPTACLE
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationAU ON NI
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
Contact styleTELCOM, MODULAR
Insulator colorBLACK
insulator materialGLASS FILLED POLYESTER
Manufacturer's serial numberMJ
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of ports1
PCB contact patternSTAGGERED
Plating thickness50u inch
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.138 inch
Terminal pitch2.032 mm
Termination typeSOLDER
Total number of contacts10
