500G1-V04: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.197 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size29KB，2 Pages; ManufacturerSouth Sea Terminal Co., Ltd.

Download Datasheet Parametric View All

500G1-V04 Overview

Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.197 inch Pitch, Solder Terminal, Locking, Receptacle

500G1-V04 Parametric

Parameter Name	Attribute value
Objectid	303810978
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.402 inch
subject depth	0.482 inch
body length	0.787 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	500G1-V
Plug contact pitch	0.197 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	7 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.142 inch
Terminal pitch	5.0038 mm
Termination type	SOLDER
Total number of contacts	4

Preview

Download Datasheet

View All

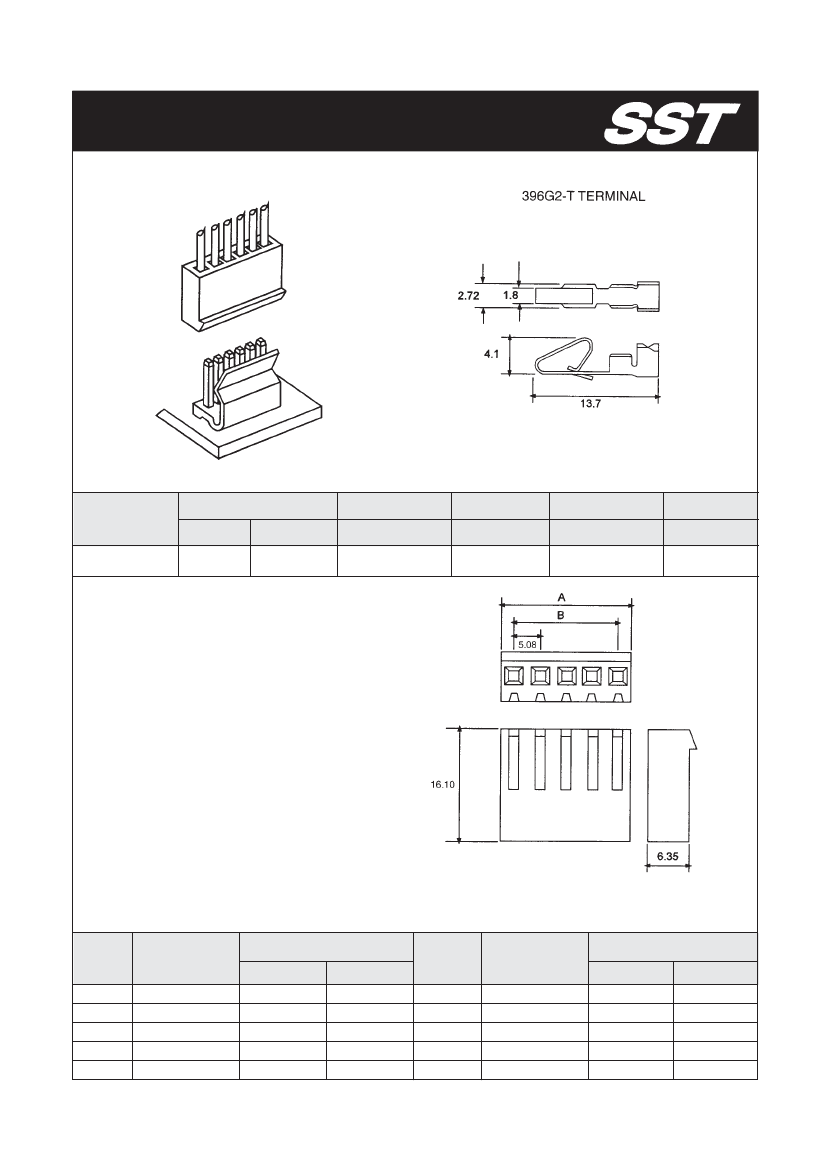

500G1 CONNECTOR SYSTEM

.197” (5.0mm) pitch wire-to-board type

WIRE RANGE

PART NO.

AWG#

396G2-T

18-24

mm

2

0.83-0.22

MATERIAL/

FINISH

BRASS/TIN

THICKNESS

mm

0.25

INSULATION

O.D.(mm)

3.0-1.5

REEL

PCS

7000

500G1-H SERIES HOUSING

MATERIAL : NYLON 66 UL 94V-2

ACCEPT 396G2-T TERMINAL

MATE WITH 500G1-V(R) HEADER

CURRENT RATING : 7A AC,DC

VOLTAGE RATING : 250V AC,DC

CONTACT RESISTANCE : 20m MAX

INSULATION RESISTANCE : 1000M MIN

WITHSTANDING VOLTAGE : 1500V AC/MINUTE

TEMPERATURE RANGE : -25ºC TO +85ºC

POLES

2

3

4

5

6

PART NO.

500G1-H02

500G1-H03

500G1-H04

500G1-H05

500G1-H06

DIMENSIONS (mm)

POLES

A

10.00

15.00

20.00

25.00

30.00

B

5.00

10.00

15.00

20.00

25.00

7

8

9

10

500G1-H07

500G1-H08

500G1-H09

500G1-H10

PART NO.

DIMENSIONS (mm)

A

35.00

40.00

45.00

50.00

B

30.00

35.00

40.00

45.00

Recommended Resources

CC4528 dual monostable flip-flop design multivibrator circuit diagram

Forgotten money alarm circuit

One of the micro DC motor thyristor speed regulating circuits

Function generator circuit with exponential digital control

Balancing circuit using triodes

Ground unbalance test circuit diagram
