ECS-135-20-7SX-AEL-TR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECS-135-20-7SX-AEL-TR

ECS-135-20-7SX-AEL-TR: DescriptionParallel - Fundamental Quartz Crystal, 13.5MHz Nom, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size402KB，3 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-135-20-7SX-AEL-TR Overview

Parallel - Fundamental Quartz Crystal, 13.5MHz Nom, SMD, 4 PIN

ECS-135-20-7SX-AEL-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145157410592
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	25 ppm
JESD-609 code	e3
load capacitance	20 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	13.5 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
physical size	12.5mm x 4.6mm x 3.7mm
Series resistance	50 Ω
surface mount	YES
Terminal surface	Tin (Sn)

Preview

Download Datasheet

View All

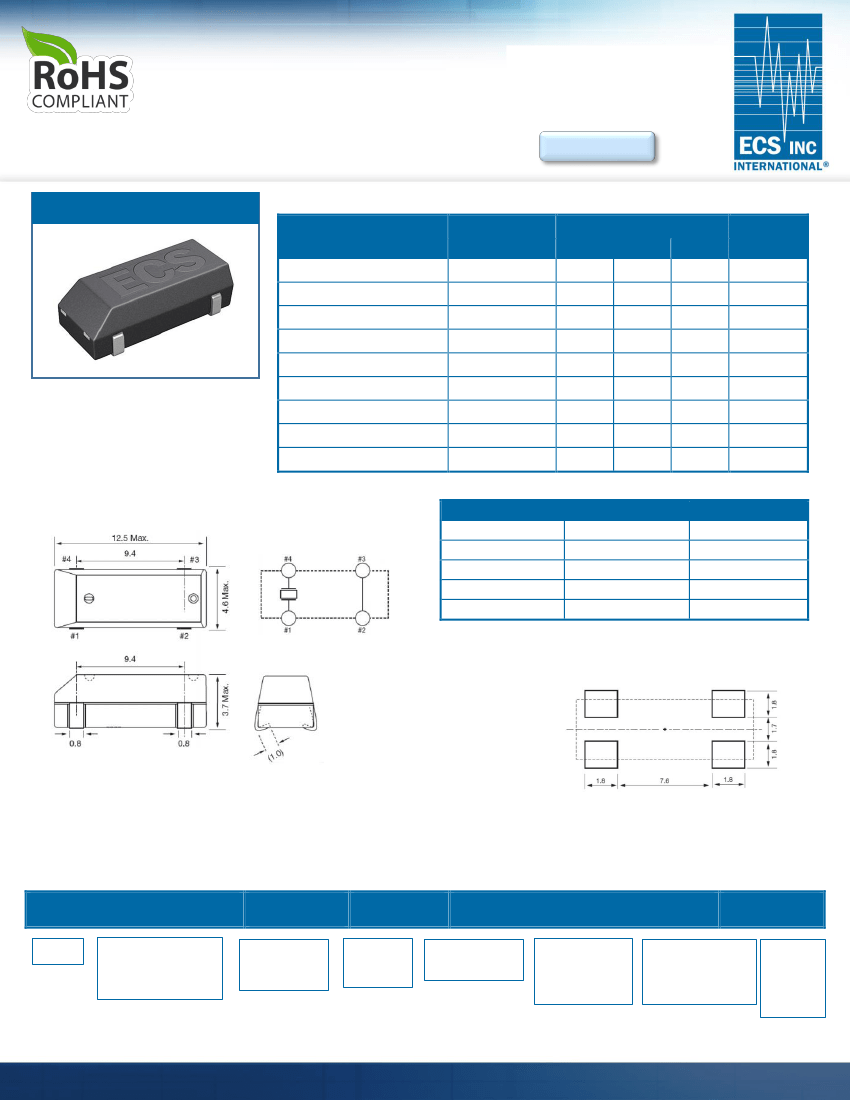

ECX-3SX

SMD CRYSTAL

The wide frequency range SMD quartz crystal is an excellent choice for surface

mount applications. The moulded package is made from the same

thermoplastic that is an industry standard for integrated

circuits.

Request a Sample

ECX-3SX SMD CRYSTAL

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency

Frequency Tolerance*

Frequency Stability*

Shunt Capacitance

Load Capacitance

Drive Level

@ +25°C

-10 ~ +70°C

CONDITIONS

MIN

ECX-3SX

TYP

MAX

UNITS

70.000

± 30

± 50

7.0

MHz

ppm

100

μW

°C

ppm

+70

+85

±5

3.570

Specify in P/N

opr

stg

@ +25°C ±3°C

Frequency (MHz)

3.57 ~ 3.999

4.000 ~ 5.999

6.000 ~ 9.999

10.000 ~ 35.999

27.000 ~ 70.000

ESR Ω Max.

200

150

100

-10

-40

•

Low Profile

Industry Standard Footprint

Extended Temp. Range Option

RoHS Compliant

Operating Temperature*

Storage Temperature

Aging (First Year)

DIMENSIONS (mm)

Mode of Osc.

Fundamental

Overtone

Figure 1)

Top, Side, and End

Figure 2)

Suggested land

pattern

PART NUMBERING GUIDE: Example ECS-160-20-7SX-TR

ECS - FREQUENCY ABBREVIATION

LOAD

CAPACITANCE

20 = 20 pF

S = Series

PACKAGE

Tolerance

7SX =

ECX-3SX

Blank = ±30ppm

A = ± 25

ppm

AVAILABLE OPTIONS

Stability

Blank= ±50ppm

D= ±100 ppm

E = ± 50 ppm

PACKAGING

Temp Range

Blank= -10 ~ +70°C

L = -10 ~ +70°C

M = -20 ~ +70°C

N = -40 ~ +85°C

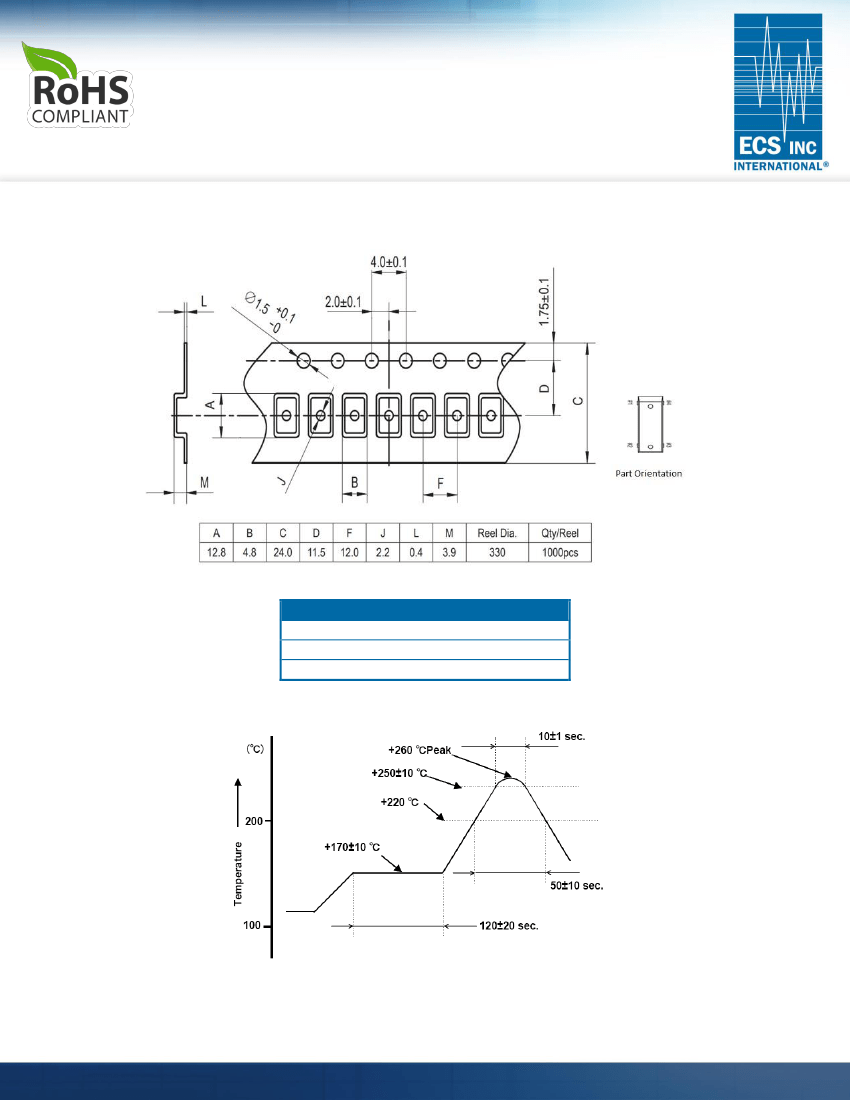

TR =

Tape

& Reel

1K/Reel

ECS

160 = 16.000 MHz

See Developed

Frequencies Pg. 2

* Specify available options in P/N.

†

Contact ECS for availability of extended temp range.

Rev.2020

15351 West 109

Street

Lenexa, KS 66219

Phone: 913.782.7787

Fax: 913.782.6991

www.ecsxtal.com
