MFS1/2CLT52A4223F datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> MFS1/2CLT52A4223F

MFS1/2CLT52A4223F: DescriptionRESISTOR, METAL FILM, 0.6W, 1%, 50ppm, 422000ohm, THROUGH HOLE MOUNT, AXIAL LEADED; CategoryPassive components The resistor; File Size102KB，1 Pages; ManufacturerKOA

Download Datasheet Parametric View All

MFS1/2CLT52A4223F Overview

RESISTOR, METAL FILM, 0.6W, 1%, 50ppm, 422000ohm, THROUGH HOLE MOUNT, AXIAL LEADED

MFS1/2CLT52A4223F Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1798263526
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH PRECISION, LASER TRMMABLE
JESD-609 code	e0
Manufacturer's serial number	MFS1/2
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
method of packing	AMMO PACK
Rated power dissipation(P)	0.6 W
Rated temperature	70 °C
resistance	422000 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL FILM
Temperature Coefficient	50 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WIRE
Tolerance	1%
Operating Voltage	350 V

Preview

Download Datasheet

View All

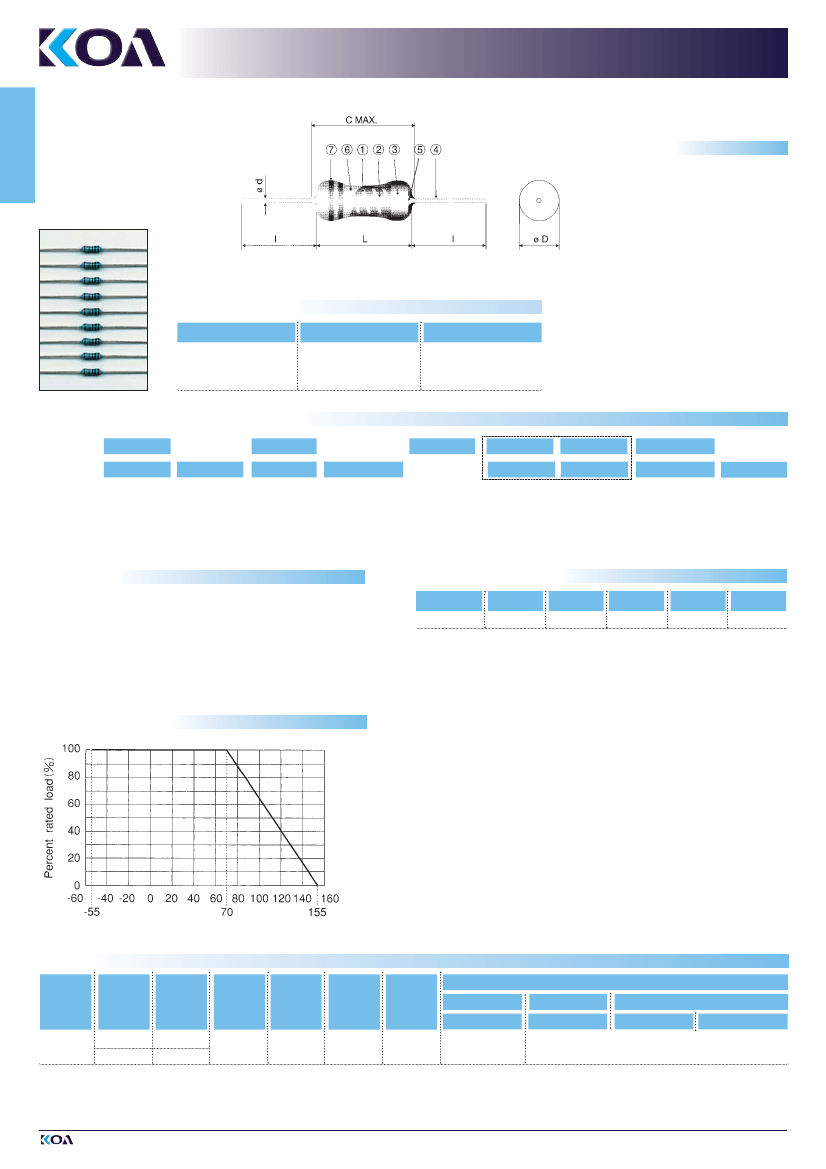

RESISTORS

TECHNOLOGY OF TOMORROW

RESISTORS

METAL FILM

EXTENDED POWER RATING

MFS 1/2 (MSE 50)

STRUCTURE

Ceramic core

Trimmed metal film

Steel cap

(Cu, Sn plated)

Lead wire

Welding joint

Expoxy resin overcoating

Marking

IDENTIFICATION

PRODUCT CODE

MFS 1/2

COATING COLOR

Light Grey

MARKING

Color Code

(R-value and

tolerance)

TYPE DESIGNATION (HOW TO ORDER)

Old Part No.

New Part No.

(Pb-free)

MSE 50

MFS

PRODUCT

CODE

1/2

POWER

RATING

0.6 Watt

T.C.R.

C: ±50ppm/K

K: ±100ppm/K (old)

D: ±100ppm/K (new)

TERMINATION

SURFACE

MATERIAL

C: SnCu

L: Sn/Pb

T52

PACKAGING

A: Ammo

R: Reel

Specifications given herein may be changed at any time without prior notice.

Please confirm technical specifications before you order and/or use.

1002

NOMINAL

RESISTANCE

D, F: 4 digits

G, J: 3 digits

RESISTANCE

TOLERANCE

D, F, G, J

RESISTANCE

TOLERANCE

TAPING &

FORMING

*Please see “PACKAGING”

FEATURES

■

Size 0207 with 0.6 Watt power rating

High precision and low T.C.R. metal film resistor

Automatic insertion is applicable

Variable formings are available

Excellent long term stability

Meets or exceeds IEC 60 115-8, JIS C 5201-1

Rated ambient temperature: +70°C

Operating temperature range: -55°C ... +155°C

DIMENSIONS (mm)

TYPE

MFS 1/2

6.5 ± 0.5

C Max.

7.1

2.3 ± 0.3

d (nominal)

0.6

30 ± 3

DERATING CURVE

Ambient temperature (°C)

RATING

DIN

SIZE

TYPE

T.C.R.

(ppm/K)

C (± 50)

D (± 100)

POWER

RATING*

MAX.

WORKING

VOLTAGE

350 V

MAX.

OVERLOAD

VOLTAGE

DIELECTRIC

WITH-

STANDING

VOLTAGE

RESISTANCE RANGE

E96

D (±0.5%)

Ω

... 1 MΩ

E24 • E96

F (±1%)

G (±2%)

2.2

Ω

... 2.2 MΩ

E24

J (±5%)

0207

MFS 1/2 C

MFS 1/2 D

0.6 W

700 V

500 V

* For resistors operated in ambient temperature over +70°C, power rating shall be derated like shown in above „DERATING CURVE“.

EUROPE GmbH • Kaddenbusch 6 • D-25578 Dägeling / ITZEHOE • PHONE: +49 (0) 48 21 / 89 89-0 • FAX: +49 (0) 48 21/ 89 89 89 • Internet: www.koaeurope.de

Revision: 5. Nov. 2004
