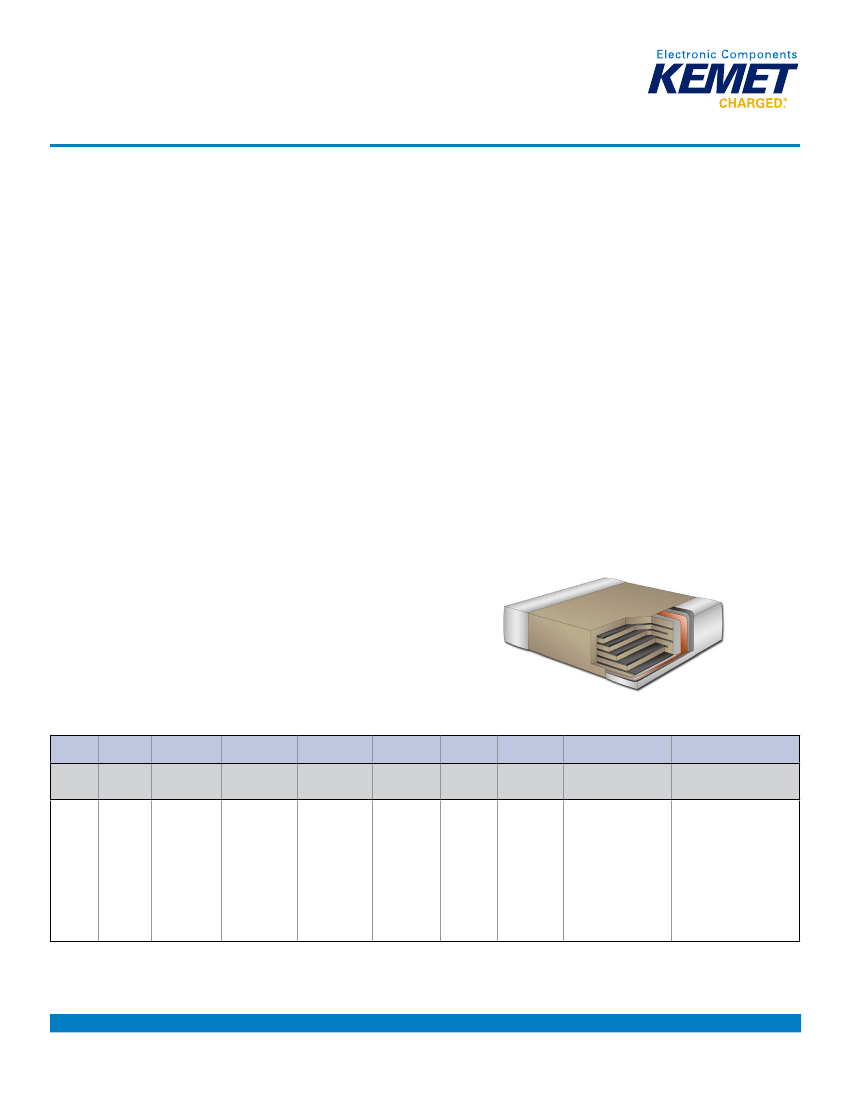

C1206X472J1RACAUTO7411 datasheet, PDF

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

Flexible Termination System (FT-CAP) X7R Dielectric,

6.3 – 250 VDC (Commercial & Automotive Grade)

Overview

KEMET’s Flexible Termination (FT-CAP) multilayer ceramic

capacitor in X7R dielectric incorporates a unique, flexible

termination system that is integrated with KEMET’s standard

termination materials. A conductive silver epoxy is utilized

between the base metal and nickel barrier layers of KEMET’s

standard termination system in order to establish pliability

while maintaining terminal strength, solderability and electrical

performance. This technology was developed in order to

address the primary failure mode of MLCCs– flex cracks, which

are typically the result of excessive tensile and shear stresses

produced during board flexure and thermal cycling. Flexible

termination technology inhibits the transfer of board stress to the

rigid ceramic body, therefore mitigating flex cracks which can

result in low IR or short circuit failures.

Although this technology does not eliminate the potential

for mechanical damage that may propagate during extreme

environmental and handling conditions, it does provide superior

flex performance over standard termination systems.FT-CAP

complements KEMET’s Open Mode, Floating Electrode (FE-

CAP), Floating Electrode with Flexible Termination (FF-CAP)

and KEMET Power Solutions (KPS) product lines by providing a

complete portfolio of flex mitigation solutions.

Combined with the stability of an X7R dielectric and designed to

accommodate all capacitance requirements, these flex-robust

devices are RoHS-compliant, offer up to 5mm of flex-bend

capability and exhibit a predictable change in capacitance with

respect to time and voltage. Capacitance change with reference to

ambient temperature is limited to ±15% from -55°C to +125°C.

In addition to commercial grade, automotive grade devices are

available which meet the demanding Automotive Electronics

Council's AEC–Q200 qualification requirements.

Ordering Information

C

Ceramic

1206

X

106

Capacitance

Code (pF)

2 significant

digits +

number of

zeros

K

Capacitance

Tolerance

J = ±5%

K = ±10%

M = ±20%

4

Voltage

9 = 6.3 V

8 = 10 V

4 = 16 V

3 = 25 V

5 = 50 V

1 = 100 V

2 = 200 V

A = 250 V

R

Dielectric

R = X7R

A

Failure Rate/

Design

A = N/A

C

Termination Finish

1

C = 100% Matte Sn

L = SnPb (5%

minimum)

AUTO

Packaging/Grade

(C-Spec)

2

Blank = Bulk

TU = 7" Reel Unmarked

TM = 7" Reel Marked

AUTO = Automotive

Grade 7" Reel Unmarked

Case Size

Specification/

(L" x W")

Series

0603

0805

1206

1210

1808

1812

1825

2220

2225

X = Flexible

Termination

Additional termination finish options may be available. Contact KEMET for details.

SnPb termination finish option is not available on Automotive Grade product.

2

Additional reeling or packaging options may be available. Contact KEMET for details.

1

1,2

One world. One KEMET

C1013_X7R_FT-CAP_SMD • 4/17/2014

1

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

Flexible Termination System (FT-CAP), X7R Dielectric, 6.3 – 250 VDC (Commercial Grade & Automotive Grade)

Dimensions – Millimeters (Inches)

W

T

S

L

B

EIA

Size

Code

0603

0805

1206

1210

1

1808

1812

1825

2220

2225

1

Metric

Size

Code

1608

2012

3216

3225

4520

4532

4564

5650

5664

L

Length

W

Width

T

Thickness

B

Bandwidth

0.45 (.018) ± 0.15 (.006)

0.50 (0.02) ± 0.25 (.010)

0.60 (.024) ± 0.25 (.010)

S

Separation

Minimum

0.58 (.023)

0.75 (.030)

Mounting

Technique

Solder Wave

or

Solder Reflow

1.60 (.064) ± 0.17 (.007) 0.80 (.032) ± 0.15 (.006)

2.00 (.079) ± 0.20 (.008) 1.25 (.049) ± 0.20 (.008)

3.30 (.130) ± 0.40 (.016) 1.60 (.063) ± 0.20 (.008)

3.30 (.130) ± 0.40 (.016) 2.50 (.098) ± 0.20 (.008)

4.70 (.185) ± 0.50 (.020) 2.00 (.079) ± 0.20 (.008)

4.50 (.178) ± 0.40 (.016) 3.20 (.126) ± 0.30 (.012)

4.60 (.181) ± 0.40 (.016) 6.40 (.252) ± 0.40 (.016)

5.90 (.232) ± 0.75 (.030) 5.00 (.197) ± 0.40 (.016)

5.90 (.232) ± 0.75 (.030) 6.40 (.248) ± 0.40 (.016)

See Table 2 for

Thickness

0.70 (.028) ± 0.35 (.014)

Ceramic Surface Mount

0.70 (.028) ± 0.35 (.014)

N/A

Solder Reflow

Only

For capacitance values ≥ 12 µF add 0.02 (0.001) to the width tolerance dimension

Benefits

•

-55°C to +125°C operating temperature range

Superior flex performance (up to 5 mm)

High capacitance flex mitigation

Pb-Free and RoHS Compliant

EIA 0603, 0805, 1206, 1210, 1808, 1812, 1825, 2220, and

2225 case sizes

• DC voltage ratings of 6.3 V, 10 V, 16 V, 25 V, 50 V, 100 V,

200 V, and 250 V

Capacitance offerings ranging from 180 pF to 22 μF

Available capacitance tolerances of ±5%, ±10%, and ±20%

Non-polar device, minimizing installation concerns

100% pure matte tin-plated termination finish allowing for

excellent solderability

• SnPb termination finish option available upon request (5% min)

• Commercial and Automotive (AEC–Q200) grades available

•

Applications

Typical applications include circuits with a direct battery or power source connection, critical and safety relevant circuits without

(integrated) current limitation and any application that is subject to high levels of board flexure or temperature cycling. Examples

include raw power input side filtering (power plane/bus), high current applications (automobile battery line) and circuits that cannot be

fused to open. Markets include consumer, medical, industrial (power supply), automotive, aerospace and telecom.

C1013_X7R_FT-CAP_SMD • 4/17/2014

2

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

Flexible Termination System (FT-CAP), X7R Dielectric, 6.3 – 250 VDC (Commercial Grade & Automotive Grade)

Qualification/Certification

Commercial Grade products are subject to internal qualification. Details regarding test methods and conditions are referenced in

Table 4, Performance & Reliability.

Automotive Grade products meet or exceed the requirements outlined by the Automotive Electronics Council. Details regarding test

methods and conditions are referenced in document AEC–Q200, Stress Test Qualification for Passive Components. For additional

information regarding the Automotive Electronics Council and AEC–Q200, please visit their website at www.aecouncil.com.

Environmental Compliance

Lead (Pb)-Free, RoHS, and REACH compliant without exemptions (excluding SnPb termination finish option).

Electrical Parameters/Characteristics

Item

Operating Temperature Range

Capacitance Change with Reference to +25°C and 0 VDC Applied (TCC)

Aging Rate (Maximum % Capacitance Loss/Decade Hour)

Dielectric Withstanding Voltage (DWV)

Dissipation Factor (DF) Maximum Limit @ 25ºC

Insulation Resistance (IR) Limit @ 25°C

-55°C to +125°C

±15%

3.0%

250% of rated voltage

(5 ±1 seconds and charge/discharge not exceeding 50 mA)

5% (6.3 and 10 V), 3.5% (16 and 25 V) and 2.5% (50 to 250 V)

See Insulation Resistance Limit Table

(Rated voltage applied for 120 ±5 seconds @ 25°C)

Parameters/Characteristics

Regarding aging rate: Capacitance measurements (including tolerance) are indexed to a referee time of 1,000 hours.

To obtain IR limit, divide MΩ-µF value by the capacitance and compare to GΩ limit. Select the lower of the two limits.

Capacitance and dissipation factor (DF) measured under the following conditions:

1 kHz ±50 Hz and 1.0 ±0.2 Vrms if capacitance ≤ 10 µF

120 Hz ±10 Hz and 0.5 ±0.1 Vrms if capacitance > 10 µF

Note: When measuring capacitance it is important to ensure the set voltage level is held constant. The HP4284 and Agilent E4980 have a feature known as

Automatic Level Control (ALC). The ALC feature should be switched to "ON."

C1013_X7R_FT-CAP_SMD • 4/17/2014

3

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

Flexible Termination System (FT-CAP), X7R Dielectric, 6.3 – 250 VDC (Commercial Grade & Automotive Grade)

Post Environmental Limits

High Temperature Life, Biased Humidity, Moisture Resistance

Dielectric

Rated DC

Voltage

> 25

X7R

16/25

< 16

All

Capacitance

Value

Dissipation Factor

(Maximum %)

3.0

5.0

7.5

±20%

10% of Initial Limit

Capacitance

Shift

Insulation

Resistance

Insulation Resistance Limit Table (X7R Dielectric)

EIA Case Size

0201

0402

0603

0805

1206

1210

1808

1812

1825

2220

2225

1,000 Megohm

Microfarads or 100 GΩ

N/A

< 0.012 µF

< 0.047 µF

< 0.15 µF

< 0.47 µF

< 0.39 µF

ALL

< 2.2 µF

ALL

< 10 µF

ALL

500 Megohm

Microfarads or 10 GΩ

ALL

≥ 0.012 µF

≥ 0.047 µF

≥ 0.15 µF

≥ 0.47 µF

≥ 0.39 µF

N/A

≥ 2.2 µF

N/A

≥ 10 µF

N/A

C1013_X7R_FT-CAP_SMD • 4/17/2014

4

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

Flexible Termination System (FT-CAP), X7R Dielectric, 6.3 – 250 VDC (Commercial Grade & Automotive Grade)

Table 1A – Capacitance Range/Selection Waterfall (0603 – 1210 Case Sizes)

Cap

Code

181

221

271

331

391

471

561

681

821

102

122

152

182

222

272

332

392

472

562

682

822

103

123

153

183

223

273

333

393

473

563

683

823

104

124

154

184

224

274

334

394

474

564

684

824

105

125

155

185

225

275

335

395

475

565

685

825

Case Size/

Series

Voltage Code

Rated Voltage

(VDC)

Cap Tolerance

J

K

M

9

6.3

8

10

C0603X

4

16

3

25

5

50

1

100

2

200

9

6.3

8

10

4

C0805X

3

25

5

50

1

100

2

200

A

250

9

6.3

8

10

4

16

C1206X

3

25

5

50

1

100

2

200

A

250

9

6.3

8

10

4

16

C1210X

3

25

5

50

1

100

2

200

FB

FC

FF

FG

200

2

A

250

FB

FC

FF

FG

250

A

16

FB

FC

FD

FF

FH

FJ

FE

FF

FG

FC

FF

FG

FH

16

Product Availability and Chip Thickness Codes – See Table 2 for Chip Thickness Dimensions

CB

CF

CB

CF

CB

CF

CB

CD

CB

CF

CB

CF

CB

CF

CB

CF

CB

CF

CB

CF

CB

CF

CB

CD

CB

CF

CB

CF

CB

CF

CB

CF

CB

DC

DD

DC

DD

DG

DD

DE

DG

DC

DD

DC

DD

DG

DD

DE

DG

DC

DD

DC

DD

DG

DD

DE

DG

DC

DD

DC

DD

DG

DC

DD

DC

DD

DG

DD

DE

DH

DC

DD

DE

DG

DC

DE

DG

DC

180 pF

220 pF

270 pF

330 pF

390 pF

470 pF

560 pF

680 pF

820 pF

1,000 pF

1,200 pF

1,500 pF

1,800 pF

2,200 pF

2,700 pF

3,300 pF

3,900 pF

4,700 pF

5,600 pF

6,800 pF

8,200 pF

10,000 pF

12,000 pF

15,000 pF

18,000 pF

22,000 pF

27,000 pF

33,000 pF

39,000 pF

47,000 pF

56,000 pF

68,000 pF

82,000 pF

0.10 µF

0.12 µF

0.15 µF

0.18 µF

0.22 µF

0.27 µF

0.33 µF

0.39 µF

0.47 µF

0.56 µF

0.68 µF

0.82 µF

1.0 µF

1.2 µF

1.5 µF

1.8 µF

2.2 µF

2.7 µF

3.3 µF

3.9 µF

4.7 µF

5.6 µF

6.8 µF

8.2 µF

EB EB EB EB EB

EB

EC

EB

EC

ED

EE

EF

ED

EF

ED

EN

ED

EF

EH

6.3

EB

EC

EB

EC

ED

EE

EF

ED

EF

ED

EN

ED

EF

EH

10

EB

EC

EB

EC

ED

EE

EF

ED

EF

ED

EN

ED

EF

EH

16

EB

EC

EB

EC

ED

EE

EF

EG

EF

EH

EB

EC

ED

EH

EB

EC

EB

EC

EM

EG

EB

ED

EM

EG

EB

ED

EM

FB

FC

FD

FF

FH

FJ

FE

FF

FG

FC

FF

FG

FH

6.3

FB

FC

FD

FF

FH

FJ

FE

FF

FG

FC

FF

FG

FH

10

FB

FC

FD

FF

FH

FJ

FG

FM

FG

FH

FM

FK

25

FB

FC

FD

FF

FH

FG

FH

FM

FK

FS

FB

FC

FD

FF

FG

FL

FM

Cap

Code

Rated Voltage

(VDC)

Voltage Code

200

250

100

9

8

4

3

5

1

2

9

8

4

3

5

1

2

A

9

8

4

3

5

1

2

A

9

8

4

3

5

Case Size/

Series

C0603X

C0805X

C1206X

C1210X

C1013_X7R_FT-CAP_SMD • 4/17/2014

100

1

6.3

50

25

10

16

10

16

5

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8058324955
package instruction	, 1206
Reach Compliance Code	compliant
YTEOL	7.85
capacitance	0.0047 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.78 mm
JESD-609 code	e3
length	3.3 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, PUNCHED PAPER, 13 INCH
positive tolerance	5%
Rated (DC) voltage (URdc)	100 V
Guideline	AEC-Q200
size code	1206
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	1.6 mm

C1206X472J1RACAUTO7411

C1206X472J1RACAUTO7411 Overview

C1206X472J1RACAUTO7411 Parametric

Preview

Recommended Resources
