Tantalum Surface Mount Capacitors – Space Grade
T496 Space Grade Fail-Safe Fused MnO
2
Overview
KEMET's Space Grade capacitors are suitable for use by
the defense/aerospace customers in high reliability space
applications. These capacitors meet the requirements
of MIL–PRF–55365 as well as MIL–STD–1580. These
capacitors incorporate an intensive testing and screening
protocol which is customizable depending upon
customer's specific needs.
The full part number allows for designation of surge current
level (10 cycles −55°C and +85°C before and/or after
Weibull grading, 10 cycles +25°C), performance testing
level (see chart for details on available options), ESR (low
and standard), and termination finish (see description in
each series). Fused versions are available for built-in circuit
protection, as well as multi-anode designs for very low ESR
values.
Benefits
• Internal fuse protects against damaging short circuit failure
mode
• Standard case sizes B, C, D, X per EIA 535BAAC
• 100% surge current test available
• Optional gold-plated terminations
• Operating temperature range of −55°C to +125°C
• Fuse activation, 25°C: within 1 second at fault currents of
4 amps and higher
• Continuous current capability: 0.75 amps
• Post actuation resistance, 25°C: 10 MΩ, minimum
• Test tabs on side of case bypass the capacitor element to
allow direct testing of the fuse assembly
• Weibull Grading C (0.01%/1,000 hours)
• Capacitance values of 0.15 μF to 470 μF
• Voltage rating of 4 – 50 VDC

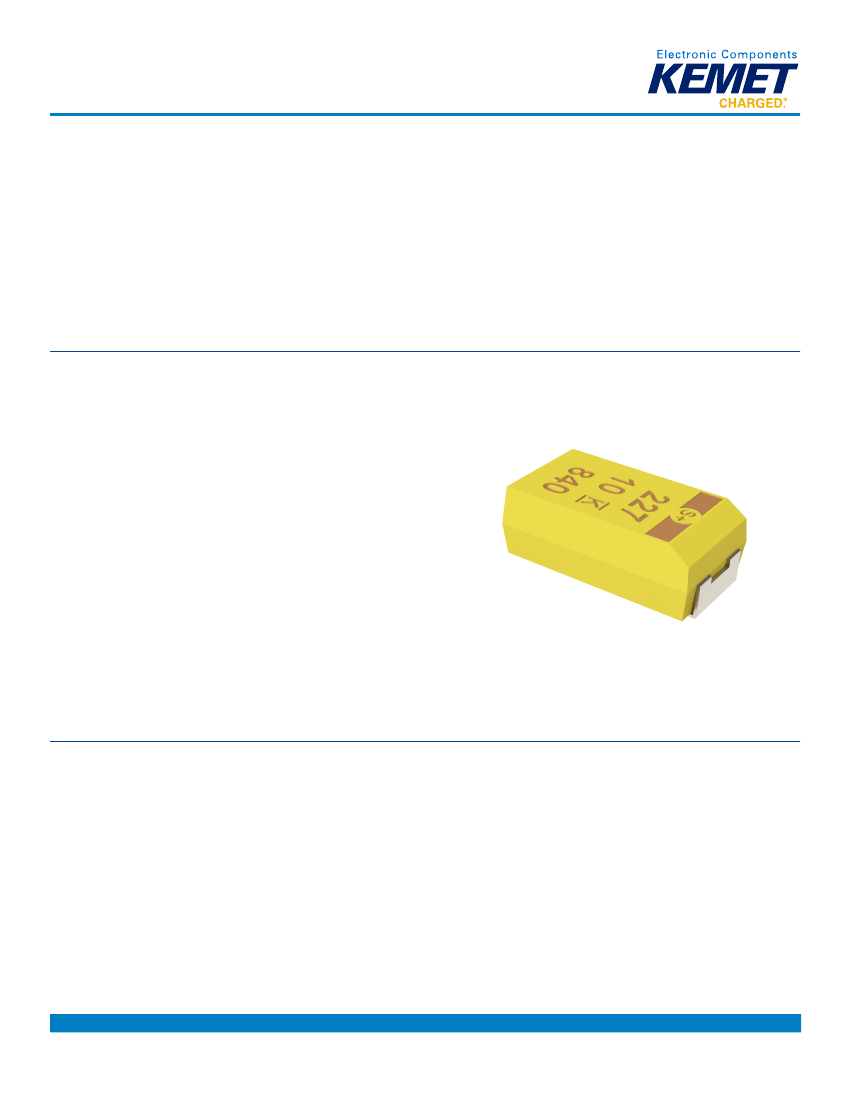

Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
K-SIM
For a detailed analysis of specific part numbers, please visit ksim.kemet.com to access KEMET's K-SIM software. KEMET
K-SIM is designed to simulate behavior of components with respect to frequency, ambient temperature, and DC bias levels.
One world. One KEMET
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2026_T496_SPACE • 11/7/2018
1
Tantalum Surface Mount Capacitors – Space Grade
T496 Space Grade Fail-Safe Fused MnO
2
Ordering Information
T
Capacitor
Class
T=
Tantalum
496
Series
Fail
safe -
Space
grade
X
227
K
010
Voltage
004 = 4 V
006 = 6.3 V
010 = 10 V
016 = 16 V
020 = 20 V
025 = 25 V
035 = 35 V
050 = 50 V
C
Failure
Rate/
Design
C=
0.01%
1,000
hours
H
Lead
Material
C = Hot solder
dipped
H = Standard
solder-coated
(SnPb 5% Pb
minimum)
T = 100%
Matte Tin (Sn)
plated
63
Surge
61 = No Surge
62 = 10 Cycles
after Weibull, 25°C
63 = 10 Cycles,
after Weibull,
−55°C and 85°C
64 = 10 Cycles
before Weibull,
−55°C and 85°C
65 = 10 Cycles
before and after
Weibull, −55°C and
85°C
2
ESR
1 = ESR -
standard
2 = ESR -
low
A
Testing
A = Option A
B = Option B
C = Option C
Case Capacitance Capacitance
Size Code (pF)
Tolerance
B
C
D
X
First two
K = ±10%
digits
M = ±20%
represent
significant
figures. Third
digit specifies
number of
zeros.
Packaging
(C-Spec)
Blank = 7" Reel
7280 = 13" Reel
7610 = Bulk bag
7640 = Bulk
plastic box
WAFL = Waffle
pack
Performance Characteristics
Item
Operating Temperature
Rated Capacitance Range
Capacitance Tolerance
Rated Voltage Range
DF (120 Hz)
ESR (100 kHz)
Leakage Current
−55°C to 125°C
0.15 – 470 µF at 120 Hz/25°C
K Tolerance (10%), M Tolerance (20%)
4 – 50 V
Refer to Part Number Electrical Specification Table
Refer to Part Number Electrical Specification Table
≤ 0.01 CV (µA) at rated voltage after 5 minutes
Performance Characteristics
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2026_T496_SPACE • 11/7/2018
2
Tantalum Surface Mount Capacitors – Space Grade
T496 Space Grade Fail-Safe Fused MnO
2
Qualification
Test
Endurance
Condition
Δ C/C
85°C at rated voltage, 2,000 hours
125°C at 2/3 rated voltage, 2,000 hours
DF
DCL
ESR
Δ C/C
DF
DCL
ESR
Δ C/C
MIL–STD–202, Method 107, Condition B, mounted,
−55C° to 125°C, 1,000 cycles
DF
DCL
ESR
+25°C
Extreme temperature exposure at a
succession of continuous steps at +25°C,
−55°C, +25°C, +85°C, +125°C, +25°C
Δ C/C
DF
DCL
25°C and 85°C, 1.32 x rated voltage 1,000 cycles.
(125°C, 1.2 x rated voltage)
IL*
IL
IL
Δ C/C
DF
DCL
ESR
Δ C/C
DF
DCL
Characteristics
Within ±10% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
Within ±10% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
Within ±5% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
−55°C
±10%
IL
n/a
+85°C
±10%
1.5 x IL
10 x IL
+125°C
±20%
1.5 x IL
12 x IL
Storage Life
125°C at 0 Volts, 2,000 hours
Thermal Shock
Temperature Stability
Within ±5% of initial value
Within initial limits
Within initial limits
Within initial limits
Within ±10% of initial value
Within initial limits
Within initial limits
Surge Voltage
Mechanical Shock/
Vibration
*IL = Initial Limit
MIL–STD–202, Method 213, Condition I, 100 G peak.
MIL–STD–202, Method 204, Condition D, 10 Hz to 2,000
Hz, 20 G peak
Certification
DSCC Drawing 04053
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2026_T496_SPACE • 11/7/2018
3
Tantalum Surface Mount Capacitors – Space Grade
T496 Space Grade Fail-Safe Fused MnO
2
Test Methods
Test Sequence
100% Serialization
100% IR Reflow
100% Thermal Shock
100% Electrical Verification
Read and Record Attributes/Variables Data
100% Surge Current, Option C with 5% PDA Calculation
100% Electrical Verification
Read and Record Attributes/Variables Data
100% Voltage Aging, 10 hours at 1.32 Vr
100% Electrical Verification
100% Weibull Grading C
100% Electrical Verification
Read and Record Attributes/Variables Data
100% Surge Current, Option A or B with 5% PDA Calculation
100% Electrical Verification
Read and Record Attributes/Variables Data
3 Sigma Screening – All Electricals
Read and Record Attributes/Variables Data
Destructive Physical Analysis (DPA) (5 pieces- each lot)
Group B Testing (22 pieces – each lot)
Temperature Stability – sample
Solderability – Sample
Group C Testing (57 pieces - each Lot)**
100% X-ray
100% X-ray – 2 Plane***
100% Physical Dimension Verification
Data Pack
Group A and C Summaries
2 Plane X-ray JPEG photos
DPA Report
Attributes/Variables Data for Cap/Df/DCL/ESR
X
X
X
X
X
X
X
Test Method
KEMET Standard
MIL–PRF–55365
MIL–PRF–55365
KEMET Standard
KEMET Standard
MIL–PRF–55365 with 5% PDA Calculation
KEMET Standard
KEMET Standard
MIL–PRF–55365
KEMET Standard
MIL–PRF–55365
KEMET Standard
KEMET Standard
MIL–PRF–55365 with 5% PDA Calculation
KEMET Standard
KEMET Standard
KEMET Standard
KEMET Standard
MIL–PRF–55365
* See Note Below
MIL–PRF–55365
MIL–PRF–55365
MIL–PRF–55365
MIL–PRF–55365
MIL–PRF–55365 and KEMET Standard
MIL–PRF–55365
Option A
X
X
Option B
X
X
Option C
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
= Included in test option
* Group B Testing = 10,000 Cycles Surge Current, 85°C, 40% Vr
** Group C Post Moisture ESR limit = 1.25 initial limit
*** 2 Plane X-ray = Top and side views, molded case wall thickness minimum 0.005" on all sides, negative/positive termination attachment criteria per
MIL–STD–1580
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2026_T496_SPACE • 11/7/2018
4
Tantalum Surface Mount Capacitors – Space Grade
T496 Space Grade Fail-Safe Fused MnO
2

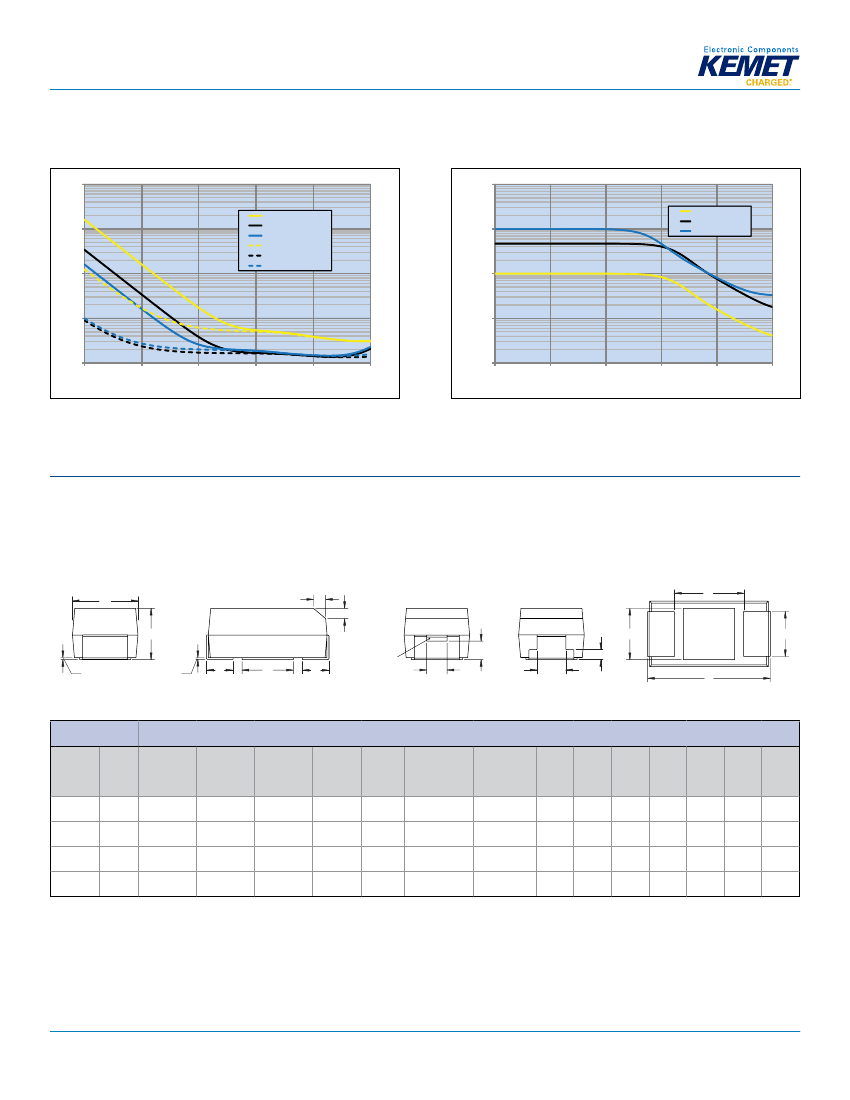

Electrical Characteristics
ESR vs. Frequency
1,000
1,000
T496B106M016ATE3K5
Capacitance vs. Frequency
T496B106M016ATE3K5_IMP
Impedance, ESR (Ohms)
T496X107M016ATE700_IMP
T496B106M016ATE3K5_ESR
T496D476M016ATE400_ESR
T496X107M016ATE700_ESR
10
Capacitance (µF)
100
T496D476M016ATE400_IMP
100
T496D476M016ATE400
T496X107M016ATE700
10
1
1
0.1
100
1,000
10,000
Frequency (Hz)
100,000
1,000,000
10,000,000
0
100
1,000
10,000
Frequency (Hz)
100,000
1,000,000
10,000,000
Dimensions – Millimeters (Inches)
Metric will govern
CATHODE (-) END VIEW
W
H
X
T
S
G
S
Termination cutout
at KEMET's option,
either end
SIDE VIEW
B
B
ANODE (+) END VIEW
ANODE (+)/CATHODE (−)
END VIEW
B case Only
E
P
P
R
BOTTOM VIEW
A
F
R
L
Case Size
KEMET
B
C
D
X
EIA
3528–21
Component
L
W
H
F ±0.1 S ±0.3 B ±0.15 (Ref)
±(0.004) ±(0.012) ±0.006
2.2
(0.087)
2.2
(0.087)
2.4
(0.094)
2.4
(0.094)
0.8
(0.031)
1.3
(0.051)
1.3
(0.051)
1.3
(0.051)
0.4
(0.016)
0.5
(0.020)
0.5
(0.020)
0.5
(0.020)
X
(Ref)
0.10±0.10
(0.004±0.004)
0.10±0.10
(0.004±0.004)
0.10±0.10
(0.004±0.004)
0.10±0.10
(0.004±0.004)
Net
P
R
T
A
G
E
Weight
(Ref) (Ref) (Ref) (Min) (Ref) (Ref) (mg)
0.4
(0.016)
0.9
(0.035)
0.9
(0.035)
1.7
(0.067)
1.5
(0.059)
1.0
(0.039)
1.0
(0.039)
1.0
(0.039)
0.13
(0.005)
0.13
(0.005)
0.13
(0.005)
0.13
(0.005)
1.1
(0.043)
2.5
(0.098)
3.8
(0.150)
3.8
(0.150)
1.8
2.2
107.45
(0.071) (0.087)
2.8
2.4
224.48
(0.110) (0.094)
3.5
3.5
446.84
(0.138) (0.138)
3.5
3.5
652.04
(0.138) (0.138)
3.5±0.2
2.8±0.2
1.9±0.2
(0.138±0.008) (0.110±0.008) (0.075±0.008)
6.0±0.3
3.2±0.3
2.5±0.3
6032–28
(0.236±0.012) (0.126±0.012) (0.098±0.012)
7.3±0.3
4.3±0.3
2.8±0.3
7343–31
(0.287±0.012) (0.169±0.012) (0.110±0.012)
7.3±0.3
4.3±0.3
4.0±0.3
7343–43
(0.287±0.012) (0.169±0.012) (0.157±0.012)
Notes: (Ref) – Dimensions provided for reference only. No dimensions provided for B, P or R because low profile cases do not have a bevel or a notch.
These weights are provided as a reference. If exact weights are needed, please contact your KEMET Sales Representative.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2026_T496_SPACE • 11/7/2018
5
