OD1238-24HBIP5501A

Description
fan 120x38mm ip55 24v tach
CategoryThermal management products
File Size255KB，1 Pages
ManufacturerOrion Fans
Websitehttp://www.orionfans.com
Environmental Compliance
Download Datasheet Parametric View All

OD1238-24HBIP5501A Overview

fan 120x38mm ip55 24v tach

OD1238-24HBIP5501A Parametric

Parameter NameAttribute value
Datasheets
OD1238 Series
AC,DC Part Number Guide
Orion Fan Catalog
Circuit Diagrams
Product Photos
OD1238 Series
Standard Package40
CategoryFans, Thermal Manageme
FamilyDC Fans
Voltage - Rated24VDC
Size / DimensiSquare - 120mm L x 120mm H x 38.5mm W
Air Flow105.0 CFM (2.97m³/min)
Static Pressure0.240 in H2O (59.8 Pa)
Bearing TypeBall
Fan TypeTubeaxial
FeaturesSpeed Sensor (Tach)
Noise43 dB
Power (Watts)7.00W
RPM2800 RPM
Terminati3 Wire Leads
Ingress ProtectiIP55 - Dust Protected, Water Resis
Weigh-
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
Current Rating0.320A
Voltage Range-
Life Expectancy65000 hrs @ 45°C
Material - FramePolybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - BladePolybutylene Terephthalate (PBT), Fiberglass Reinforced
Associated Produc1053-1489-ND - 120MM FAN FILTER MEDIA 45PPM1053-1488-ND - 120MM FAN FILTER MEDIA 30PPM
Other NamesOD123824HBIP5501AOD1238PT-24HBIP5501A

Preview

Download Datasheet

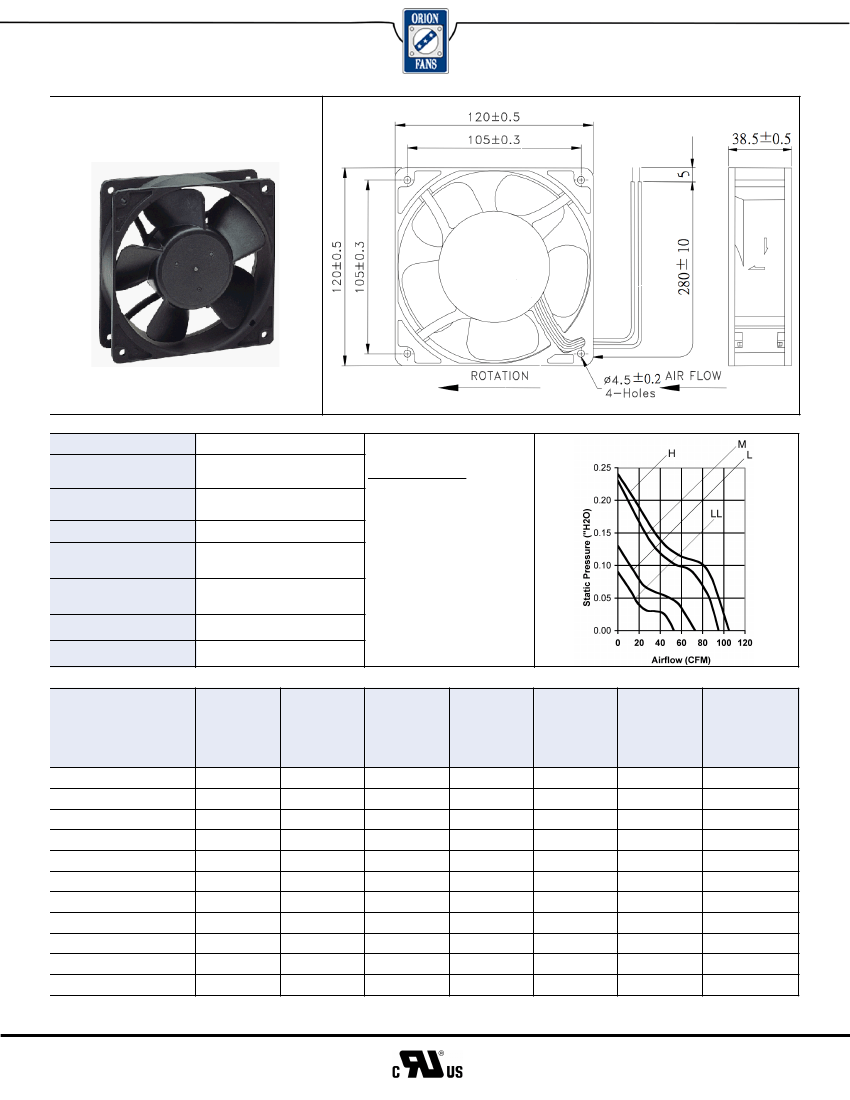

OD1238 Series
DC Fan
120x38mm (4.7”x 1.5”)
Frame & Impeller
Connection
Motor
Bearing System
Insulation Resistance
Dielectric Strength
Temperature Range
Life (L10)
PBT, UL94V-O plastic
2x Lead wires 24AWG
Brushless DC, auto restart,
IC protected
Dual ball bearing
10M ohm between leadwire
and frame (500VDC)
1 second at 500 VAC, max
leakage - 500 MicroAmp
-10C ~ +70C
65,000 hours (45C)
m1
Available Options
Tachometer,
Alarm,
Thermal control
PWM speed control
IP55
Sleeve Bearing
Model Number
OD1238-12HB
OD1238-12MB
OD1238-12LB
OD1238-12LLB
OD1238-24HB
OD1238-24MB
OD1238-24LB
OD1238-48HB
OD1238-48MB
OD1238-48LB
OD1238-48LLB
Speed (RPM)
2800
2540
1950
1500
2800
2540
1950
2800
2540
1950
1500
Airflow
(CFM)
105
95
73
53
105
95
73
105
95
73
53
Noise (dB)
43
41
33
27
43
41
33
43
41
33
27
Volts DC
12
12
12
12
24
24
24
48
48
48
48
Input Power
(Watts)
6
4
3
2
7
6
4
10
7
5
4
Amps
0.50
0.35
0.24
0.16
0.32
0.23
0.14
0.20
0.14
0.10
0.08
Max. Static
Pressure
(“H2O)
0.24
0.23
0.13
0.09
0.24
0.23
0.13
0.24
0.23
0.13
0.09
091410m1
10557 Metric Drive
Dallas, Texas 75243
214-340-0265
OrionFans.com
RoHS Compliant
Information and data is subject to
change without prior notification.
