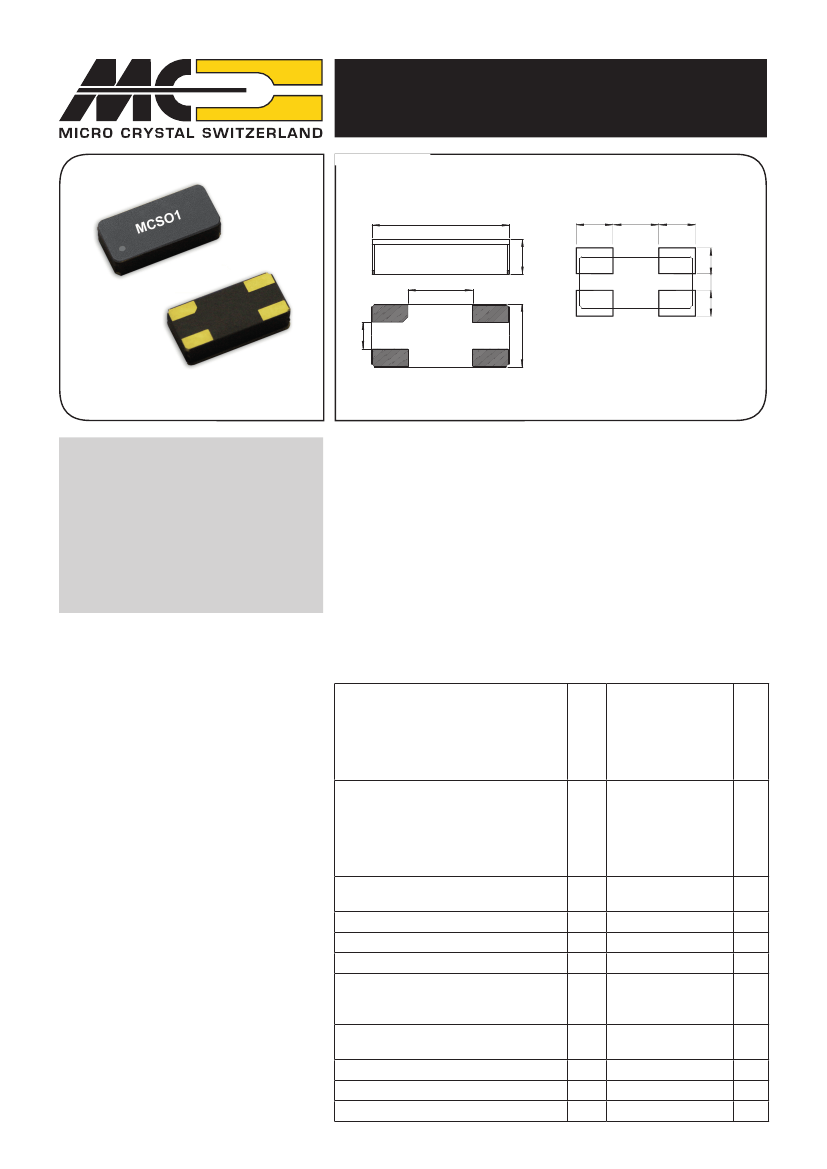

MCSO1
family package 8×4 mm
From 10 kHz up to 225 MHz
DIMENSIONS
Package:
Bottom view
7,86
Recommended Solder Pad:
2,54
3,18
2,54
3,70
4
1
3
2
1,52
1
4
2
3
3,60
pin 1 E/D
pin 2 GND
pin 3 Fout
pin 4 Vdd
All dimensions in mm typical
100% Leadfree, RoHScompliant:
SMT Clock oscillator in ceramic
package
Fundamental quartz mode frequency
High shock and vibration resistance
Wide temperature range
Low aging
Ultra low internal MSL
Very fast start-up
Excellent solderability
Swiss made quality
Customer specification on request
DESCRIPTION:
This SMD oscillator in ceramic package has been specially designed for
surface mount using infrared, vapor phase or epoxy techniques.
APPLICATIONS:
-
-
-
-
-
-
Avionics
Airbone equipments
Remote control
Security application
Radio Transceiver
Microprocessor clocks
The MCSO1's are supplied on trays (91 pcs / tray)
For pick-and-place equipment, the parts are
available in 16mm tapes with 250 parts min
1000 parts max
ELECTRICAL
CHARACTERISTICS AT +25°C
Frequency stability
Over temperature range
(see ordering info)
Including: adjustment at +25°C
long term aging 10 years
over supply voltage ±5%
over load min to max
Frequency stability version T
Over temperature range
(see ordering info)
Including: adjustment at +25°C
long term aging 1 year
over supply voltage ±5%
over load min to max
Supply voltage ± 5%
1)*
Version 1.2V avaible on request
Input current
Output signal
Symmetry at Vdd/2
Rise & fall time ≤ 20MHz
For F=32.768 kHz rise & fall time ≤ 150ns
(load 15pf 20% to 80%)
Rise & fall time ≥ 20MHz
(load 15pf 10% to 90%)
Level "0" & "1"
Start-up time
Load min / max
t
ΔF/F
≤ ± 100
1,6 1,16 1,6
2,2
ppm
ΔF/F
≤ ± 50
ppm
Vdd
Idd
1.8 / 2.5 / 3.3 / 5
see table 1
HC-MOS compatible
40 / 60
≤7
≤3
<0.4>Vdd-0.5
<5
3/47
V
%
ns
ns
V
ms
pF
* 1) C = 47nF ceramic must be connected between GND & Vdd
TAbLE 1: Idd
(Without load)
Frequency
W=Vdd = 2.5V
V=Vdd = 3.3V
blank=Vdd = 5V
F=32 kHz
< 300μA
< 1mA
< 2mA
F=< 10MHz
< 2mA
< 4mA
< 6mA
≤ 20MHz
< 3mA
< 5mA
< 7mA
>20 to
225MHz
< 25mA
< 30mA
< 40mA
STANDARD FREQUENCIES:
3.6864
16
4
20
8
24
Frequency «MHz»
10
40
12
48
12.8
120
14.7456
160
Other frequencies from 10 kHz up to 225 MHz on request
ENVIRONMENTAL
CHARACTERISTICS:
Storage temp. range
Vibration resistance (survival)
Shocks resistance (survival)
TERMINATIONS AND
PROCESSING:
Reflow soldering
Package
Lids (standard)
Lids (on request)
Terminations option T3 on request
E/D option 1 on request
Reaction time ˂ 1μs
-65 to +125°C
10 to 2000Hz / 50g
5000g / 0.3ms / ½ sine
+260°C / 10s max
Ceramic 8 x 4 x 2.2mm
Kovar
Ceramic
with tinned Ag/Cu/Sn
Pin 1 open → Pin 3 Clock
H →
Clock
L →
Low
- No power E/D function (pin 1) before Vdd is setting on
- E/D option on request (very low consumption in disable mode).
PRODUCT DESCRIPTION AND
ORDERING INFORMATION:
MCSO1
C H V T - C 20MHz
E/D T3 XXX
blank = Kovar lids
C
= Ceramic lids
H
˃ 20MHz
blank ≤ 20MHz
Z
W
V
blank
= Vdd 1.8V
= Vdd 2.5V
= Vdd 3.3V
= Vdd 5V
option 1 E/D
enable / disable
option 2
blank Au plated
T3 = tinned
T
= ±50ppm
blank = ±100ppm
A
B
C
X
= 0 to 70°C
= -40 to 85°C
= -55 to 125°C
= custom
customer
spec N°
Frequency
A unique part number will be generated for each product specification: i.e:
20xxxx-EA00
200xxx-ML00
xxx pcs
xxx pcs
(
in ESD plastic tray)
(
in tape & reel, any quantity)
All specifications subject to change without notice.
Micro Crystal AG
Mühlestrasse 14
CH-2540 Grenchen
Switzerland
Tel.
+41 32 655 82 82
Fax
+41 32 655 82 83
sales@microcrystal.com
www.microcrystal.com
Version 13/05.2017
