V8508B-L

Description
heatsink TO-220 19x12.8mm
CategoryThermal management products
File Size62KB，1 Pages
ManufacturerASSMANN WSW components
Environmental Compliance
Download Datasheet Parametric View All

V8508B-L Overview

heatsink TO-220 19x12.8mm

V8508B-L Parametric

Parameter NameAttribute value
Datasheets

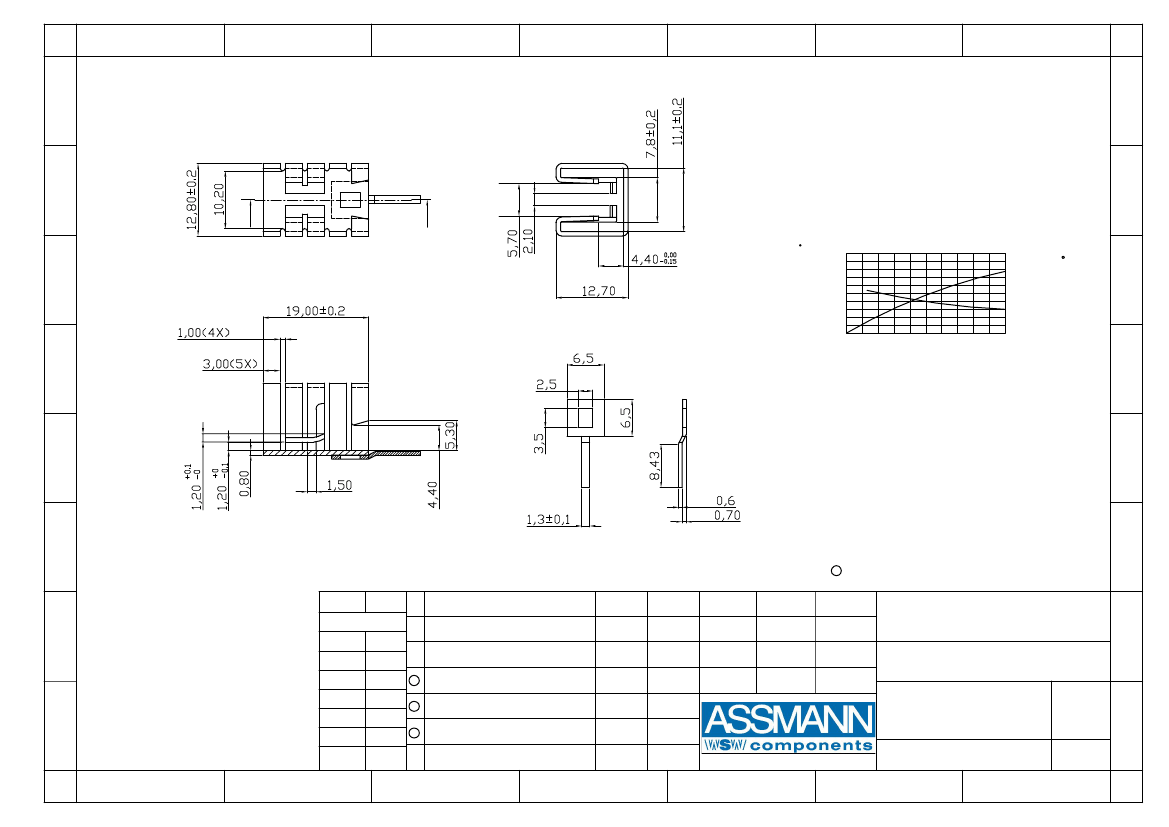

V8508B-L Drawing
Product Photos
V8508B-L
Product Training Modules
WSW Components Line of Board-Level Transistor Heat Sink Overview
Standard Package1,000
CategoryFans, Thermal Manageme
FamilyThermal - Heat Sinks
TypeBoard Level, Vertical
Package CooledTO-220
Attachment MethodPress Fit and PC Pi
ShapeRectangular, Fins
Length0.748" (19.00mm)
Width0.504" (12.80mm)
Diamete-
Height Off Base (Height of Fin)0.500" (12.70mm)
Power Dissipation @ Temperature Rise-
Thermal Resistance @ Forced Air Flow-
Thermal Resistance @ Natural21°C/W
MaterialAluminum
Material FinishBlack Anodized
Dynamic CatalogHeat Sinks
Other NamesA10763V8508BL

Preview

Download Datasheet
1
A
2
3
4
5
6
7
A
B
0
200
400
600
800 1000
THERMAL RESISTANCE FROM MTG
SURFACE TO AMBIENT- C/WATT
B
A
A
MOUNTING SURFACE TEMP
RISE ABOVE AMBIENT- C
AIR VELOCITY-FEET PER MINUTE
C
100
80
60
40
20
0
0
1
2
3
4
5
HEAT DISSIPATED-WATTS
20
16
12
8
4
0
C
D
D
+0
-0.15
E
SECTION AA
E
Notes
Material : AL 5052 T=0.8
±0.1
MM
Finished : Black Anodize
2
F
Scale
FREE
Drawn
Approved
2
Update
Update
Drawn
Modification
09.09.2011
29.06.2011
20.07.2006
Date
Schulz
Date
20.07.2006
09.09.2011
Thermal resistance
Weight
Customer-No.
: 21 K/W
: 0,001KG
F
Name
Storb
Andy
G
RoHS compliant
UNIT: mm
TOLERANCE
UNIT
±
0.5
G
ASSMANN WSW-No.
V8508B-L
DIM
TOL
Drawing-No.
1
0
Id.
Schulz
Storb
Replace
Name
H
1
2
X.°
X.X°
Angle
±
X°
±
X°
TOL
ASS 0555 HS
rev02
Sheet
H
3
4
5
6
7
