83947AYI-147T Overview

Clock Driver, 83947 Series, 9 True Output(s), 0 Inverted Output(s), PQFP32, 7 X 7 MM, 1.40 MM HEIGHT, MS-026, LQFP-32

83947AYI-147T Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	QFP
package instruction	LQFP, QFP32,.35SQ,32
Contacts	32
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	ALSO OPERATES AT 3.3V SUPPLY
series	83947
Input adjustment	MUX
JESD-30 code	S-PQFP-G32
JESD-609 code	e0
length	7 mm
Logic integrated circuit type	LOW SKEW CLOCK DRIVER
MaximumI(ol)	0.02 A
Humidity sensitivity level	3
Number of functions	1
Number of inverted outputs
Number of terminals	32
Actual output times	9
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	LQFP
Encapsulate equivalent code	QFP32,.35SQ,32
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE
Peak Reflow Temperature (Celsius)	240
power supply	3.3 V
Prop。Delay @ Nom-Sup	4.5 ns
propagation delay (tpd)	4.5 ns
Certification status	Not Qualified
Same Edge Skew-Max（tskwd）	0.13 ns
Maximum seat height	1.6 mm
Maximum supply voltage (Vsup)	2.625 V
Minimum supply voltage (Vsup)	2.375 V
Nominal supply voltage (Vsup)	2.5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	20
width	7 mm
minfmax	250 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

ICS83947I-147

KEW

, 1-

-9

LVCMOS/LVTTL F

ANOUT

UFFER

ENERAL

ESCRIPTION

The ICS83947I-147 is a low skew, 1-to-9 LVCMOS/LVTTL

Fanout Buffer. The low impedance LVCMOS/LVTTL outputs

are designed to drive 50Ω series or parallel terminated

transmission lines. The effective fanout can be increased from

9 to 18 by utilizing the ability of the outputs to drive two series

terminated lines.

Guaranteed output and part-to-part skew characteristics make

the ICS83947I-147 ideal for high performance, 3.3V or 2.5V

single ended applications.

EATURES

•

9 LVCMOS/LVTTL outputs

•

Selectable CLK0 and CLK1 can accept the following

input levels: LVCMOS and LVTTL

•

Maximum output frequency: 250MHz

•

Output skew: 115ps (maximum)

•

Part-to-part skew: 500ps (maximum)

•

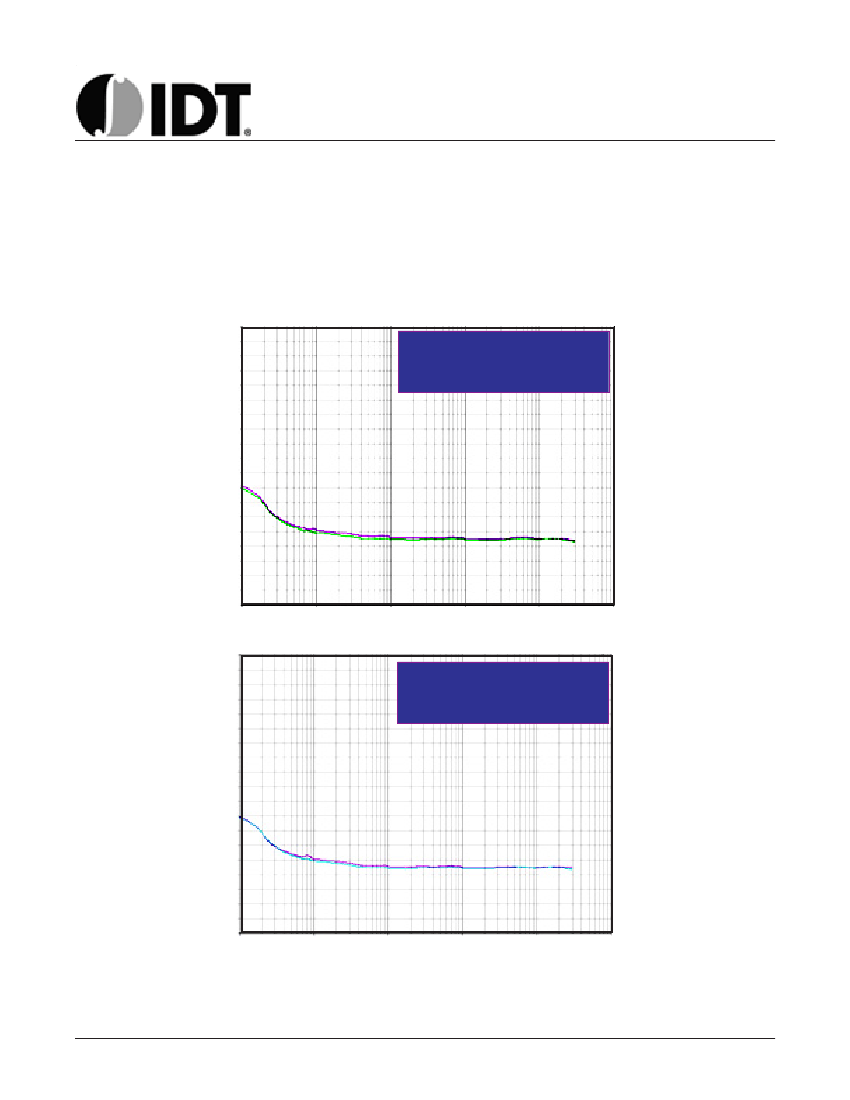

Additive phase jitter, RMS: 0.02ps (typical) @ 3.3V

•

Full 3.3V or 2.5V operating supply

•

-40°C to 85°C ambient operating temperature

LOCK

IAGRAM

CLK_EN

CLK0

CLK1

CLK_SEL

SSIGNMENT

GND

DDO

32 31 30 29 28 27 26 25

GND

CLK_SEL

CLK0

CLK1

CLK_EN

GND

9 10 11 12 13 14 15 16

GND

DDO

GND

DDO

GND

DDO

GND

DDO

GND

ICS83947I-147

32-Lead LQFP

7mm x 7mm x 1.4mm package body

Y Package

Top View

83947AYI-147

www.idt.com

REV. A AUGUST 12, 2010
